38225 (S-200) - Toro Snow Thrower (SN: 000000001 - 000299999) (1980) Engine Assembly Engine Tecumseh Model No. Ah520 Type 1585a Unit Model 38225 (used On Units With Serial No. 0000001 Thru 0299999) E Parts Diagram

Snow Thrower

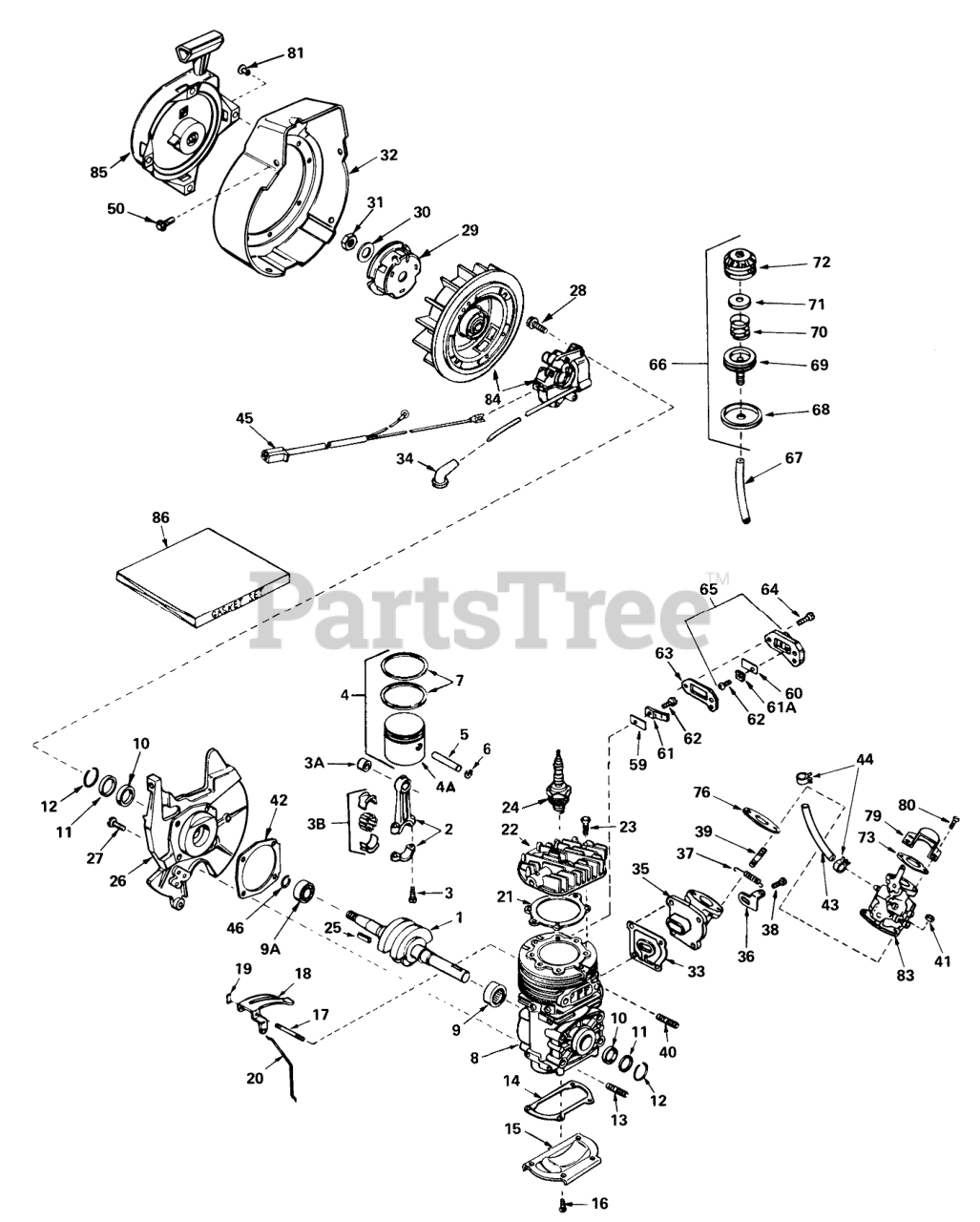

Engine Assembly Engine Tecumseh Model No. Ah520 Type 1585a Unit Model 38225 (used On Units With Serial No. 0000001 Thru 0299999) E Parts Diagram

  • Title

1

Toro 290489

Crankshaft

$

$

Currently unavailable

2

Toro 310244

Rod Assembly, Connecting (Incl. #3, 3A 3B)

$

$

Currently unavailable

3

Toro 650633

Bolt-Rod, Connecting

$

$

Currently unavailable

3A

Toro 530104A

Bearing-Cartridge

$

$

Currently unavailable

3B

Toro 530149

Bearing Liner Set Needle

$

$

Currently unavailable

4

Toro 310259

Piston, Pin Ring Assy. (Incl. Ref. #6 thru 9)

$

$

Currently unavailable

4A

Toro 310230B

Piston

$

$

Currently unavailable

5

Toro 310178

Pin, Piston

$

$

Currently unavailable

6

Toro 310167

Ring-Retaning

$

$

Currently unavailable

7

Toro 310190

Ring Set

$

$

Currently unavailable

8

Toro 250271B

Block Assy., Cylinder (Incl. Ref. #9, 10 thru 13, 17 40)

$

$

Currently unavailable

9

Toro 530105

Bearing-Cartridge

$

$

Currently unavailable

9A

Toro 530110

Bearing-Ball

$

$

Currently unavailable

10

Toro 510105

Seal, Crankshaft
(Superseded to 510195)

$

$

Not available

11

Toro 510106A

Retainer, Crankshaft Seal

$

$

Currently unavailable

12

Toro 510109A

Spring, Crankshaft Seal Retainer

$

$

Currently unavailable

13

Toro 650796

Stud

$

$

Currently unavailable

14

Toro 510270

Gasket, Cover

Note: Indicates items included in gasket set, part no. 510264D.

$

$

Currently unavailable

15

Toro 570370A

Plate, Cover

$

$

Currently unavailable

16

Toro 650579

Screw (T-25, 10-24 x 1/2)

$

$

Currently unavailable

17

Toro 490276

Shaft, Air Vane

$

$

Currently unavailable

18

Toro 490287

Vane Assy., Air

$

$

Currently unavailable

19

Toro 490278

Clip,Air Vane

$

$

Currently unavailable

20

Toro 490288

Link, Governor

$

$

Currently unavailable

21

Toro 510274

Gasket, Head

Note: Indicates items included in gasket set, part no. 510264D.

$

$

Currently unavailable

22

Toro 250240A

Head-Cylinder

$

$

Currently unavailable

23

Toro 650477

Screw (T-30, 1/4-20 x 3/4)

$

$

Currently unavailable

24

Toro 611005

Head Adjustment Knob

$

$

Not available

25

Toro 610961

Key-Flywheel

$

$

Currently unavailable

26

Toro 350390

Base Assembly, Shroud (Incl. Nos. 10, 11 12)(Type 1583)

$

$

Currently unavailable

26

Toro 350388

Base Assy., Housing (Incl. Nos. 29, 30 31)

$

$

Currently unavailable

27

Toro 650497

Screw

$

$

Currently unavailable

28

Toro 650747

Screw, Hex Washer Hd.

$

$

Currently unavailable

29

Toro 590416

Starter Cup

$

$

Currently unavailable

30

Toro 650763

Washer-Spring

$

$

Currently unavailable

31

Toro 650390

Nut-Flywheel

$

$

Currently unavailable

32

Toro 350392

Housing, Blower (Type 1583)

$

$

Currently unavailable

32

Toro 350391

Housing, Blower

$

$

Currently unavailable

33

Toro 510312

Gasket, Port

Note: Indicates items included in gasket set, part no. 510264D.

$

$

Currently unavailable

34

Toro 610118

Cover-Spark Plug

$

$

Currently unavailable

35

Toro 570627

Elbow Assy., Adapter

$

$

Currently unavailable

36

Toro 570626

Lever, Adjusting

$

$

Currently unavailable

37

Toro 490286

Spring, Adjusting Lever

$

$

Currently unavailable

38

Toro 650576

Screw

$

$

Currently unavailable

39

Toro 650700

Stud Carburetor

$

$

Currently unavailable

40

Toro 650801

Stud

$

$

Currently unavailable

41

Toro 650457

Locknut

$

$

Currently unavailable

42

Toro 510292

Gasket, Shroud Base

Note: Indicates items included in gasket set, part no. 510264D.

$

$

Currently unavailable

43

Toro 30705

Line-Fuel

$

$

Currently unavailable

44

Toro 26460

Clamp-Line, Fuel

$

$

Currently unavailable

45

Toro 610999

Harness, Wire

$

$

Not available

46

Toro 570630

Ring, Retaining

$

$

Currently unavailable

50

Toro 650356

Screw-Hex, Hd.

$

$

Currently unavailable

59

Toro 470136

Reed, Compression Release

$

$

Currently unavailable

60

Toro 470135

Reed, Compression Release

$

$

Currently unavailable

61

Toro 470151

Plate, Reed Hold Down

$

$

Currently unavailable

61A

Toro 470137

Plate, Reed Hold Down

$

$

Currently unavailable

62

Toro 650654

Screw

$

$

Currently unavailable

63

Toro 510263

Gasket, Compression Release

Note: Indicates items included in gasket set, part no. 510264D.

$

$

Currently unavailable

64

Toro 650576

Screw

$

$

Currently unavailable

65

Toro 570437A

Cover Assy., Compression release (Incl. Nos. 60, 61A 62)

$

$

Currently unavailable

66

Toro 570629A

Primer Assy.

$

$

Currently unavailable

67

Toro 32180B

Line, Primer

$

$

Currently unavailable

68

Toro 32312

Retainer, Primer Bulb

$

$

Currently unavailable

69

Toro 32184

Body, Primer

$

$

Currently unavailable

70

Toro 570443

Spring, Primer Bulb

$

$

Currently unavailable

71

Toro 570444

Washer, Primer Bulb

$

$

Currently unavailable

72

Toro 570442A

Bulb-Primer

$

$

Currently unavailable

73

Toro 510206

Gasket

$

$

Currently unavailable

76

Toro 510213

Gasket, Carburetor

Note: Indicates items included in gasket set, part no. 510264D.

$

$

Currently unavailable

79

Toro 570434

Baffle-Carburetor

$

$

Currently unavailable

80

Toro 650229

Screw

$

$

Currently unavailable

81

Rivet, Pop (3/16" dia.)(Can be purchased locally)

$

$

Not available

83

Toro 632101

Carburetor (Incl. Ref. #76)

$

$

Currently unavailable

84

Toro 610772A

Magneto

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually, as shown in parts list. (Type 1583-A)

$

$

Currently unavailable

84

Toro 610794A

Magneto

Note: The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually, as shown in parts list. (Type 1585-A)

$

$

Currently unavailable

85

Toro 590537

Starter-Rewind

$

$

Currently unavailable

86

Toro 510264D

Gasket Set (Incl. items marked *)

$

$

Currently unavailable
