38225 (S-200) - Toro Snow Thrower (SN: 000000001 - 000299999) (1980) Carburetor No. 631887 Engine Model Ah520 Type 1585b Unit Model 38225 (used On Units With Serial Parts Diagram

Snow Thrower

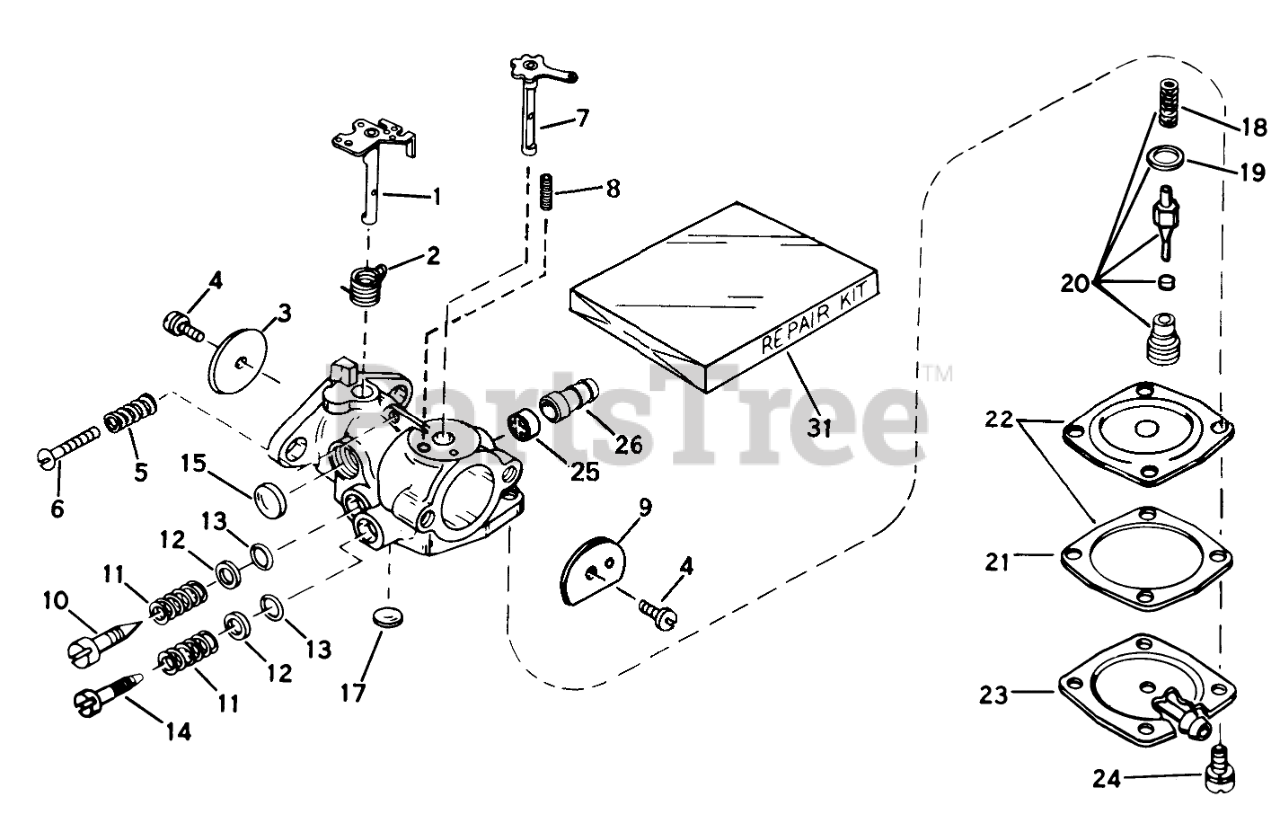

Carburetor No. 631887 Engine Model Ah520 Type 1585b Unit Model 38225 (used On Units With Serial Parts Diagram

  • Title
1

Toro 631868

Shaft Lever Assy., Throttle

$

$

Currently unavailable

2

Toro 631066

Spring Return

$

$

Currently unavailable

3

Toro 631036

Shutter-Throttle

$

$

Currently unavailable

4

Toro 650506

Screw-Shutter

$

$

Currently unavailable

5

Toro 630766

Spring-Tension

$

$

Currently unavailable

6

Toro 650417

Screw-Throttle Crack Screw / Idle Speed

$

$

Currently unavailable

7

Toro 631888

Shaft Lever Assembly

$

$

Currently unavailable

8

Toro 630735

Spring-Positioning, Choke

$

$

Currently unavailable

9

Toro 31837

DISCONTINUED

$

$

Not available

10

Toro 631562

Screw-Idle Adjustment

$

$

Currently unavailable

11

Toro 630738

Spring

$

$

Currently unavailable

12

Toro 630739

Washer

$

$

Currently unavailable

13

Toro 630740

ORing

Note: Indicates items included in repair kit, part no. 631893.

$

$

Currently unavailable

14

Toro 630898

Screw Main Adjustment

$

$

Currently unavailable

15

Toro 630748

Plug-Welch, Idle Mixture Well

Note: Indicates items included in repair kit, part no. 631893.

$

$

Currently unavailable

17

Toro 630746

Plug Welch

Note: Indicates items included in repair kit, part no. 631893.

$

$

Currently unavailable

18

Toro 631049

Spring-Valve

$

$

Currently unavailable

19

Toro 630742

Gasket-Valve Seat

$

$

Currently unavailable

20

Toro 630932A

Inlet Needle, Seat, Spring Gasket Assy. (lncl. #1819)

Note: Indicates items included in repair kit, part no. 631893.

$

$

Currently unavailable

21

Toro 630750

Gasket-Diaphragm

$

$

Currently unavailable

22

Toro 630978

Diaphragm Ass. (Incl. No. 21)

Note: Indicates items included in repair kit, part no. 631893.

$

$

Currently unavailable

23

Toro 631653

Cover, Diaphragm

$

$

Currently unavailable

24

Toro 650545

Screw, Diaphragm Cover

$

$

Currently unavailable

25

Toro 631201

Valve Check

$

$

Currently unavailable

26

Toro 631803

Fuel Fitting

$

$

Currently unavailable

31

Toro 631893

Kit-Repair

$

$

Currently unavailable
