38222 - Gravely Grass Bagger for Pro Series Mower GRASS CATCHER Parts Diagram

Grass Bagger for Pro Series Mower

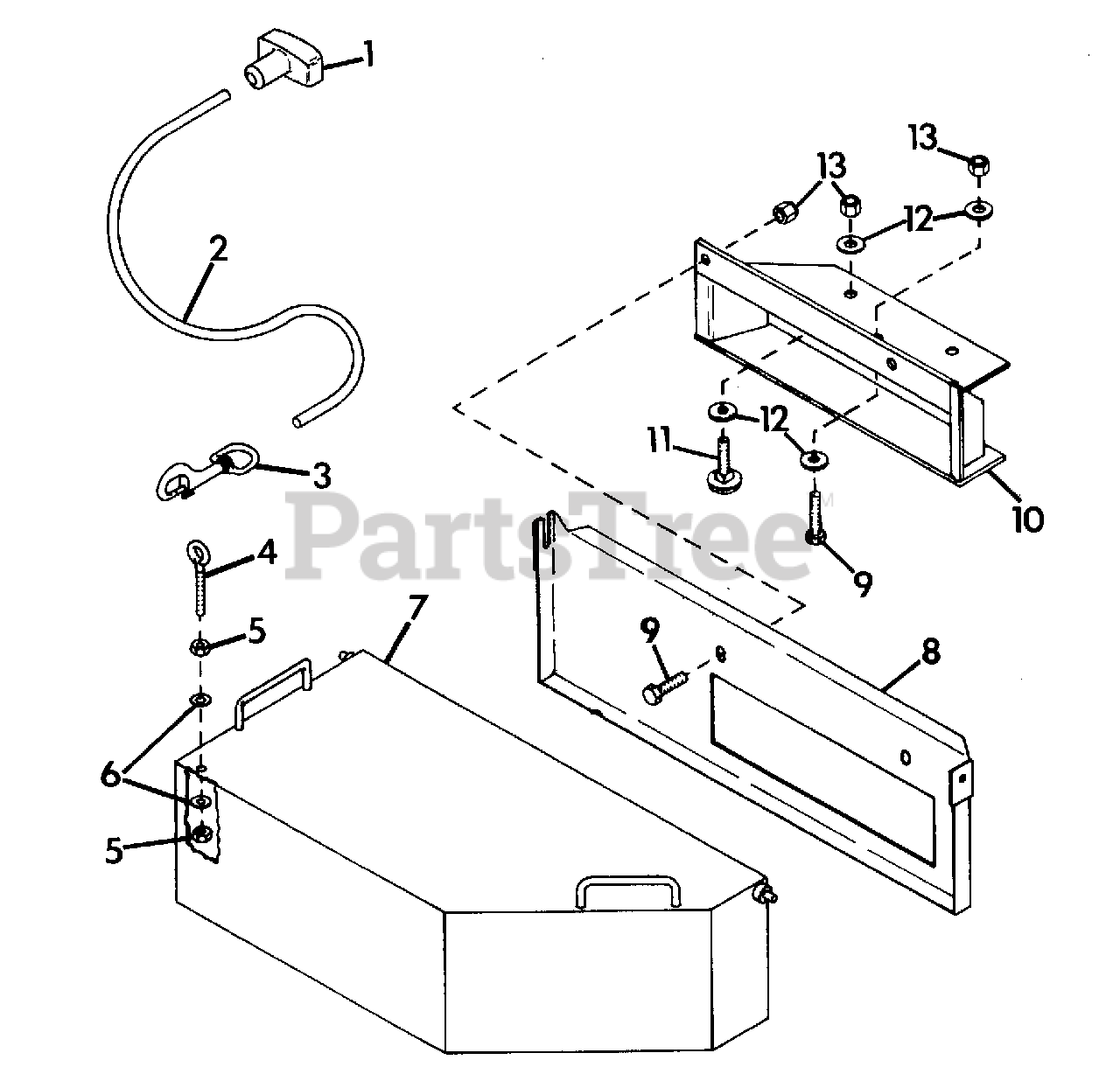

GRASS CATCHER Parts Diagram

  • Title
1

Gravely 022276

HANDLE
(Superseded to 07521300)

$

$

Not available

2

Gravely 019212

ROPE, #6 66"
(Superseded to 07520400)

$

$

Not available

3

Gravely 035095

SNAP, SWIVEL

$

$

Not available

4

Gravely 035094

BOLT, EYE
(Superseded to 07014800)

$

$

Not available

5

Gravely 120376

NUT, HEX 5/16-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

6

Gravely 120386

WASHER, FLAT .312X.734X.065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 034980

WELDMENT, GRASS CATCHER
(Superseded to 08804900)

$

$

Not available

8

Gravely 038221

WELDMENT, SUPPORT FRAME
(Superseded to 08807700)

$

$

Not available

9

Gravely 180122

BOLT, HEX 3/8-16X1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 038218

WELDMENT, CHUTE ADAPTOR
(Superseded to 08807453)

$51.99

$

Usually ships in 4-12 days

0

11

Gravely 120915

BOLT, 3/8-16X1.00 RD HD SQ NK

$

$

Not available

12

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0
