38210 (S-140) - Toro Snow Thrower (SN: 000000001 - 000999999) (1980) LOWER MAIN FRAME Parts Diagram

Snow Thrower

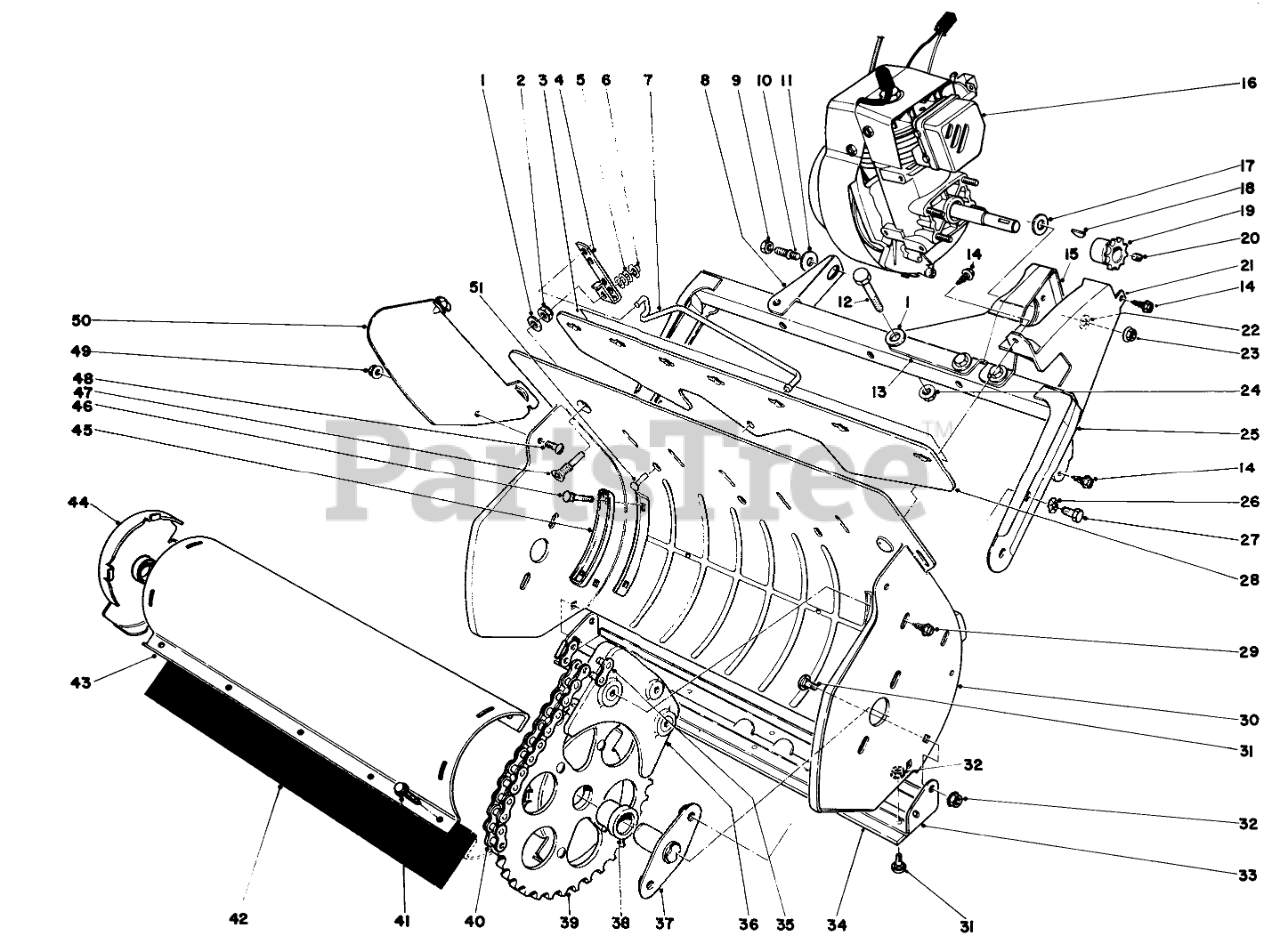

LOWER MAIN FRAME Parts Diagram

  • Title

1

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

2

Toro 329647

Locknut

$

$

Currently unavailable

3

Toro 37-7800

Decal-Warning

$

$

Not available

4

Toro 28-7870

Bracket Vane Adjustment

$

$

Not available

5

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 3290-337

NUT-SPEED

$1.49

$

In Stock, Qty 20+

0

7

Toro 11-5410

Linkage Vane Adj.

$

$

Not available

8

Toro 39-2330

Frame Bracket

$

$

Not available

9

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 20+

0

10

Toro 38-8710

STUD

$

$

Not available

11

Toro 7-3315

GRILLE HINGE SPACER

$

$

Not available

12

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Toro 29-5710

Engine Bracket Internal

$

$

Not available

14

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

15

Toro 29-5720

Engine Bracket External

$

$

Not available

16

Toro 221-626

Engine

$

$

Currently unavailable

17

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

18

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, only 4 left!

0

19

Toro 3-9464

SPROCKET

$

$

Not available

20

Toro 3245-32

SCREW-HSH

$5.49

$

In Stock, only 3 left!

0

21

Toro 29-5780

Chain Guard

$

$

Not available

22

Toro 3255-18

Lockwasher

$

$

Not available

23

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

24

Toro 32128-10

NUT-LOCK, HHF

$0.99

$

In Stock, Qty 20+

0

25

Toro 29-5850

Frame

$

$

Not available

26

Toro 3290-257

Washer

$

$

Not available

27

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

28

Toro 8-6659

Vane Mount (Incl. Ref. #3)

$

$

Not available

29

Toro 32144-34

SCREW-HWHTF

$4.99

$

In Stock, Qty 20+

0

30

Toro 29-7740

Housing

$

$

Not available

31

Toro 3229-10

SCREW-CARR

$1.49

$

In Stock, only 4 left!

0

32

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

33

Toro 37-1200

Scraper Assembly (Incl. Ref. #31-32 & 34)

$

$

Not available

34

Toro 37-0340

SCRAPER

$47.99

$

Usually ships in 3-6 days

0

35

Toro 2710-31

LINK-CONNECTING, NO. 35

$2.49

$

In Stock, only 1 left!

0

36

Toro 5-0997

Stripper

$

$

Not available

37

Toro 27-9710

ROTOR SHAFT ASM

$

$

Not available

38

Toro 11-6160

ROTOR BUSHING

$

$

Not available

39

Toro 11-6080

End Cap Assembly L.H. (Incl. Ref. #38)
(Superseded to 39-4080)

$

$

Not available

40

Toro 29-5740

ROLLER CHAIN

$

$

Not available

41

Toro 37-0370

Screw
(Superseded to 32144-9)

$5.49

$

In Stock, only 2 left!

0

42

Toro 11-6130

ROTOR BLADE
(Superseded to 2412-91)

$3.99

$

In Stock, only 2 left!

0

43

Toro 11-6110

ROTOR SHELL

$

$

Not available

44

Toro 11-6090

End Cap Assembly R.H. (Incl. Ref. #38)
(Superseded to 39-4060)

$

$

Not available

45

Toro 3-7498

Handle Plate

$

$

Not available

46

Toro 3229-4

SCREW-CARR

$1.49

$

In Stock, only 2 left!

0

47

Toro 3-7511

Screw

$

$

Not available

48

Toro 32122-30

SCREW-PTH

$1.49

$

In Stock, Qty 17

0

49

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 17

0

50

Toro 39-1540

Vane
(Superseded to 52-7060)

$10.99

$

In Stock, Qty 20+

0

51

Toro 3290-325

Pop Pivot
(Superseded to 3290-412)

$3.49

$

In Stock, only 4 left!

0

Toro 8-6319

Loose Parts Assembly

Note: Not illustrated

$

$

Currently unavailable

Toro 25-9150

REPLACEMNT SERIAL PLT

Note: Not illustrated

$19.99

$

Usually ships in 3-6 days

0
