38196 (CCR 1000) - Toro Snow Thrower (SN: 020000001 - 029999999) (1992) UPPER SHROUD ASSEMBLY Parts Diagram

Snow Thrower

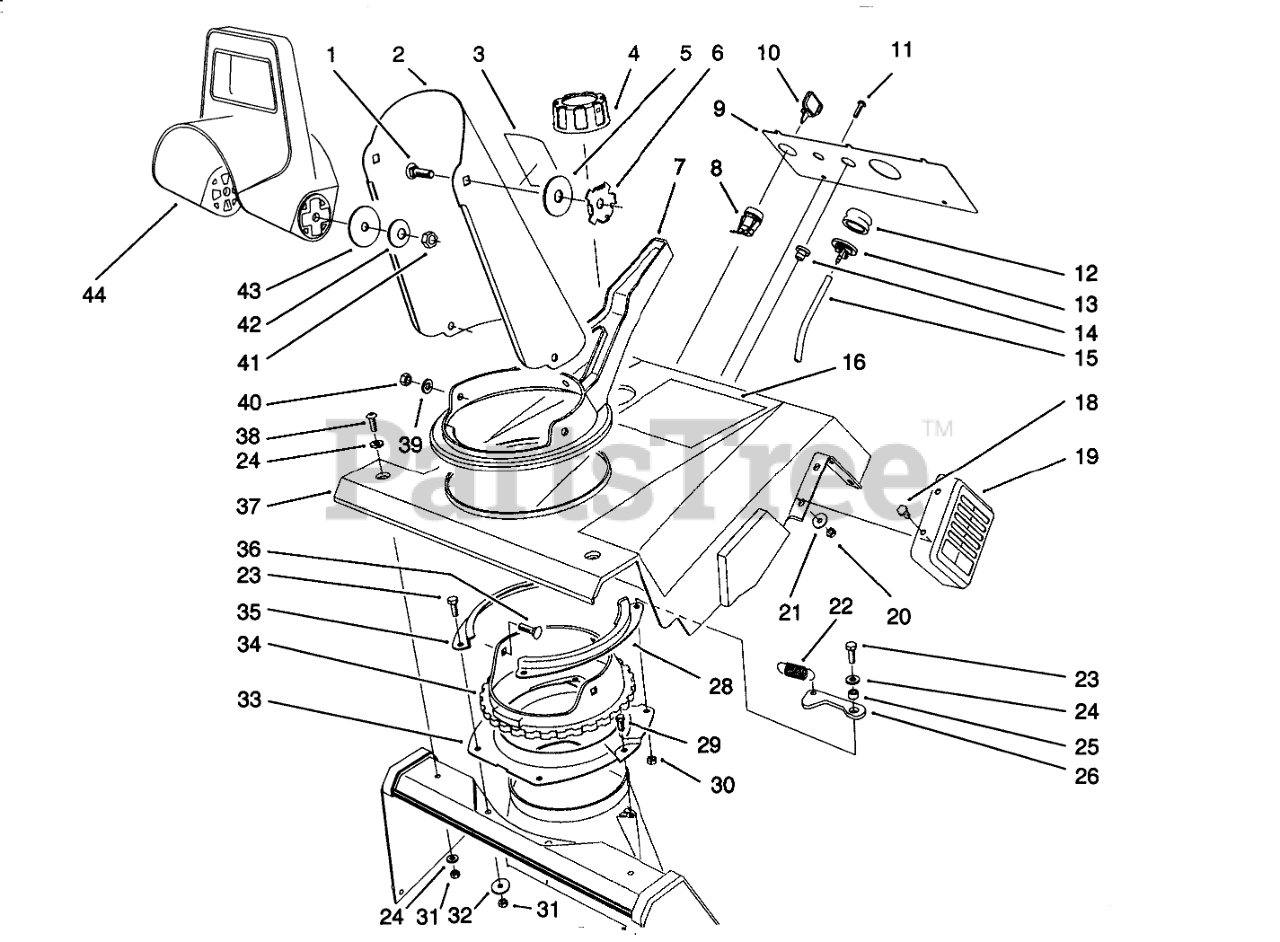

UPPER SHROUD ASSEMBLY Parts Diagram

  • Title

1

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, only 2 left!

0

2

Toro 13-7979

Discharge Chute Assembly (Incl. Ref. #3) (Model No. 38195)
(Superseded to 94-2793)

$

$

Not available

Toro 14-6119

Discharge Chute Assembly (Incl. Ref. #3) (Model No. 38196)
(Superseded to 104-4115)

$59.99

$

In Stock, only 1 left!

0

3

Toro 63-3760

DECAL-DANGER DISCH.
(Superseded to 94-2558)

$42.99

$

In Stock, only 1 left!

0

Toro 53-7660

Decal-Danger
(Superseded to 94-2558)

$42.99

$

In Stock, only 1 left!

0

4

Toro 55-3573

CAP-FUEL ASM
(Superseded to 104-4133)

$14.99

$

In Stock, only 1 left!

0

5

Toro 20-4320

WASHER-RUBBER

$0.99

$

In Stock, Qty 8

0

6

Toro 55-8950

PLATE-FRICTION

$8.49

$

Usually ships in 3-6 days

0

7

Toro 71-4940

CHUTE - HANDLE

$

$

Not available

8

Toro 40-5940

SWITCH

$15.99

$

In Stock, only 1 left!

0

9

Toro 71-5140

CNTRL PANEL/SILK SCREEN

$

$

Not available

Toro 77-5040

CNTRL PANEL/SILK SCREEN

$35.99

$

Usually ships in 3-6 days

0

10

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

11

Toro 32144-53

SCREW-SHWH, THREAD FORMING

$3.49

$

In Stock, Qty 10

0

12

Toro 66-7460

BULB-PRIMER

$6.49

$

In Stock, Qty 20+

0

13

Toro 44-2750

BODY-PRIMER

$8.99

$

In Stock, Qty 20+

0

14

Toro 23-7470

GUIDE-ROPE, STARTER

$20.99

$

Usually ships in 3-6 days

0

15

Toro 44-3173

HOSE-PRIMER

$4.99

$

In Stock, only 1 left!

0

16

Toro 77-5210

DECAL - CCR 1000E

$

$

Not available

18

Toro 3290-359

SCREW-HWH

$7.49

$

Usually ships in 3-6 days

0

19

Toro 71-5340

Guard-Muffler
(Superseded to 71-5340-03)

$18.99

$

Usually ships in 3-6 days

0

20

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

21

Toro 3256-61

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

22

Toro 80-4600

SPRING-EXTENSION

$7.49

$

In Stock, Qty 9

0

23

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

24

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 55-9370

SPACER-BLADE, ROTOR

$2.99

$

In Stock, Qty 20+

0

26

Toro 80-4610

DETENT

$11.99

$

In Stock, Qty 10

0

28

Toro 71-4980

Retainer-Chute Ring
(Superseded to 71-4980-03)

$

$

Not available

29

Toro 46-8092

SCREW-PLASTITE
(Superseded to 137-3101)

$1.49

$

In Stock, Qty 7

0

30

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

31

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

32

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

33

Toro 55-8921

Ring-Chute Support
(Superseded to 55-8921-03)

$24.99

$

In Stock, Qty 9

0

34

Toro 71-4950

GEAR RING, CHUTE

$

$

Not available

35

Toro 71-4990

Retainer-Chute Ring
(Superseded to 71-4990-03)

$

$

Not available

36

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

37

Toro 80-4810

UPPER SHROUD
(Superseded to 80-4811)

$299.99

$

Usually ships in 3-6 days

0

38

Toro 3250-32

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

39

Toro 3256-70

WASHER-FLAT

$1.49

$

In Stock, Qty 16

0

40

Toro 32149-1

NUT-KEPS

$5.99

$

In Stock, Qty 9

0

41

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

42

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

43

Toro 3256-68

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

44

Toro 56-2680

CHUTE-DEFLECTOR

$22.99

$

Usually ships in 3-6 days

0
