38195 (CCR 1000) - Toro Snow Thrower (SN: 010000001 - 019999999) (1991) STARTER MOTOR ASSEMBLY Parts Diagram

Snow Thrower

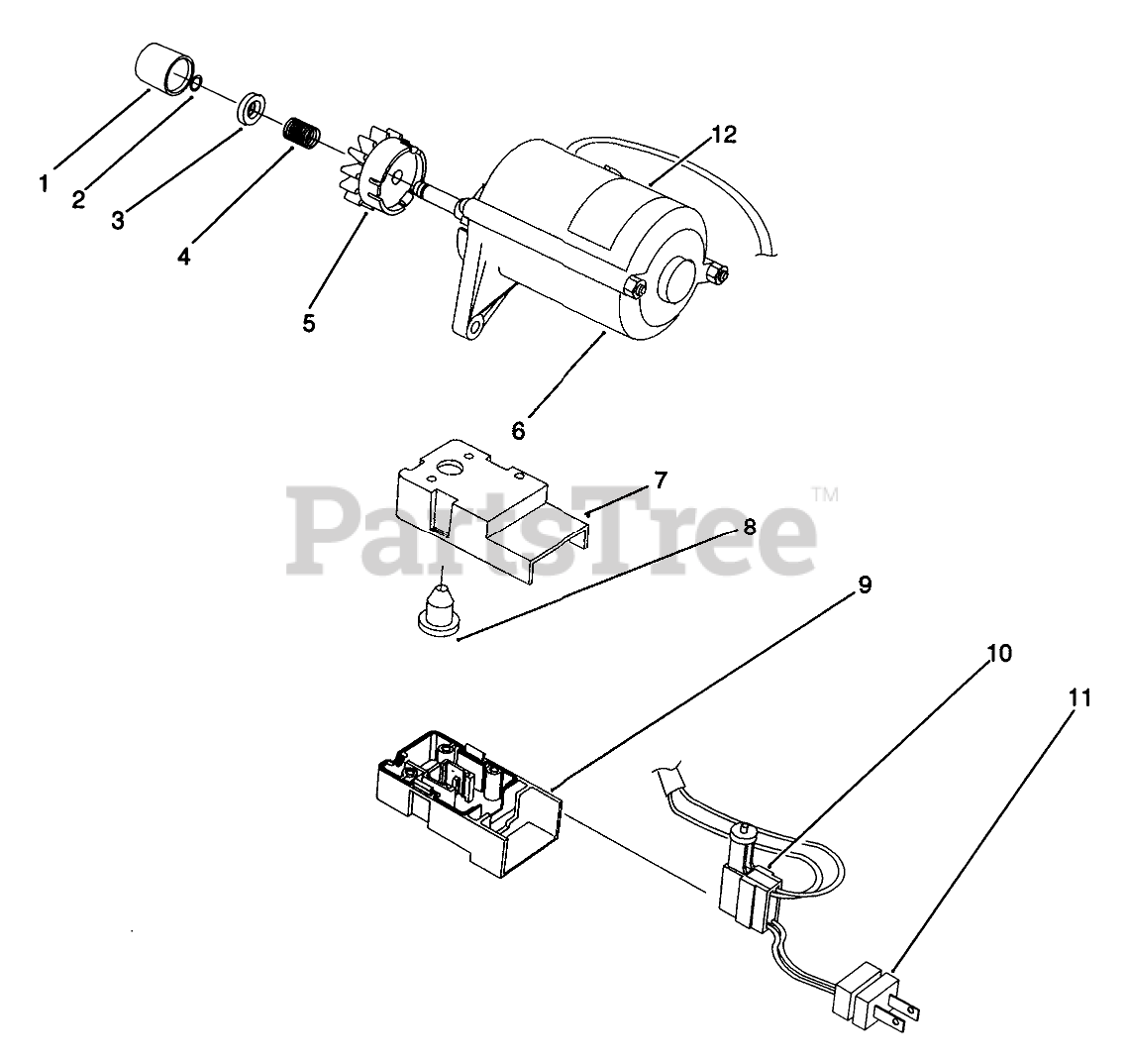

STARTER MOTOR ASSEMBLY Parts Diagram

  • Title
1

Toro 70-7890

CAP-PINION

$2.99

$

In Stock, only 1 left!

0

2

Toro 61-4680

RING-LOCK

$1.99

$

In Stock, Qty 20+

0

3

Toro 61-4670

PINION STOP

$14.99

$

In Stock, only 4 left!

0

4

Toro 61-4690

SPRING

$

$

Not available

5

Toro 80-4710

Pinion Assembly
(Superseded to 84-5240)

$

$

Not available

6

Toro 70-7800

Starter Motor Assembly

$

$

Not available

7

Toro 80-3740

Cap-Switch Housing
(Superseded to 100-3442)

$12.99

$

Usually ships in 3-6 days

0

8

Toro 36-8350

BOOT-SWITCH

$10.99

$

In Stock, Qty 6

0

9

Toro 80-3730

OBS BASE X
(Superseded to 98-2253)

$

$

Not available

10

Toro 36-8340

SWITCH-STARTER

$29.99

$

In Stock, only 4 left!

0

11

Toro 36-8370

Plug
(Superseded to 94-9933)

$7.99

$

In Stock, only 1 left!

0

12

Toro 77-0410

Decal-UL

$

$

Not available

Toro 77-0401

Starter Motor & Housing Assembly (Incl.Ref. #1-12)
(Superseded to 105-2953)

$

$

Not available
