38195 (CCR 1000) - Toro Snow Thrower (SN: 010000001 - 019999999) (1991) ENGINE TECUMSEH MODEL NO. HSK600 TYPE 1660-N Parts Diagram

Snow Thrower

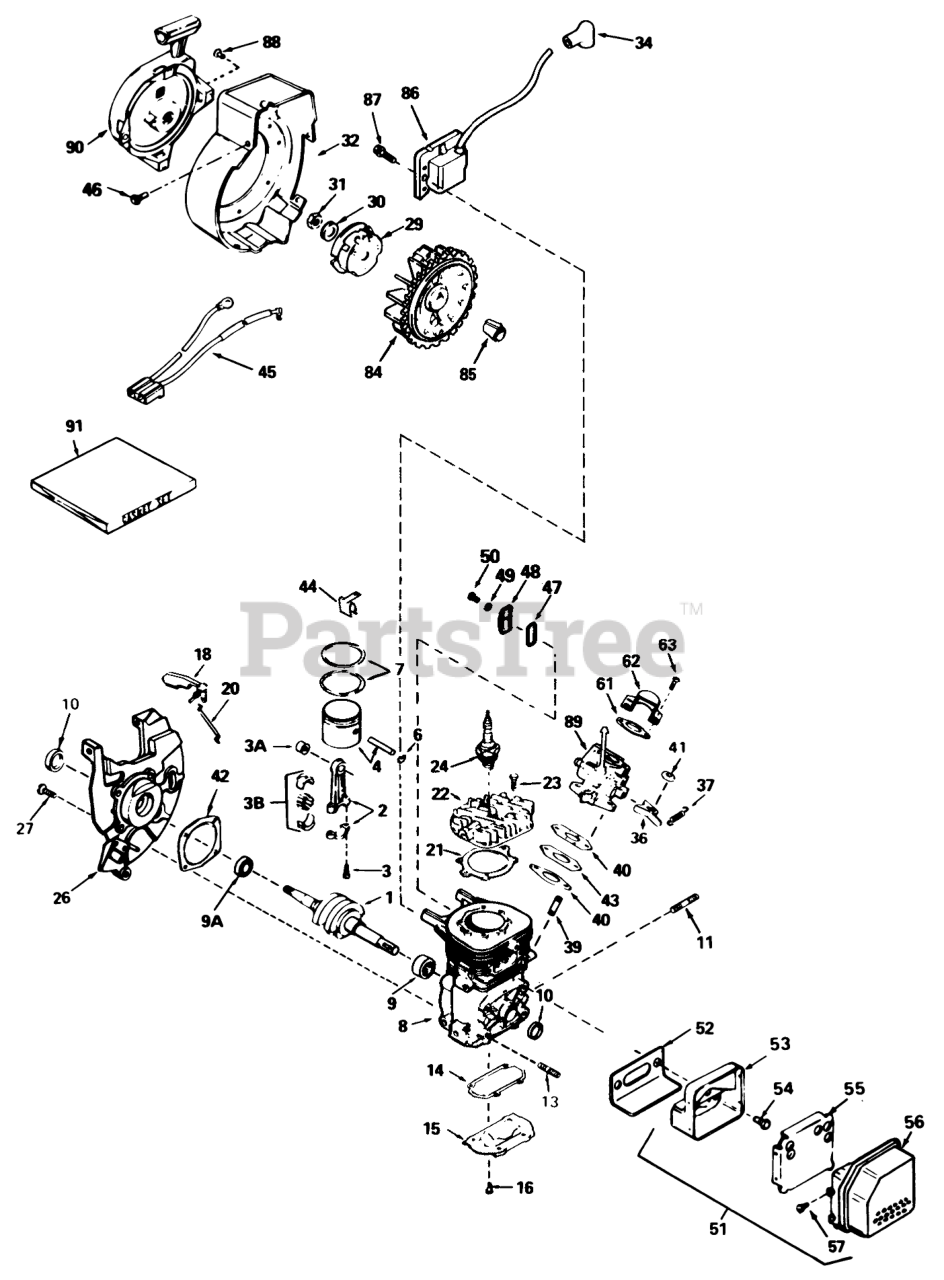

ENGINE TECUMSEH MODEL NO. HSK600 TYPE 1660-N Parts Diagram

  • Title

1

Tecumseh 290602

Crankshaft

$

$

Not available

2

Tecumseh 310235B

Connecting Rod Assembly (Incl. Ref. #3, 3A & 3B)
(Superseded to 310235C)

$106.99

$

Usually ships in 3-12 days

0

3

Tecumseh 650633

Bolt-Rod, Connecting

$1.99

$

In Stock, only 2 left!

0

3A

Tecumseh 530104A

Bearing-Cartridge

$15.99

$

Usually ships in 3-12 days

0

3B

Tecumseh 530150

Needle Bearing and Liner Set (37 Needles)
(Superseded to 530150A)

$36.99

$

Usually ships in 3-12 days

0

4

Tecumseh 310283A

Piston & Pin Assembly (Incl. Ref. #6)

$33.99

$

Usually ships in 3-12 days

0

6

Tecumseh 310167

Ring-Retaning

$1.99

$

Usually ships in 3-12 days

0

7

Tecumseh 310190

Ring Set
(Superseded to 310289A)

$14.99

$

Usually ships in 3-12 days

0

8

Cylinder Block Assembly

$

$

Not available

9

Tecumseh 530105

Bearing-Cartridge

$11.99

$

Usually ships in 3-12 days

0

9A

Tecumseh 530110

Bearing-Ball

$30.99

$

Usually ships in 3-12 days

0

10

Tecumseh 510319

Seal-Oil

$7.49

$

In Stock, Qty 8

0

11

Tecumseh 650883

Stud

$

$

Not available

13

Tecumseh 650796

Stud

$1.99

$

In Stock, only 4 left!

0

14

Tecumseh 510323

Cover
(Superseded to 510323A)

$6.99

$

In Stock, only 1 left!

0

15

Tecumseh 570644

Plate-Cover

$7.49

$

In Stock, only 1 left!

0

16

Tecumseh 650579

Screw (T-25, 10-24 x 1/2)

$1.99

$

Usually ships in 3-12 days

0

18

Tecumseh 490291A

Vane-Air

$3.99

$

In Stock, Qty 5

0

20

Tecumseh 490294

Link-Governor

$1.99

$

Usually ships in 3-12 days

0

21

Tecumseh 510274A

Gasket-Head, Cylinder

$1.99

$

In Stock, only 4 left!

0

22

Tecumseh 250240A

Head-Cylinder
(Superseded to 250240B)

$35.99

$

Usually ships in 3-12 days

0

23

Tecumseh 650477

Screw (T-30, 1/4-20 x 3/4)

$1.99

$

In Stock, Qty 20+

0

24

Tecumseh 611049

Spark Plug-Resistor (R C J 8Y)

$4.99

$

In Stock, Qty 20+

0

26

Tecumseh 350410

Blower Housing Base Assy. (Incl. Ref. #10)

$

$

Currently unavailable

27

Tecumseh 650911

Screw (T-30, 1/4-20 x 5/8)

$1.99

$

Usually ships in 3-12 days

0

29

Tecumseh 590551

Cup-Starter
(Superseded to 590551A)

$10.99

$

Usually ships in 3-12 days

0

30

Tecumseh 650815

Washer-Belleville

$1.99

$

In Stock, Qty 10

0

31

Tecumseh 650390

Nut-Flywheel

$1.99

$

In Stock, only 3 left!

0

32

Tecumseh 350399

Housing-Blower

$

$

Not available

34

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, only 3 left!

0

36

Tecumseh 570645

Lever-Adjusting, Rpm

$

$

Not available

37

Tecumseh 570646

Spring-Governor

$1.99

$

In Stock, Qty 5

0

39

Tecumseh 650527

Stud

$

$

Not available

40

Tecumseh 510326A

Gasket-Carburetor

$1.49

$

In Stock, only 3 left!

0

41

Tecumseh 650457

Locknut
(Superseded to 29752)

$1.99

$

In Stock, only 3 left!

0

42

Tecumseh 510292A

Gasket-Cover, Cylinder

$3.99

$

Usually ships in 3-12 days

0

43

Tecumseh 570438A

Spacer

$3.99

$

In Stock, only 1 left!

0

44

Tecumseh 29443

Clip-Wire

$1.99

$

In Stock, Qty 5

0

45

Tecumseh 611153

Harness-Wire

$

$

Not available

46

Tecumseh 650356

Screw-Hex, Hd.

$1.99

$

Usually ships in 3-12 days

0

47

Tecumseh 510325A

Cover-Compression, Release

$1.99

$

In Stock, Qty 5

0

48

Tecumseh 570647

Comp. Release Cover

$5.49

$

Usually ships in 3-12 days

0

49

Tecumseh 650838

Washer

$

$

Not available

50

Tecumseh 650579

Screw (T-25, 10-24 x 1/2)

$1.99

$

Usually ships in 3-12 days

0

51

Tecumseh 390263B

Muffler Assembly (Incl. Ref. #53-57)
(Superseded to 390330)

$

$

Not available

52

Tecumseh 510346

Gasket-Exhaust
(Superseded to 510346A)

$7.49

$

In Stock, only 1 left!

0

53

Tecumseh 390292

Base-Muffler
(Superseded to 390292A)

$

$

Currently unavailable

54

Tecumseh 650911

Screw (T-30, 1/4-20 x 5/8)

$1.99

$

Usually ships in 3-12 days

0

55

Tecumseh 390272

Baffle-Muffler

$

$

Currently unavailable

56

Tecumseh 390267

Cover Muffler
(Superseded to 390330)

$

$

Not available

57

Tecumseh 650578

Screw

$1.99

$

In Stock, only 2 left!

0

61

Tecumseh 510206A

Gasket
(Superseded to 35815)

$1.49

$

In Stock, Qty 20+

0

62

Tecumseh 570434

Baffle-Carburetor

$10.99

$

Usually ships in 3-12 days

0

63

Tecumseh 650229

Screw

$1.99

$

Usually ships in 3-12 days

0

84

Tecumseh 611050

Flywheel

$64.99

$

Usually ships in 3-12 days

0

85

Tecumseh 611032

Blade (20 inch)

$8.49

$

Usually ships in 3-12 days

0

86

Tecumseh 34443A

Solid State
(Superseded to 34443D)

$44.99

$

Usually ships in 3-12 days

0

87

Tecumseh 650814

Screw
(Superseded to 651007)

$1.99

$

In Stock, only 4 left!

0

88

Rivet-Pop

$

$

Not available

89

Tecumseh 632552

Carburetor Assembly (Incl. Ref. #40)
(Superseded to 640086A)

$106.99

$

In Stock, only 1 left!

0

90

Tecumseh 590537

Starter-Rewind
(Superseded to 590706)

$68.99

$

In Stock, only 1 left!

0

91

Toro 51034B

Gasket Set

$

$

Currently unavailable
