38195 (CCR 1000) - Toro Snow Thrower (SN: 010000001 - 019999999) (1991) CARBURETOR NO. 632552 Parts Diagram

Snow Thrower

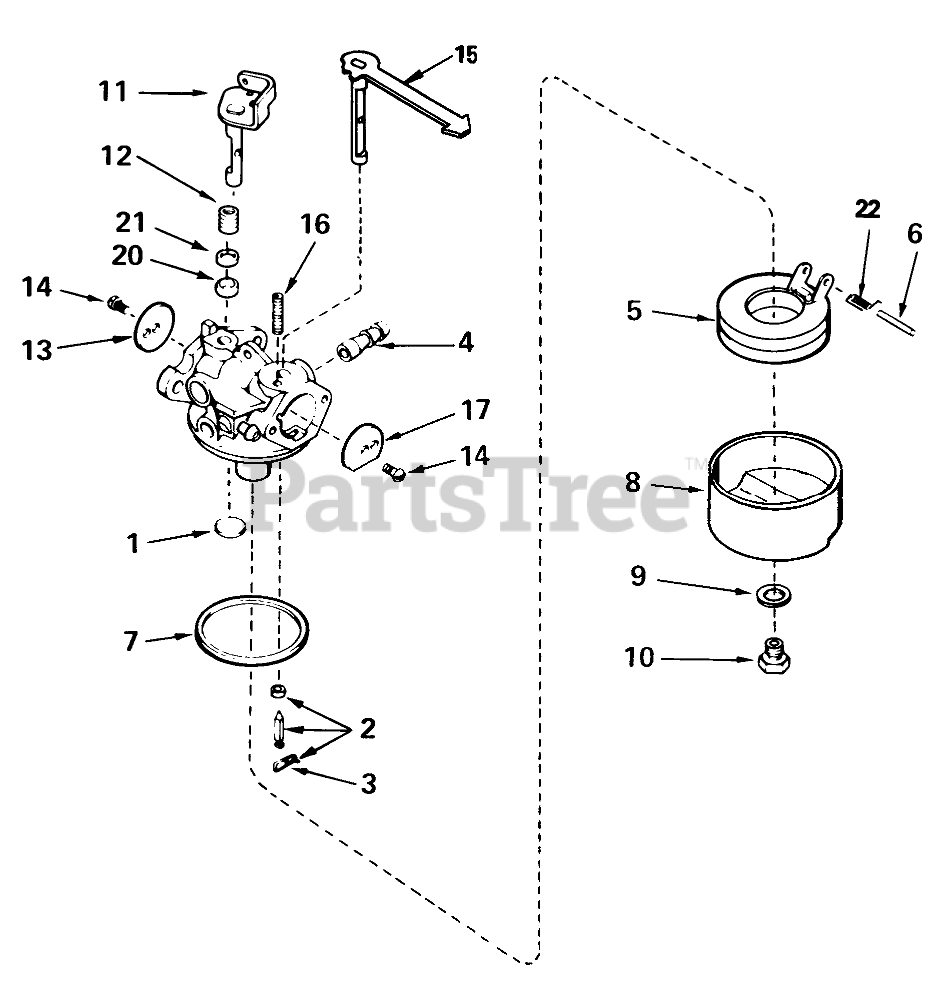

CARBURETOR NO. 632552 Parts Diagram

  • Title

1

Tecumseh 631027

Plug-Welch, Atmospheric Vent

$1.99

$

In Stock, only 1 left!

0

2

Tecumseh 631021

Inlet Needle, Seat & Clip (Incl. Ref. #3)
(Superseded to 631021B)

$6.99

$

In Stock, only 4 left!

0

3

Tecumseh 631022

Clip-Spring

$1.99

$

In Stock, only 4 left!

0

4

Tecumseh 632164

Fitting-Fuel

$3.99

$

In Stock, only 1 left!

0

5

Tecumseh 632019

Float
(Superseded to 632019A)

$7.49

$

In Stock, Qty 10

0

6

Tecumseh 631024

Shaft-Float

$1.99

$

In Stock, Qty 11

0

7

Tecumseh 631028

O Ring-Bowl, Float
(Superseded to 631028A)

$2.49

$

In Stock, Qty 12

0

8

Tecumseh 631700

Bowl Float

$7.49

$

In Stock, Qty 6

0

9

Tecumseh 631334

Gasket-Bowl
(Superseded to 631334A)

$3.49

$

In Stock, Qty 13

0

10

Tecumseh 632385

Nut-Float Bowl

$12.99

$

Usually ships in 3-12 days

0

11

Tecumseh 632130

Shaft/Lever-Throttle

$7.49

$

In Stock, only 1 left!

0

12

Tecumseh 632169

Spring-Trottle, Return

$1.99

$

Usually ships in 3-12 days

0

13

Tecumseh 631621

Shutter-Throttle

$1.99

$

Usually ships in 3-12 days

0

14

Tecumseh 650506

Screw-Shutter

$1.49

$

In Stock, Qty 17

0

15

Tecumseh 631553

Choke Shaft & Lever Assy.

$

$

Not available

16

Tecumseh 630735

Spring-Positioning, Choke

$1.99

$

In Stock, only 4 left!

0

17

Tecumseh 631815

Shutter-choke

$1.99

$

In Stock, only 3 left!

0

20

Tecumseh 631183

Seal-Dust

$1.99

$

In Stock, Qty 12

0

21

Tecumseh 631184

Washer-Seal, Dust

$1.99

$

In Stock, Qty 17

0

22

Tecumseh 632386

Spring-Float, Dampening

$1.49

$

Usually ships in 3-12 days

0
