38190 (CCR 1000) - Toro Snow Thrower (SN: 069000001 - 069999999) (1996) STARTER MOTOR ASSEMBLY (MODEL 38195-ELECTRIC) Parts Diagram

Snow Thrower

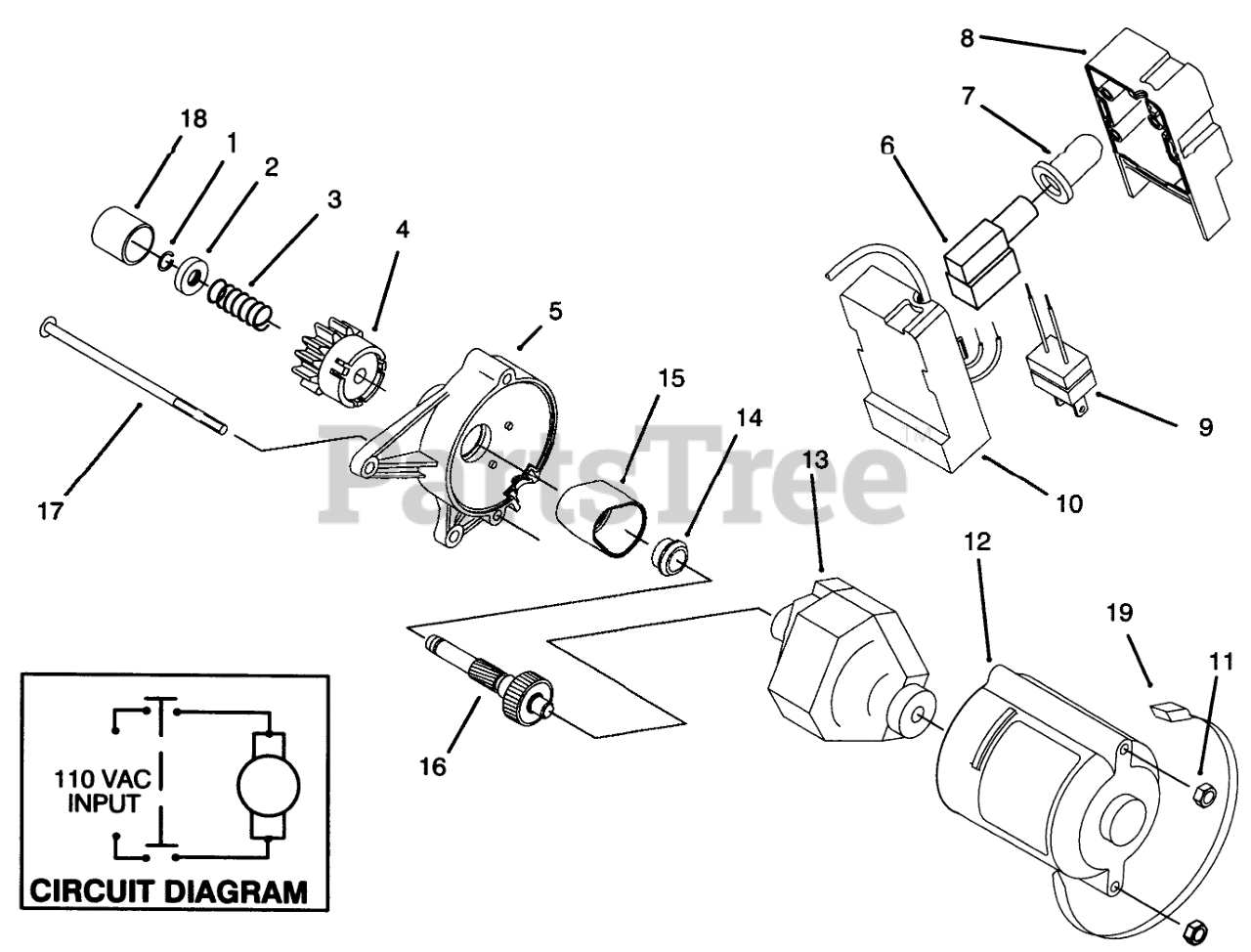

STARTER MOTOR ASSEMBLY (MODEL 38195-ELECTRIC) Parts Diagram

  • Title

1

Toro 61-4680

RING-LOCK

$1.99

$

In Stock, Qty 20+

0

2

Toro 61-4670

PINION STOP

$14.99

$

In Stock, only 4 left!

0

3

Toro 61-4690

SPRING

$

$

Not available

4

Toro 84-5240

PINION ASM

$

$

Not available

5

Toro 70-7810

Housing-Starter
(Superseded to 100-3443)

$27.99

$

In Stock, Qty 8

0

6

Toro 61-4820

SWITCH-STARTER

$18.99

$

In Stock, only 3 left!

0

7

Toro 61-4810

BOOT-SWITCH

$

$

Not available

8

Toro 80-3740

Cap-Switch Housing
(Superseded to 100-3442)

$12.99

$

Usually ships in 3-6 days

0

9

Toro 36-8370

Plug
(Superseded to 94-9933)

$7.99

$

In Stock, only 1 left!

0

10

Toro 80-3730

OBS BASE X
(Superseded to 98-2253)

$

$

Not available

11

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 70-7820

HOUSING COVER

$

$

Not available

13

Toro 70-7802

STARTER MOTOR ASM

$

$

Not available

14

Toro 70-7900

BUSHING

$3.49

$

In Stock, only 1 left!

0

15

Toro 70-7850

COVER-GEAR

$11.99

$

Usually ships in 3-6 days

0

16

Toro 92-6003

Asm-shaft & Gear
(Superseded to 105-8831)

$116.99

$

Usually ships in 3-6 days

0

17

Toro 32144-101

SCREW

$1.99

$

In Stock, only 4 left!

0

18

Toro 70-7890

CAP-PINION

$2.99

$

In Stock, only 1 left!

0

19

Toro 250-7

TIE-CABLE

$7.49

$

In Stock, only 1 left!

0

Toro 77-0402

Starter Motor Assembly (Incl. Ref. #1-5,11-18 & 20)
(Superseded to 105-2953)

Note: Not illustrated

$

$

Not available

Toro 28-9170

CORD
(Superseded to 106-4741)

Note: Not illustrated

$

$

Not available
