38190 (CCR 1000) - Toro Snow Thrower (SN: 059000001 - 059999999) (1995) ENGINE TECUMSEH MODEL NO. HSK600-1681S Parts Diagram

Snow Thrower

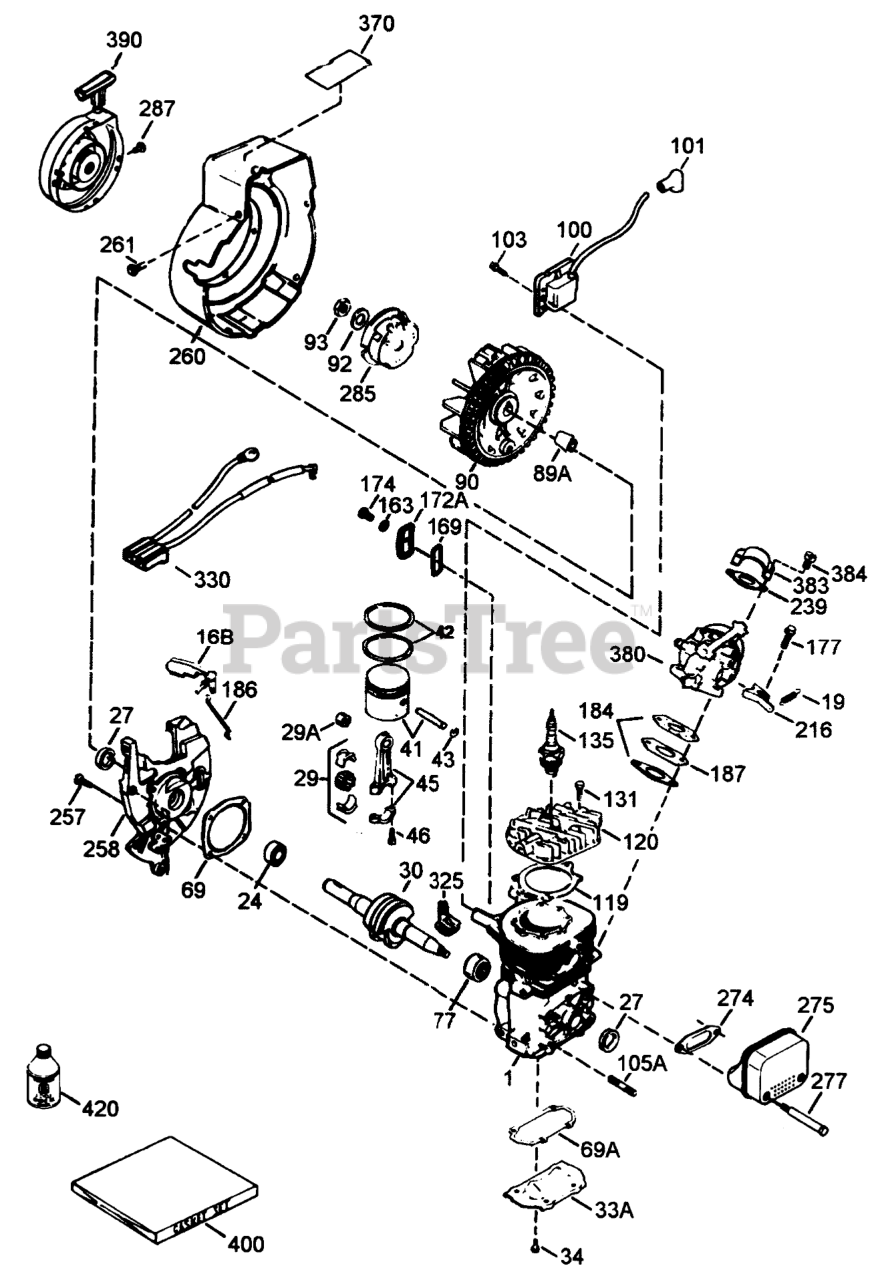

ENGINE TECUMSEH MODEL NO. HSK600-1681S Parts Diagram

  • Title

1

Cylinder (Order Short Block if Replacement is Needed)

$

$

Not available

16B

Tecumseh 490291A

Vane-Air

$3.99

$

In Stock, only 3 left!

0

19

Tecumseh 570707

Spring-Extention

$3.99

$

In Stock, Qty 7

0

24

Tecumseh 530110

Bearing-Ball

$30.99

$

Usually ships in 3-12 days

0

27

Tecumseh 510319

Seal-Oil

$7.49

$

In Stock, Qty 7

0

29

Tecumseh 530150

Needle Bearing and Liner Set (37 Needles)
(Superseded to 530150A)

$36.99

$

Usually ships in 3-12 days

0

29A

Tecumseh 530104A

Bearing-Cartridge

$15.99

$

In Stock, only 1 left!

0

30

Tecumseh 290602

Crankshaft

$

$

Not available

33A

Tecumseh 570644

Plate-Cover

$7.49

$

In Stock, only 1 left!

0

34

Tecumseh 650579

Screw (T-25, 10-24 x 1/2)

$1.99

$

Usually ships in 3-12 days

0

41

Tecumseh 310283A

Piston and Pin ASM

$33.99

$

Usually ships in 3-12 days

0

42

Tecumseh 310190

Ring Set
(Superseded to 310289A)

$14.99

$

In Stock, only 2 left!

0

43

Tecumseh 310167

Ring-Retaning

$1.99

$

Usually ships in 3-12 days

0

45

Tecumseh 310235B

Connecting Rod Assembly (Incl. Ref. #29, 29A, & 46)
(Superseded to 310235C)

$106.99

$

Usually ships in 3-12 days

0

46

Tecumseh 650633

Bolt-Rod, Connecting

$1.99

$

In Stock, only 2 left!

0

69

Tecumseh 510292A

Gasket-Cover, Cylinder

Note: Included in Gasket Set No. 510324.

$3.99

$

Usually ships in 3-12 days

0

69A

Tecumseh 510323A

Gasket-Plate, Cover

Note: Included in Gasket Set No. 510324.

$6.99

$

In Stock, only 1 left!

0

77

Toro 53-105

Cartridge Bearing

$

$

Currently unavailable

89

Tecumseh 611032

Blade (20 inch)

$8.49

$

Usually ships in 3-12 days

0

90

Tecumseh 611066

Flywheel

$74.99

$

In Stock, only 1 left!

0

92

Tecumseh 650815

Washer-Belleville

$1.99

$

In Stock, Qty 10

0

93

Tecumseh 650390

Nut-Flywheel

$1.99

$

In Stock, only 3 left!

0

100

Tecumseh 34443A

Solid State Ignition (Incl. Ref. #101)
(Superseded to 34443D)

$44.99

$

In Stock, only 3 left!

0

101

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, only 2 left!

0

103

Tecumseh 650814

Screw
(Superseded to 651007)

$1.99

$

In Stock, only 4 left!

0

105A

Tecumseh 650796

Stud

$1.99

$

In Stock, only 4 left!

0

119

Tecumseh 510274A

Gasket-Head, Cylinder

Note: Included in Gasket Set No. 510324.

$1.99

$

In Stock, Qty 8

0

120

Tecumseh 250240B

Head-Cylinder

$35.99

$

Usually ships in 3-12 days

0

131

Tecumseh 650477

Screw (T-30, 1/4-20 x 3/4)

$1.99

$

In Stock, Qty 20+

0

135

Tecumseh 611049

Spark Plug-Resistor (R C J 8Y)

$4.99

$

In Stock, Qty 20+

0

163

Tecumseh 650838

Washer

$

$

Not available

169

Tecumseh 510325A

Cover-Compression, Release

Note: Included in Gasket Set No. 510324.

$1.99

$

In Stock, only 4 left!

0

172A

Tecumseh 570708

Cover-Release, Compression

$5.49

$

Usually ships in 3-12 days

0

174

Tecumseh 650579

Screw (T-25, 10-24 x 1/2)

$1.99

$

Usually ships in 3-12 days

0

177

Tecumseh 650959

Screw (5/32 Allen, 1/4-20 x 1)

$1.99

$

In Stock, Qty 8

0

184

Tecumseh 510326A

Gasket-Carburetor

Note: Included in Gasket Set No. 510324.

$1.49

$

In Stock, only 3 left!

0

186

Tecumseh 490322

Governor-Link

$

$

Not available

187

Toro 570428A

Spacer

$

$

Currently unavailable

216

Tecumseh 570645

Lever-Adjusting, Rpm

$

$

Not available

239

Tecumseh 35815

Gasket-Cleaner, Air

$1.49

$

In Stock, Qty 20+

0

257

Tecumseh 650911

Screw (T-30, 1/4-20 x 5/8)

$1.99

$

Usually ships in 3-12 days

0

258

Tecumseh 350422

Blower Housing Base (Incl. Ref. #27)

$

$

Not available

260

Tecumseh 350437

Housing-Blower

$

$

Not available

261

Tecumseh 650737

Screw (1/4-20 x 1/2)

$1.99

$

In Stock, Qty 6

0

274

Tecumseh 510346A

Exhaust Gasket

Note: Included in Gasket Set No. 510324.

$7.49

$

In Stock, only 1 left!

0

275

Tecumseh 390330

Muffler (Incl. Ref. #274 & 277)

$

$

Not available

277

Tecumseh 650869

Screw (1/4-20 x 2-3/4)

$3.99

$

Usually ships in 3-12 days

0

285

Tecumseh 590551

Cup-Starter
(Superseded to 590551A)

$10.99

$

Usually ships in 3-12 days

0

287

Tecumseh 650926

Screw (8-32 x 21/64)

$1.49

$

In Stock, only 3 left!

0

325

Tecumseh 29443

Clip-Wire

$1.99

$

In Stock, only 4 left!

0

330

Tecumseh 611153

Harness-Wire

$

$

Not available

370

Tecumseh 35977

Decal-Warning

$2.49

$

In Stock, Qty 6

0

380

Tecumseh 632641

Carburetor (Incl. Ref. #184)
(Superseded to 640086A)

$106.99

$

In Stock, only 1 left!

0

383

Tecumseh 570434

Baffle-Carburetor

$10.99

$

Usually ships in 3-12 days

0

384

Tecumseh 650229

Screw

$1.99

$

Usually ships in 3-12 days

0

390

Tecumseh 590652

Rewind Starter
(Superseded to 590784)

$50.99

$

Usually ships in 3-12 days

0

390

Tecumseh 590735

Rewind Starter NOTE: This engine could have been built with a 590735 starter. Refer to the design of the air intake louvers for part identification. Individual starter parts do not interchange.
(Superseded to 590784)

$50.99

$

Usually ships in 3-12 days

0

400

Tecumseh 510324

Gasket Set
(Superseded to 510324B)

$9.49

$

In Stock, Qty 10

0

420

Tecumseh 730227A

2-Cycle Oil (8oz)
(Superseded to 730227D)

$3.99

$

In Stock, Qty 5

0
