38190 (CCR 1000) - Toro Snow Thrower (SN: 049000001 - 049999999) (1994) ENGINE & FRAME ASSEMBLY Parts Diagram

Snow Thrower

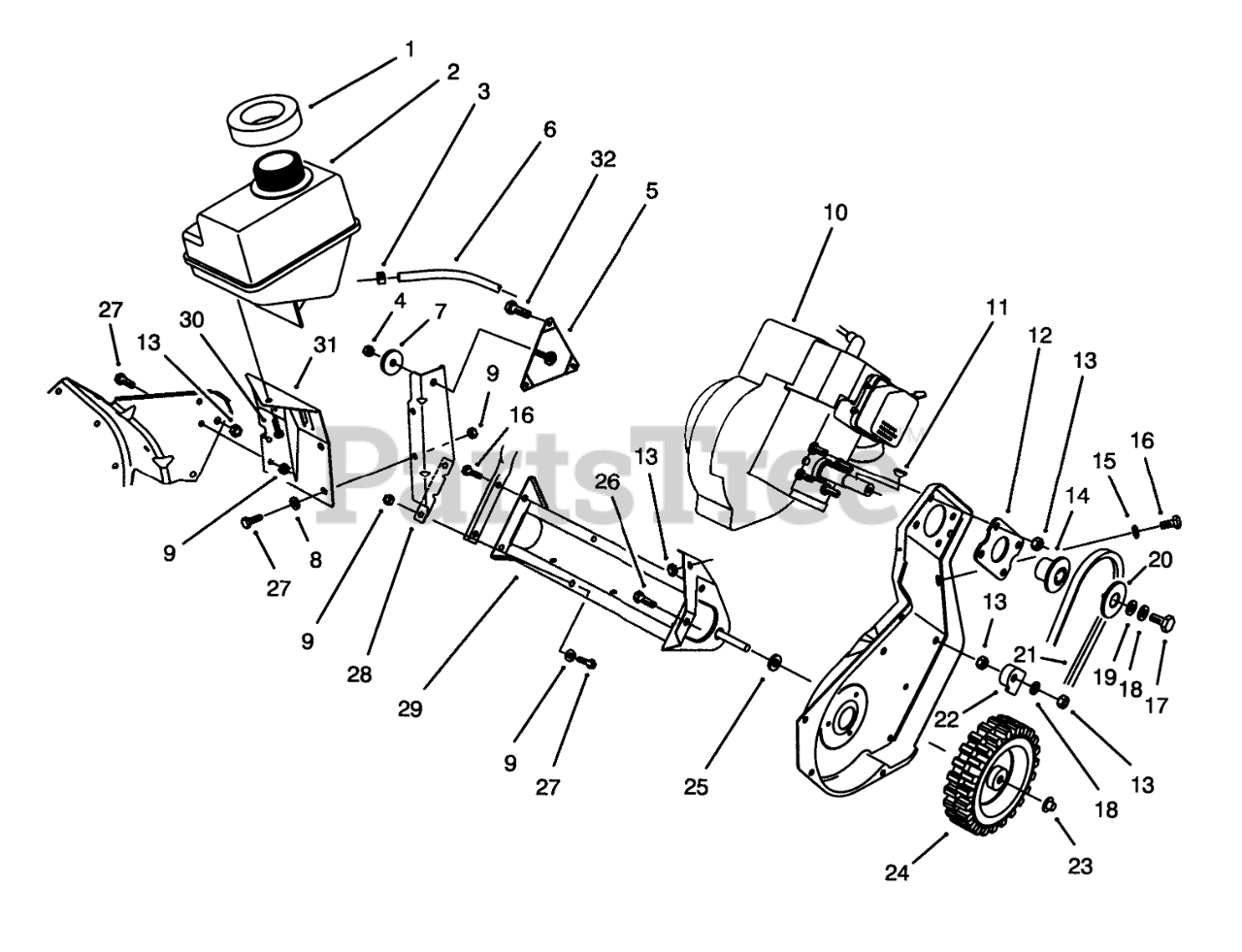

ENGINE & FRAME ASSEMBLY Parts Diagram

  • Title
1

Toro 55-9310

SEAL-FOAM

$

$

Not available

2

Toro 71-5020

Tank-Gas
(Superseded to 105-2997)

$

$

Not available

3

Toro 2412-86

Clamp
(Superseded to 2412-98)

$1.49

$

In Stock, Qty 20+

0

4

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 4 left!

0

5

Toro 92-6012

BRACKET AND STUD ASM

$11.99

$

Usually ships in 3-6 days

0

6

Toro 49-2482

LINE-FUEL

$14.99

$

In Stock, only 4 left!

0

7

Toro 71-5320

WASHER-SUPPORT, ENGINE

$13.99

$

Usually ships in 3-6 days

0

8

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

10

Engine (Model No. 38190-Tec. No. HSK600-1659S) (Model No. 38191-Tec. No. HSK600-1671S)

Note: Obtain from your local Tecumseh dealer.

$

$

Not available

11

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, Qty 10

0

12

Toro 71-5290

Plate Engine
(Superseded to 71-5290-03)

$6.99

$

In Stock, only 1 left!

0

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0

14

Toro 71-5050

Hub-HALF SHEAVE

$54.99

$

Usually ships in 3-6 days

0

15

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

16

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Toro 3235-6

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

18

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

19

Toro 3256-71

WASHER-FLAT

$1.49

$

In Stock, Qty 7

0

20

Toro 71-5060

CAP-HALF SHEAVE

$13.99

$

Usually ships in 3-6 days

0

21

Toro 71-5381

V-BELT

$21.99

$

In Stock, Qty 15

0

22

Toro 84-5610

GUIDE-CABLE

$2.99

$

Usually ships in 3-6 days

0

23

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

24

Toro 23-3250

WHEEL

$18.99

$

In Stock, Qty 7

0

25

Toro 71-5440

SPACER-PLASTIC

$5.99

$

Usually ships in 3-6 days

0

26

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

27

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

28

Toro 71-5210

Support-Engine
(Superseded to 71-5210-03)

$7.99

$

In Stock, only 1 left!

0

29

Toro 71-5200

Frame Assembly
(Superseded to 71-5200-03)

$135.99

$

Usually ships in 3-6 days

0

30

Toro 32144-53

SCREW-SHWH, THREAD FORMING

$3.49

$

In Stock, Qty 10

0

31

Toro 71-5220

Bracket-Fuel Tank
(Superseded to 71-5220-03)

$

$

Not available

32

Toro 92-6019

SCREW X
(Superseded to 94-2789)

$1.49

$

Usually ships in 3-6 days

0
