38190 (CCR 1000) - Toro Snow Thrower (SN: 000000001 - 000999999) (1990) ENGINE ASSEMBLY (MODEL NO. 38190 ONLY) Parts Diagram

Snow Thrower

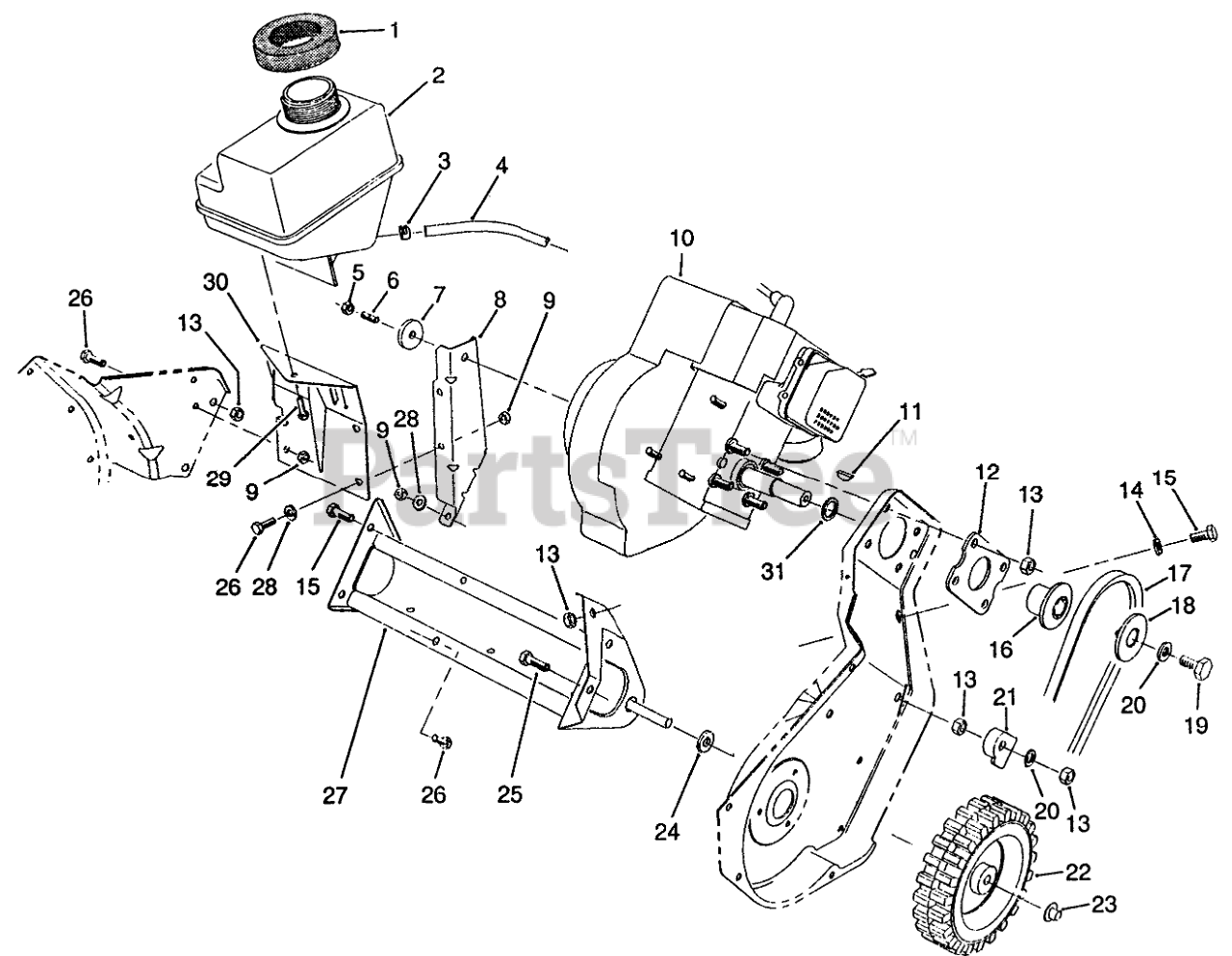

ENGINE ASSEMBLY (MODEL NO. 38190 ONLY) Parts Diagram

  • Title
1

Toro 55-9310

SEAL-FOAM

$

$

Not available

2

Toro 71-5020

Tank-Gas
(Superseded to 105-2997)

$

$

Not available

3

Toro 2412-86

Clamp
(Superseded to 2412-98)

$1.49

$

In Stock, Qty 20+

0

4

Toro 49-2482

LINE-FUEL

$16.99

$

In Stock, only 4 left!

0

5

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 2 left!

0

6

$

$

Not available

7

Toro 71-5320

WASHER-SUPPORT, ENGINE

$14.99

$

Usually ships in 3-6 days

0

8

Toro 71-5210

Support-Engine
(Superseded to 71-5210-03)

$7.99

$

In Stock, only 1 left!

0

9

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 10

0

10

Engine-Tecumseh Model HSK600-1659-N

$

$

Not available

11

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, only 4 left!

0

12

Toro 71-5290

Plate Engine
(Superseded to 71-5290-03)

$6.99

$

In Stock, only 1 left!

0

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

15

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

16

Toro 71-5050

Hub-HALF SHEAVE

$54.99

$

Usually ships in 3-6 days

0

17

Toro 71-5380

Belt-Drive
(Superseded to 71-5381)

$24.99

$

In Stock, Qty 14

0

18

Toro 71-5060

CAP-HALF SHEAVE

$14.99

$

Usually ships in 3-6 days

0

19

Toro 3235-6

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

20

Toro 3256-71

WASHER-FLAT

$1.49

$

In Stock, Qty 5

0

21

Toro 71-5280

Guide-Cable
(Superseded to 84-5610)

$3.49

$

Usually ships in 3-6 days

0

22

Toro 23-3250

WHEEL

$20.99

$

In Stock, Qty 7

0

23

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

24

Toro 71-5440

SPACER-PLASTIC

$5.99

$

Usually ships in 3-6 days

0

25

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

26

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

27

Toro 71-5200

Frame Assembly
(Superseded to 71-5200-03)

$157.99

$

Usually ships in 3-6 days

0

28

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

29

Toro 32144-53

SCREW-SHWH, THREAD FORMING

$3.99

$

In Stock, Qty 10

0

30

Toro 71-5220

Bracket-Fuel Tank
(Superseded to 71-5220-03)

$

$

Not available

31

Toro 7-3590

WASHER

$2.99

$

In Stock, only 1 left!

0
