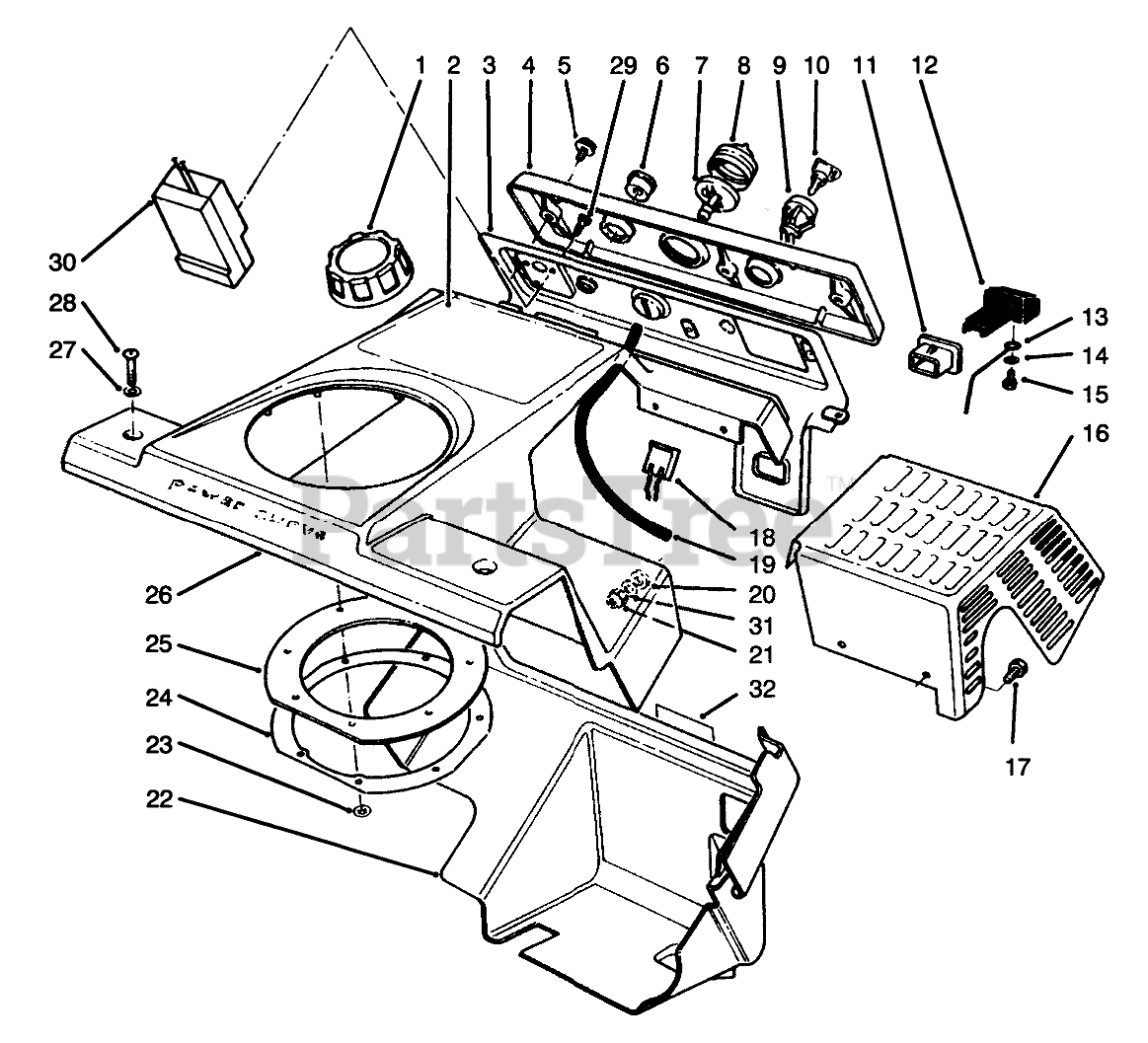

38186 (CCR 2000) - Toro Snow Thrower (SN: 059000001 - 059999999) (1995) CONTROL PANEL & SHROUDING ASSEMBLY Parts Diagram

Snow Thrower

CONTROL PANEL & SHROUDING ASSEMBLY Parts Diagram

  • Title
1

Toro 55-3573

CAP-FUEL ASM
(Superseded to 104-4133)

$16.99

$

Usually ships in 3-6 days

0

2

Toro 77-5220

DECAL - CCR 2000E

$

$

Not available

3

Toro 12-4659

Panel-Control (Incl. Ref. #6-8 & 11)

$

$

Not available

4

Toro 61-4410

Plate-Name
(Superseded to 104-2772)

$

$

Not available

Toro 94-2569

PLATE

Note: Not illustrated

$

$

Not available

5

Toro 32144-112

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

6

Toro 55-9410

GUIDE-ROPE, STARTER

$16.99

$

Usually ships in 3-6 days

0

7

Toro 44-2750

BODY-PRIMER

$8.99

$

In Stock, Qty 20+

0

8

Toro 66-7460

BULB-PRIMER

$6.49

$

In Stock, Qty 20+

0

9

Toro 40-5940

SWITCH

$15.99

$

In Stock, only 1 left!

0

10

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 12

0

11

Toro 55-8820

FITTING

$9.99

$

In Stock, only 3 left!

0

12

Toro 55-8810

CONTROL-CHOKE

$14.99

$

In Stock, only 3 left!

0

Toro 55-8811

CHOKE CONTROL

Note: Not illustrated

$

$

Not available

13

Toro 61-4651

Unkage-Choke
(Superseded to 94-2797)

$29.99

$

In Stock, Qty 20+

0

14

Toro 3256-49

WASHER-PLAIN

$0.99

$

In Stock, Qty 8

0

15

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

16

Toro 55-9210

Wa-Shield
(Superseded to 55-9210-03)

$

$

Not available

17

Toro 32105-8

SCREW-SHH

$2.49

$

In Stock, only 1 left!

0

18

Toro 218-532

CONNECTOR-BODY

$15.99

$

Usually ships in 3-6 days

0

19

Toro 44-3171

PRIMER HOSE

$10.99

$

In Stock, only 3 left!

0

20

Toro 55-9660

WASHER

$

$

Not available

21

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

22

Toro 55-8791

LOWER SHROUD

$

$

Not available

23

Toro 3290-474

PALNUT

$0.99

$

In Stock, Qty 9

0

24

Toro 55-9540

Retainer-Chute Seal
(Superseded to 55-9540-03)

$21.99

$

In Stock, only 1 left!

0

25

Toro 55-9260

SEAL-CHUTE
(Superseded to 105-3543)

$15.99

$

In Stock, only 1 left!

0

26

Toro 94-2795

Upper Shroud Assembly (Incl. Ref. #2 & 23-25)

$240.99

$

Usually ships in 3-6 days

0

27

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro 3250-32

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

29

Toro 32144-27

SCREW-PLASTITE

$7.49

$

Usually ships in 3-6 days

0

30

Switch Assembly

Note: Note: See page 7

$

$

Not available

31

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

32

Toro 94-2581

DECAL - WARNING

$

$

Not available
