38186 (CCR 2000) - Toro Snow Thrower (SN: 049000001 - 049999999) (1994) GOVERNOR ASSEMBLY (ENGINE MODEL 47PP3-5) Parts Diagram

Snow Thrower

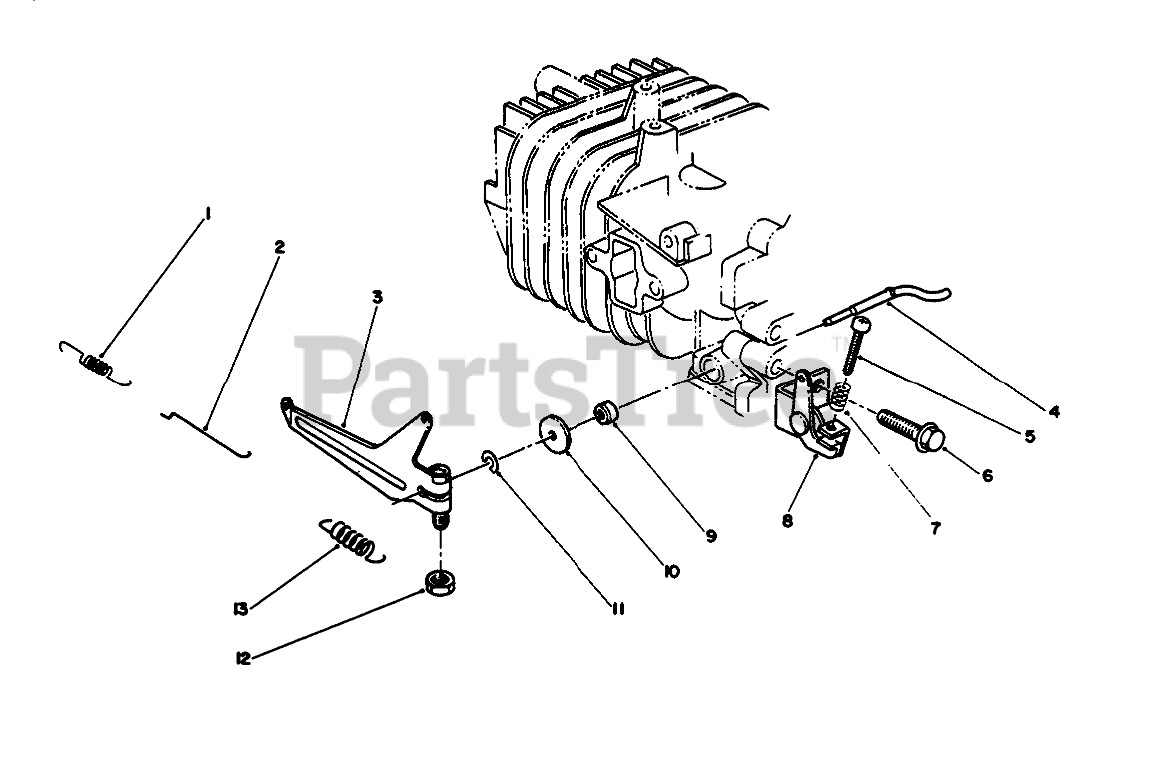

GOVERNOR ASSEMBLY (ENGINE MODEL 47PP3-5) Parts Diagram

  • Title
1

Toro 81-0440

CARB SPRING

$

$

Not available

2

Toro 81-0430

CARB ROD

$

$

Not available

3

Toro 81-4650

GOVERNOR ARM

$

$

Not available

4

Toro 81-2880

SHAFT

$

$

Not available

5

Toro 81-2890

SCREW

$1.49

$

In Stock, only 1 left!

0

6

$

$

Not available

7

Toro 81-2900

SPRING

$

$

Not available

8

Toro 81-0370

GOV SPR BRKT

$24.99

$

In Stock, only 1 left!

0

9

Toro 81-0850

SEAL-OIL

$18.99

$

Usually ships in 3-6 days

0

10

Toro 81-0860

WASHER

$

$

Not available

11

Toro 81-0870

E-RING

$

$

Not available

12

$3.49

$

In Stock, only 1 left!

0

13

Toro 81-0360

GOV SPRING

$

$

Not available
