38186 (CCR 2000) - Toro Snow Thrower (SN: 010000001 - 019999999) (1991) STARTER MOTOR & SWITCH HOUSING ASSEMBLY Parts Diagram

Snow Thrower

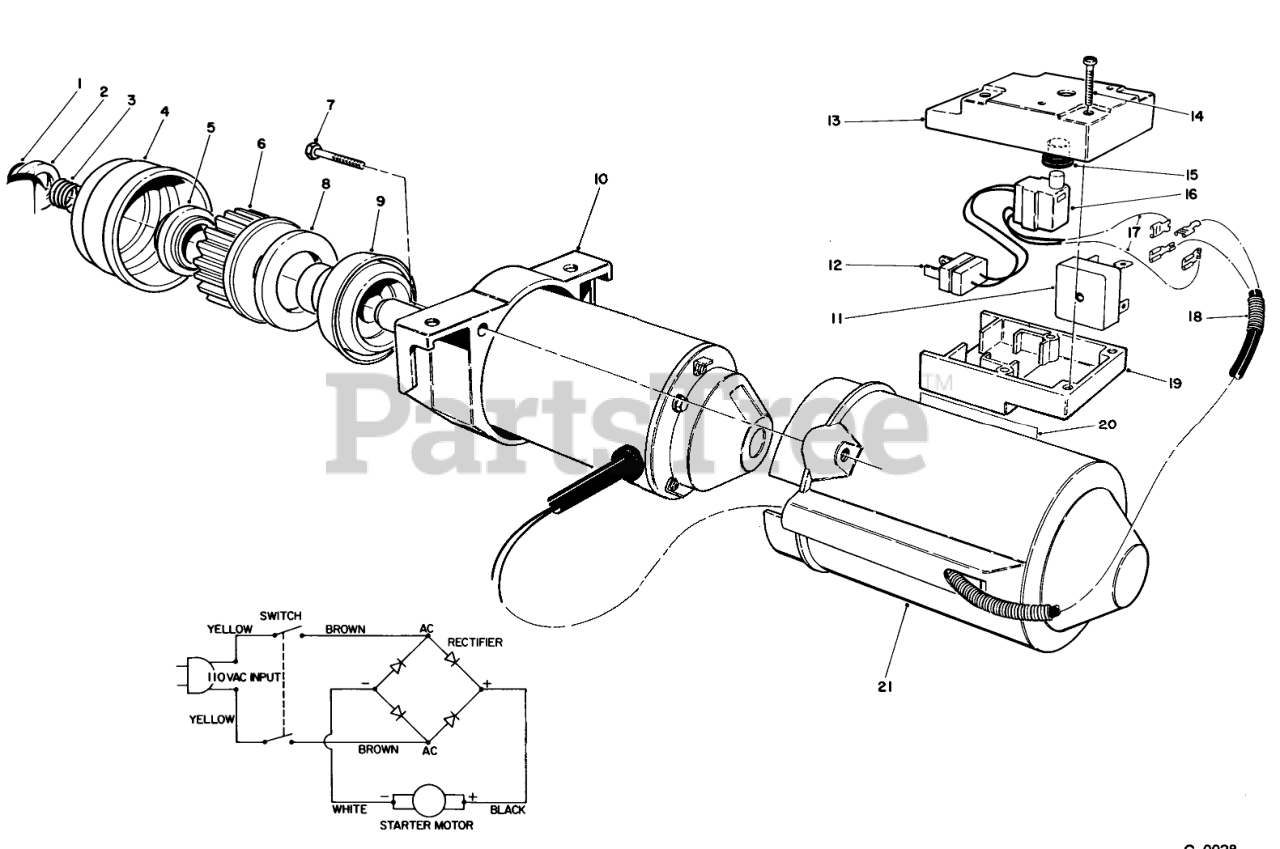

STARTER MOTOR & SWITCH HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 61-4680

RING-LOCK

$1.99

$

In Stock, Qty 20+

0

2

Toro 61-4670

PINION STOP

$14.99

$

In Stock, only 4 left!

0

3

Toro 41-4690

Spring

$

$

Currently unavailable

4

Retainer

$

$

Not available

6

Gear-Pinion

$

$

Not available

7

Toro 61-4640

Screw-Plastite

$

$

Not available

8

Ring-Rubber

$

$

Not available

9

Drive-Pinion

$

$

Not available

10

Toro 61-4601

Starter Motor Assembly (Incl. Ref. #1-6, 8 & 9)
(Superseded to 105-2955)

$

$

Not available

11

Toro 37-7600

RECTIFIER-BRIDGE

$27.99

$

In Stock, only 1 left!

0

12

Toro 36-8370

Plug
(Superseded to 94-9933)

$7.99

$

In Stock, only 1 left!

0

13

Toro 66-1760

SWITCH BOX CAP

$

$

Not available

14

Toro 66-4830

Screw-Plastite

$

$

Currently unavailable

15

Toro 61-4810

BOOT-SWITCH

$

$

Not available

16

Toro 61-4820

SWITCH-STARTER

$18.99

$

In Stock, only 3 left!

0

17

$

$

Not available

18

Toro 61-4860

CABLE COVER

$

$

Not available

19

Toro 66-1750

SWITCH BOX BASE

$31.99

$

Usually ships in 3-6 days

0

20

Toro 66-6590

Decal-UL

$

$

Not available

21

Toro 61-4620

STARTER MOTOR COVER

$54.99

$

Usually ships in 3-6 days

0

Toro 61-4700

Pinion Assembly (Incl. Ref. #4-6, 8 & 9)

$

$

Not available

Toro 28-9170

CORD
(Superseded to 106-4741)

$

$

Not available
