38186 (CCR 2000) - Toro Snow Thrower (SN: 000000001 - 000999999) (1990) SHORT BLOCK ASSEMBLY (ENGINE MODEL NO. 47PK9) Parts Diagram

Snow Thrower

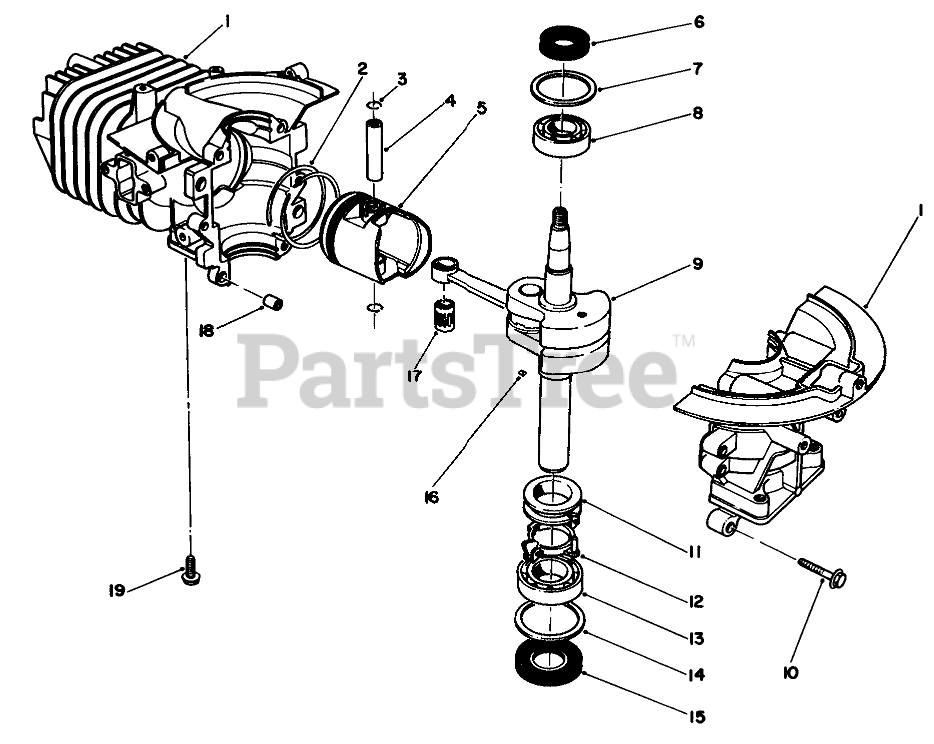

SHORT BLOCK ASSEMBLY (ENGINE MODEL NO. 47PK9) Parts Diagram

  • Title

1

Toro 81-4590

CYLINDER/CRANKCASE

$

$

Not available

2

Toro 81-0590

RING SET

$53.99

$

Usually ships in 3-6 days

0

3

Toro 81-0620

CLIP

$7.99

$

Usually ships in 3-6 days

0

4

Toro 82-0600

HOUSING - CYL AIR, LH

$

$

Not available

5

Toro 81-0580

Piston
(Superseded to 81-2140)

$157.99

$

Usually ships in 3-6 days

0

6

Toro 81-0720

OIL SEAL

$16.99

$

In Stock, only 1 left!

0

7

Toro 81-0710

WASHER-UPPER

$17.99

$

Usually ships in 3-6 days

0

8

Toro 81-0690

BEARING-UPPER

$112.99

$

In Stock, only 1 left!

0

9

Toro 81-5700

CRANKSHAFT

$

$

Not available

10

Toro 81-0540

BOLT

$

$

Not available

11

Toro 81-0770

SPACER

$38.99

$

Usually ships in 3-6 days

0

12

Toro 81-0750

BRACKET

$44.99

$

Usually ships in 3-6 days

0

13

Toro 81-0700

LOWER BRG

$70.99

$

In Stock, only 1 left!

0

14

Toro 81-0730

WASHER-LOWER

$18.99

$

Usually ships in 3-6 days

0

15

Toro 81-0740

SEAL-OIL

$22.99

$

In Stock, only 2 left!

0

16

Toro 81-0760

PIN

$5.99

$

In Stock, only 1 left!

0

17

Toro 81-0610

BEARING

$

$

Not available

18

Toro 81-0520

PIN

$

$

Not available

19

Toro 81-0570

BOLT

$7.49

$

In Stock, only 3 left!

0

Toro 12-5909

Short Block (Incl. Ref. #1-19)
(Superseded to 95-7913)

$

$

Not available
