38185 (CCR 2000) - Toro Snow Thrower (SN: 039000001 - 039999999) (1993) ENGINE & MAIN FRAME ASSEMBLY Parts Diagram

Snow Thrower

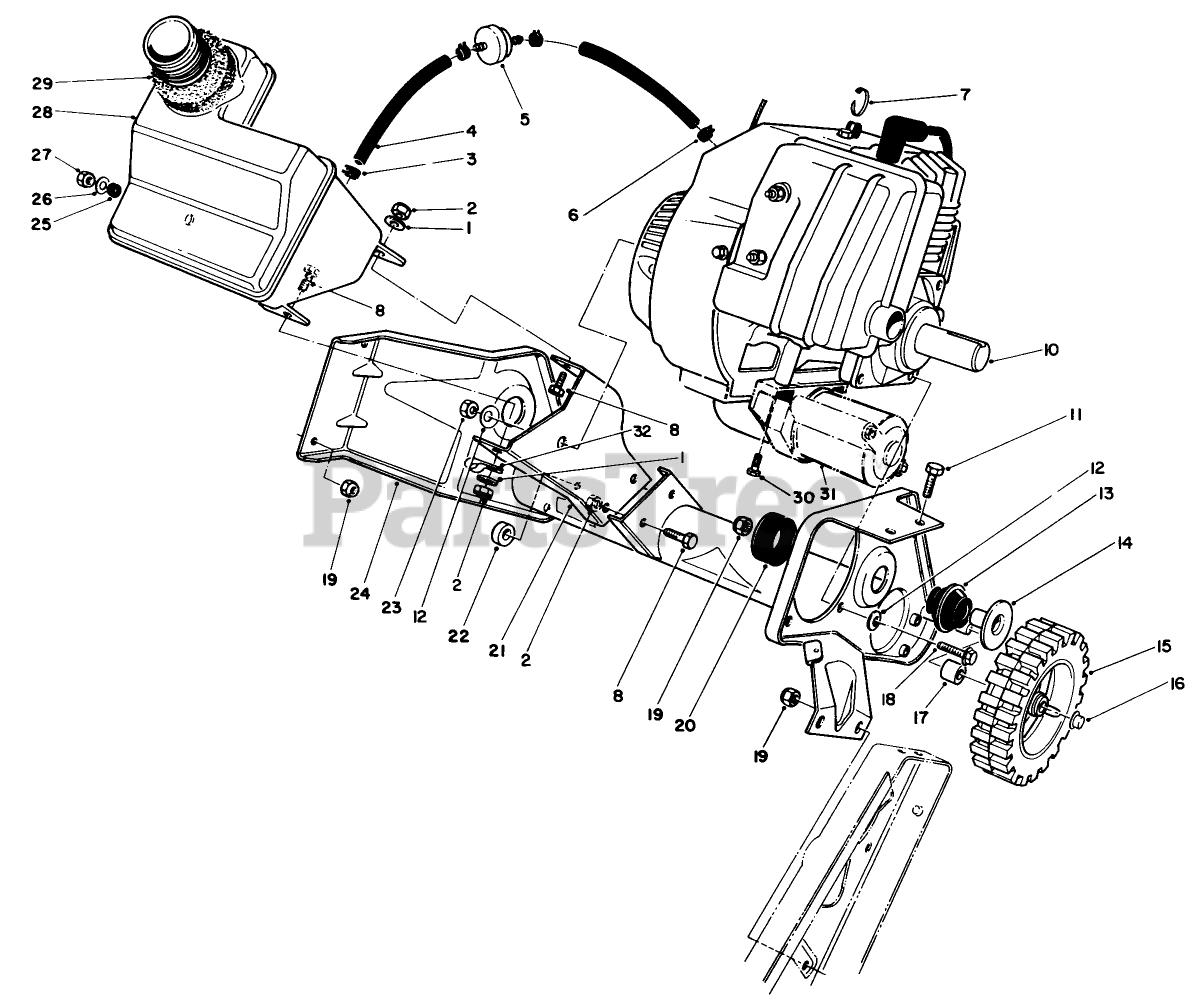

ENGINE & MAIN FRAME ASSEMBLY Parts Diagram

  • Title
1

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

2

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

3

Toro 2412-86

Clamp
(Superseded to 2412-98)

$1.49

$

In Stock, Qty 20+

0

4

Toro 49-2481

GAS LINE

$7.99

$

In Stock, Qty 11

0

5

Toro 56-6360

FILTER-FUEL

$6.49

$

In Stock, Qty 20+

0

6

Toro 2412-80

CLAMP-HOSE

$5.49

$

In Stock, only 3 left!

0

7

Toro 250-4

TIE-CABLE

$0.99

$

Usually ships in 3-6 days

0

8

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Engine ASM

$

$

Not available

11

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 20+

0

13

Toro 55-9460

MOUNT-REBOUND

$

$

Not available

14

Toro 55-9470

SPACER TUBE

$

$

Not available

15

Toro 66-6510

WHEEL

$24.99

$

In Stock, Qty 15

0

16

Toro 32112-14

NUT-PUSH

$2.99

$

In Stock, Qty 20+

0

17

Toro 66-6501

SPACER-WHEEL

$3.99

$

In Stock, Qty 20+

0

18

$9.49

$

In Stock, only 3 left!

0

19

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 55-9450

LOAD MOUNT

$

$

Not available

21

Toro 55-9070

Support-Recoil
(Superseded to 94-9918-03)

$20.99

$

Usually ships in 3-6 days

0

22

Toro 66-6500

SPACER-WHEEL

$3.49

$

In Stock, only 2 left!

0

23

Toro 81-0300

NUT (F/W & PPP)

$

$

Not available

24

Toro 63-3750

Wa-Frame
(Superseded to 63-3750-03)

$311.99

$

Usually ships in 3-6 days

0

25

Toro 237-89

GROMMET-RUBBER

$3.49

$

In Stock, only 4 left!

0

26

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

27

Toro 32152-8

NUT-LOCK, CONE

$3.49

$

In Stock, only 1 left!

0

28

Toro 13-245

Tank-Fuel(Incl. Ref. #25)

$

$

Currently unavailable

29

Toro 55-9310

SEAL-FOAM

$

$

Not available

30

Toro 56-6380

SCREW
(Superseded to 110-3986)

$1.49

$

Usually ships in 3-6 days

0

31

Starter Motor Assembly

Note: Note: See page 7

$

$

Not available

32

Toro 2412-91

CLAMP

$3.99

$

In Stock, only 2 left!

0
