38185 (CCR 2000) - Toro Snow Thrower (SN: 007000001 - 007999999) (1987) STARTER MOTOR & SWITCH HOUSING ASSEMBLY Parts Diagram

Snow Thrower

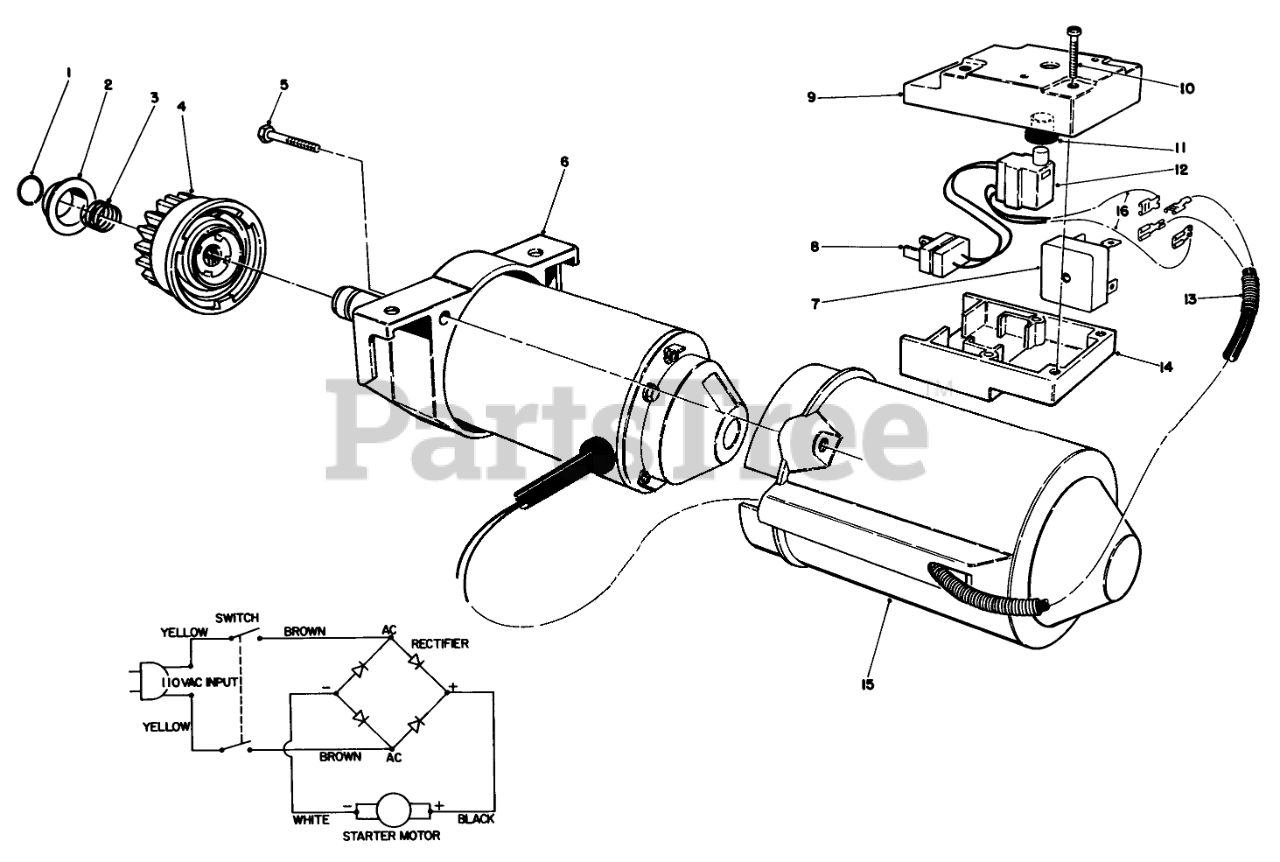

STARTER MOTOR & SWITCH HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 61-4680

RING-LOCK

$1.99

$

In Stock, Qty 20+

0

2

Toro 61-4670

PINION STOP

$14.99

$

In Stock, only 4 left!

0

3

Toro 61-4690

SPRING

$

$

Not available

4

Toro 61-4700

Pinion ASM

$

$

Not available

5

Toro 61-4640

Screw-Plastite

$

$

Not available

6

Toro 61-4600

Starter Motor Assembly (Incl. Ref. #1-4)
(Superseded to 105-2955)

$

$

Not available

7

Toro 37-7600

RECTIFIER-BRIDGE

$27.99

$

In Stock, only 1 left!

0

8

Toro 36-8370

Plug
(Superseded to 94-9933)

$7.99

$

In Stock, only 1 left!

0

9

Toro 61-4840

Cap-Switch Housing
(Superseded to 66-1750)

$31.99

$

Usually ships in 3-6 days

0

10

Toro 61-4830

SCREW

$

$

Not available

11

Toro 61-4810

BOOT-SWITCH

$

$

Not available

12

Toro 61-4820

SWITCH-STARTER

$18.99

$

In Stock, only 3 left!

0

13

Toro 61-4860

CABLE COVER

$

$

Not available

14

Toro 61-4850

Linkage-Choke
(Superseded to 66-1760)

$

$

Not available

15

Toro 61-4620

STARTER MOTOR COVER

$54.99

$

Usually ships in 3-6 days

0

16

$

$

Not available

Toro 28-9170

CORD
(Superseded to 106-4741)

Note: Not illustrated

$

$

Not available
