38185 C (CCR 2000) - Toro Snow Thrower (SN: 008000001 - 008999999) (1988) STARTER MOTOR & SWITCH HOUSING ASSEMBLY Parts Diagram

Snow Thrower

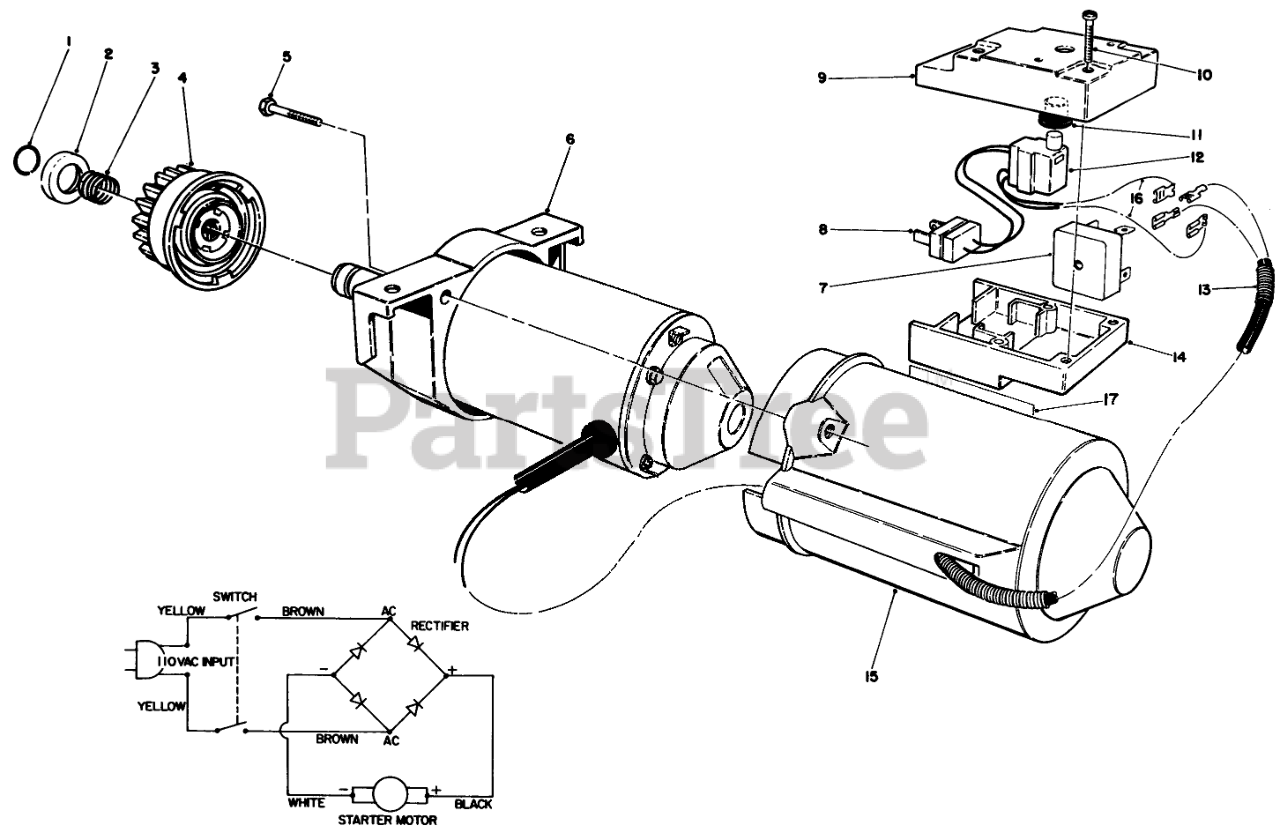

STARTER MOTOR & SWITCH HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 61-4680

RING-LOCK

$1.99

$

In Stock, Qty 20+

0

2

Toro 61-4670

PINION STOP

$14.99

$

In Stock, only 4 left!

0

3

Toro 61-4690

SPRING

$

$

Not available

4

Toro 61-4700

Pinion ASM

$

$

Not available

5

Toro 61-4640

Screw-Plastite

$

$

Not available

6

Toro 61-4600

Starter Motor Assembly (Incl. Ref. #1-4)(Model No. 38185 only)
(Superseded to 105-2955)

$

$

Not available

6

Toro 61-4601

Starter Motor Assembly (Incl. Ref. #1-4)(Model No. 38185C only)
(Superseded to 105-2955)

$

$

Not available

7

Toro 37-7600

RECTIFIER-BRIDGE

$27.99

$

In Stock, only 1 left!

0

8

Toro 36-8370

Plug
(Superseded to 94-9933)

$7.99

$

In Stock, only 1 left!

0

9

Toro 61-4840

Cap-Switch Housing
(Superseded to 66-1750)

$31.99

$

Usually ships in 3-6 days

0

9

Toro 66-1760

SWITCH BOX CAP

$

$

Not available

10

Toro 61-4830

SCREW

$

$

Not available

11

Toro 61-4810

BOOT-SWITCH

$

$

Not available

12

Toro 61-4820

SWITCH-STARTER

$18.99

$

In Stock, only 3 left!

0

13

Toro 61-4860

CABLE COVER

$

$

Not available

14

Toro 61-4850

Linkage-Choke
(Superseded to 66-1760)

$

$

Not available

14

Toro 66-1750

SWITCH BOX BASE

$31.99

$

Usually ships in 3-6 days

0

15

Toro 61-4620

STARTER MOTOR COVER

$54.99

$

Usually ships in 3-6 days

0

16

Toro 36-8360

WIRE

$

$

Not available

17

Toro 61-4440

Decal-UL (Model No. 38185)

$

$

Not available

17

Toro 61-4460

Decal-CSA (Model No. 38185C)

$

$

Not available

Toro 28-9170

CORD
(Superseded to 106-4741)

$

$

Not available
