38182 - Toro 16" CCR Powerlite Snow Thrower (SN: 260000001 - 260999999) (2006) RECOIL STARTER ASSEMBLY NO. 590712 (OPTIONAL) TECUMSEH HSK635 TYPE 1723C Parts Diagram

16" CCR Powerlite Snow Thrower

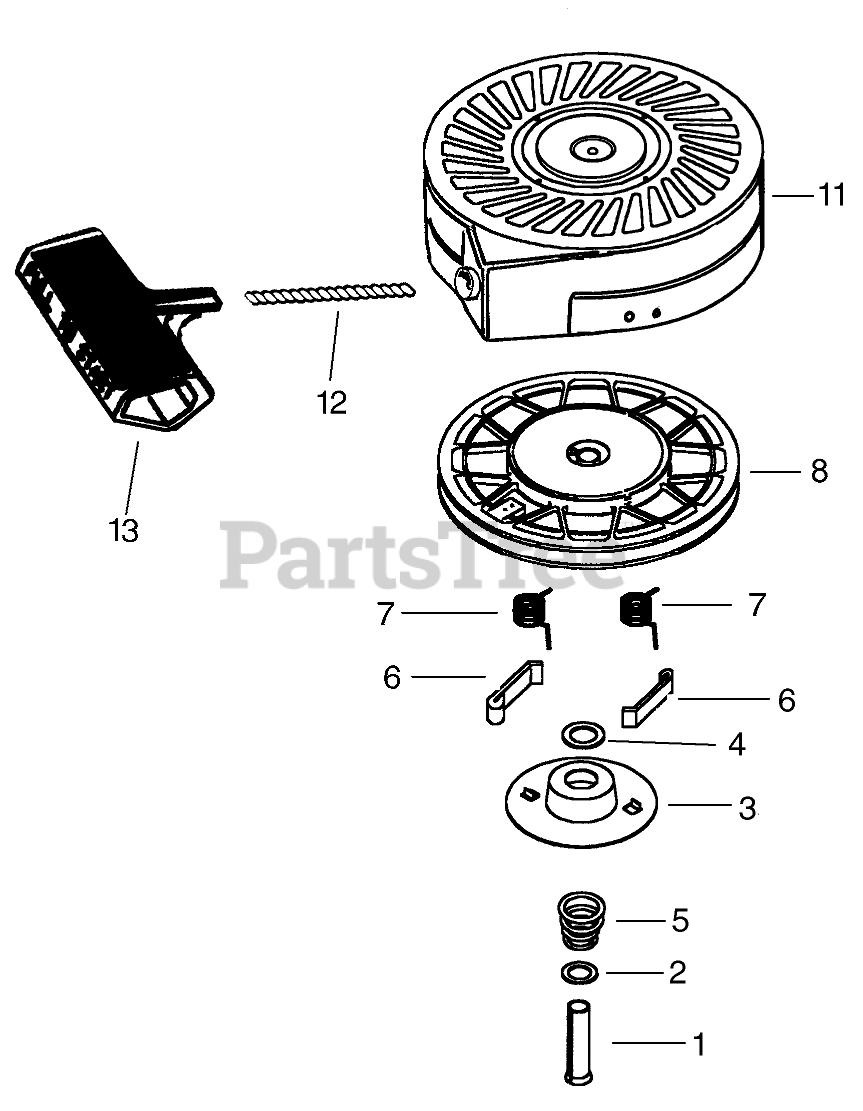

RECOIL STARTER ASSEMBLY NO. 590712 (OPTIONAL) TECUMSEH HSK635 TYPE 1723C Parts Diagram

  • Title

Tecumseh 590712

Rewind Starter Assembly (Optional)
(Superseded to 590784)

$50.99

$

Usually ships in 3-12 days

0

1

Tecumseh 590599A

Spring Pin ASM

$5.49

$

In Stock, only 3 left!

0

2

$1.99

$

In Stock, Qty 5

0

3

Tecumseh 590696

Retainer

$7.49

$

In Stock, only 1 left!

0

4

$1.99

$

In Stock, only 4 left!

0

5

Tecumseh 590697

Spring-Brake

$3.99

$

In Stock, only 1 left!

0

6

Tecumseh 590698

Dog-Starter

$6.99

$

In Stock, only 4 left!

0

7

Tecumseh 590699

Spring-Dog

$7.49

$

In Stock, only 2 left!

0

8

Tecumseh 590709

Pulley and Rewind Spring ASM

$18.99

$

In Stock, only 1 left!

0

11

Tecumseh 590713

Starter Housing Assembly

$

$

Not available

12

Tecumseh 590535

Rope-Starter (98 cut to length)

$9.49

$

In Stock, Qty 12

0

13

Tecumseh 590701

Handle-Starter (STD)

$6.49

$

In Stock, only 1 left!

0
