38182 - Toro 16" CCR Powerlite Snow Thrower (SN: 250010001 - 250999999) (2005) ENGINE, SIDE PLATE AND WHEEL ASSEMBLY Parts Diagram

16" CCR Powerlite Snow Thrower

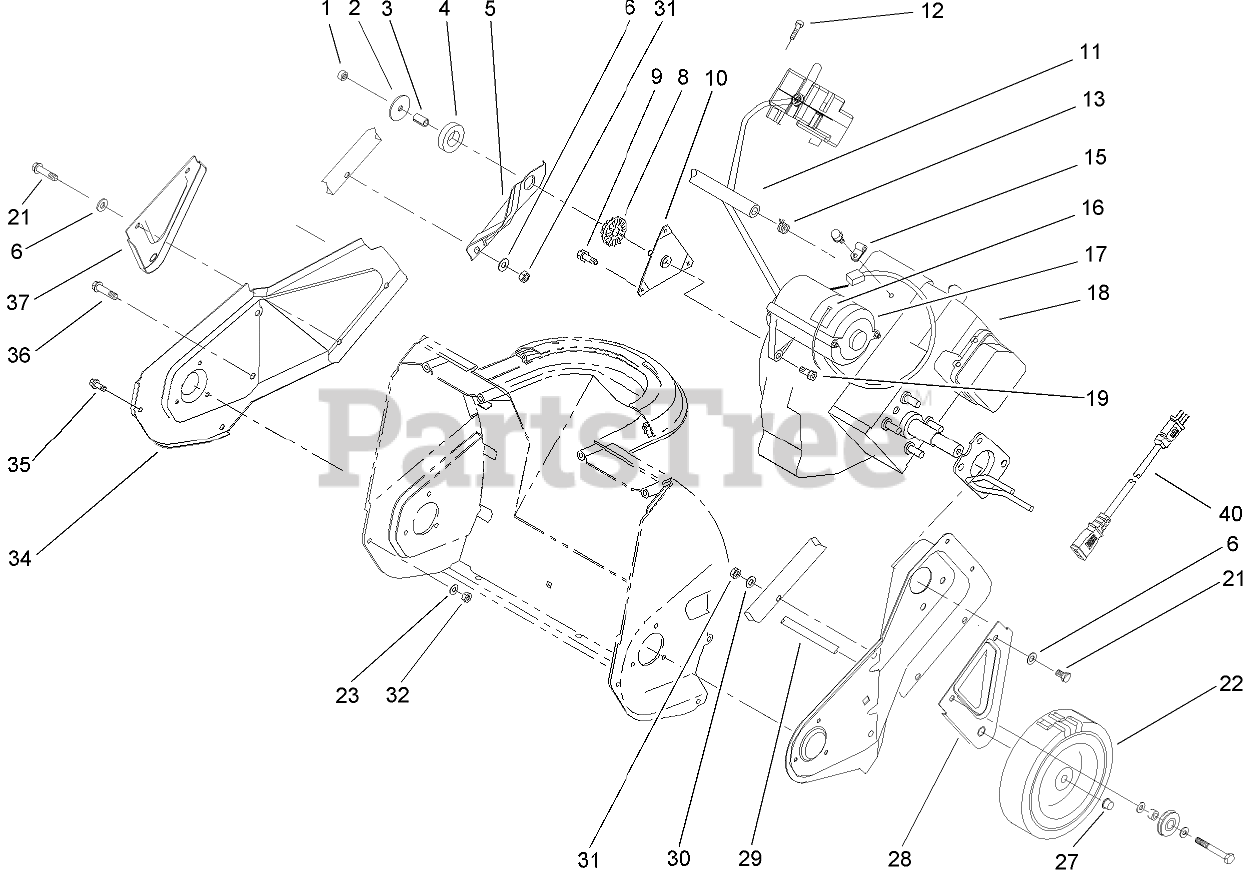

ENGINE, SIDE PLATE AND WHEEL ASSEMBLY Parts Diagram

  • Title
1

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

2

Toro 3256-58

WASHER-FLAT
(Superseded to 3256-55)

$5.49

$

In Stock, only 1 left!

0

3

Toro 80-0650

SPACER-TUBULAR

$5.49

$

Usually ships in 3-6 days

0

4

Toro 95-1903

RING-ISOLATOR

$3.49

$

Usually ships in 3-6 days

0

5

Toro 75-8980-03

BRACKET-SUPPORT, ENGINE

$

$

Not available

6

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 75-9100

BUSHING-ISOLATOR

$11.99

$

Usually ships in 3-6 days

0

9

Toro 94-2789

SCREW

$1.49

$

Usually ships in 3-6 days

0

10

Toro 92-6012

BRACKET AND STUD ASM

$12.99

$

Usually ships in 3-6 days

0

11

Toro 49-2483

LINE-GAS

$

$

Not available

12

Toro 32144-27

SCREW-PLASTITE

$7.49

$

Usually ships in 3-6 days

0

13

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

15

Toro 2412-91

CLAMP

$3.99

$

In Stock, only 2 left!

0

16

Toro 250-7

TIE-CABLE

$7.49

$

In Stock, only 1 left!

0

17

Toro 105-2953

120 VOLT STARTER ASM

$

$

Not available

18

Engine-Tecumseh, Hsk635-1723C

Note: Not serviced separately

$

$

Not available

19

Toro 80-0700

SCREW-HH, TORX

$2.99

$

In Stock, only 2 left!

0

21

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Toro 23-3250

WHEEL

$20.99

$

In Stock, Qty 7

0

23

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

28

Toro 75-8910-03

BRACKET-WHEEL, LH

$11.99

$

Usually ships in 3-6 days

0

29

$

$

Not available

30

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 14

0

31

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

32

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

34

Toro 75-8820-03

PLATE-SIDE, RH

$73.99

$

In Stock, only 1 left!

0

35

$1.49

$

In Stock, only 4 left!

0

36

Toro 46-8094

SCREW-PLASTIC
(Superseded to 137-3101)

$1.49

$

In Stock, Qty 6

0

37

Toro 75-8900-03

BRACKET-WHEEL, RH

$

$

Not available

40

Toro 106-4741

CORD-ELECTRIC

$

$

Not available
