38182 - Toro 16" CCR Powerlite Snow Thrower (SN: 220000001 - 220999999) (2002) MOTOR AND SWITCH HOUSING ASSEMBLY NO. 105-2953 (ONLY ON 38182)(120 VOLT) Parts Diagram

16" CCR Powerlite Snow Thrower

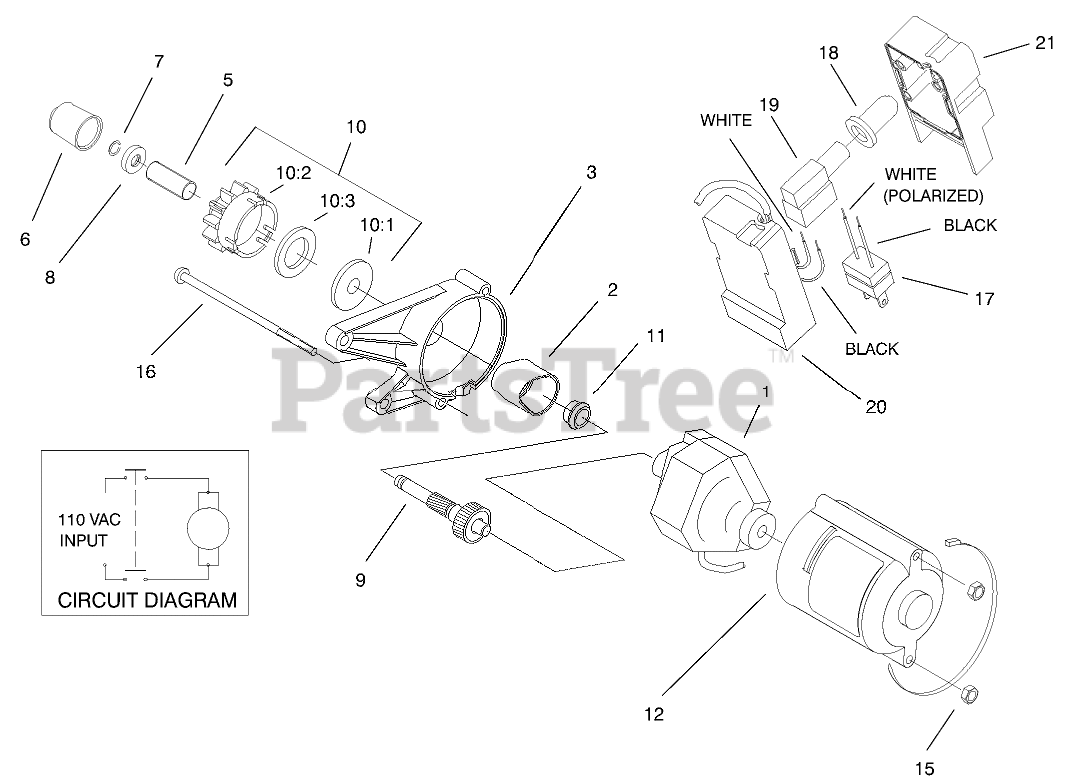

MOTOR AND SWITCH HOUSING ASSEMBLY NO. 105-2953 (ONLY ON 38182)(120 VOLT) Parts Diagram

  • Title

Toro 77-0400

Housing-Motor And Switch

Note: Not illustrated

$696.99

$

Usually ships in 3-6 days

0

1

Toro 70-7802

STARTER MOTOR ASM

$

$

Not available

2

Toro 70-7850

COVER-GEAR

$11.99

$

Usually ships in 3-6 days

0

3

Toro 100-3443

HOUSING-UPPER, STARTER

$27.99

$

In Stock, Qty 9

0

5

Toro 61-4690

SPRING

$

$

Not available

6

Toro 70-7890

CAP-PINION

$2.99

$

In Stock, only 1 left!

0

7

Toro 61-4680

RING-LOCK

$1.99

$

In Stock, Qty 20+

0

8

Toro 100-2902

STOP-PINION

$7.99

$

In Stock, Qty 5

0

9

Toro 95-1797

SHAFT/GEAR ASM
(Superseded to 105-8831)

$116.99

$

Usually ships in 3-6 days

0

10

Toro 84-5240

PINION ASM

$

$

Not available

10:1

Toro 70-7790

NUT

$

$

Not available

10:2

Toro 84-5230

PINION

$21.99

$

In Stock, only 1 left!

0

10:3

Toro 84-5440

RING-RUBBER

$11.99

$

In Stock, only 4 left!

0

11

Toro 70-7900

BUSHING

$3.49

$

In Stock, only 1 left!

0

12

Toro 100-3444

HOUSING-LOWER, STARTER

$

$

Not available

15

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Toro 32144-101

SCREW

$1.99

$

In Stock, only 4 left!

0

17

Toro 94-9933

PLUG-POWER

$7.99

$

In Stock, only 1 left!

0

18

Toro 36-8350

BOOT-SWITCH

$10.99

$

In Stock, Qty 6

0

19

Toro 36-8340

SWITCH-STARTER

$29.99

$

In Stock, only 4 left!

0

20

Toro 100-3441

SWITCH-BASE, HOUSING

$12.99

$

Usually ships in 3-6 days

0

21

Toro 100-3442

HOUSING-CAP, SWITCH

$12.99

$

Usually ships in 3-6 days

0
