38182 - Toro 16" CCR Powerlite Snow Thrower (SN: 200000001 - 200999999) (2000) HOUSING, UPPER SHROUD, & CHUTE ASSEMBLY Parts Diagram

16" CCR Powerlite Snow Thrower

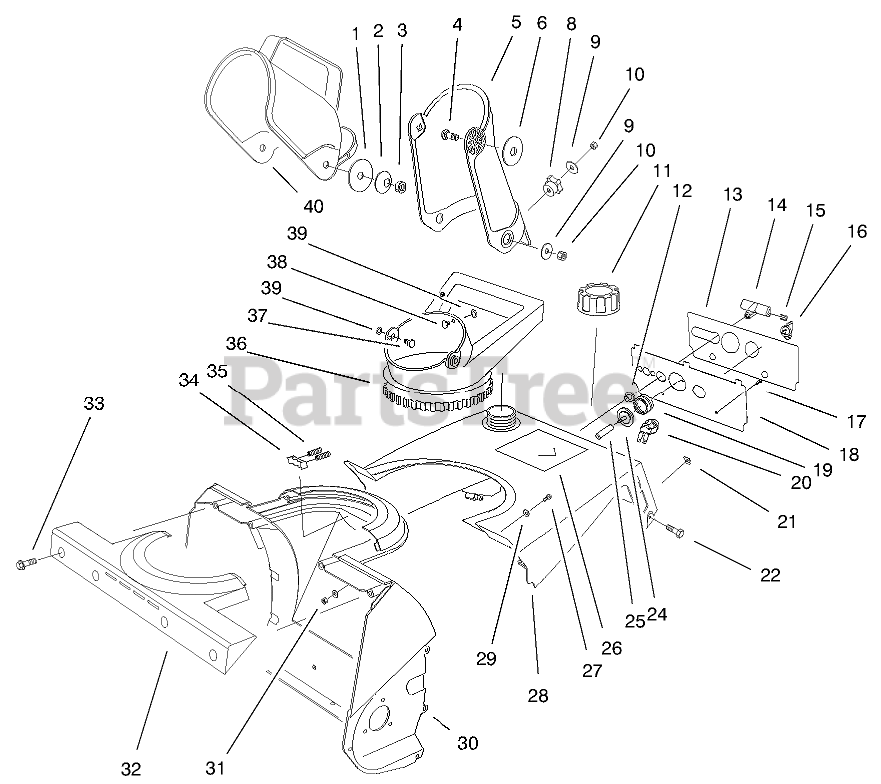

HOUSING, UPPER SHROUD, & CHUTE ASSEMBLY Parts Diagram

  • Title

1

Toro 3256-68

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

2

Toro 3290-340

WASHER-BELLEVILLE

$7.99

$

In Stock, Qty 10

0

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 14

0

4

Toro 3230-2

BOLT-CARR

$1.49

$

Usually ships in 3-6 days

0

5

Toro 75-8760

Chute
(Superseded to 115-5659)

$58.99

$

Usually ships in 3-6 days

0

6

Toro 95-1905

WASHER-RUBBER

$2.99

$

In Stock, Qty 8

0

8

Toro 233-67

KNOB-CHUTE

$8.99

$

In Stock, Qty 8

0

9

Toro 3256-81

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Toro 55-3573

CAP-FUEL ASM
(Superseded to 104-4133)

$14.99

$

In Stock, only 1 left!

0

12

Toro 23-7470

GUIDE-ROPE, STARTER

$20.99

$

Usually ships in 3-6 days

0

13

Toro 84-5420

Decal (only on: 38170, 38172)
(Superseded to 104-2765)

$

$

Not available

13

Toro 84-5430

Decal (only on: 38182)
(Superseded to 104-2766)

$

$

Not available

14

Toro 92-4853

HANDLE-STARTER

$8.49

$

In Stock, only 3 left!

0

15

Toro 92-5424

STAPLE-HANDLE

$1.49

$

In Stock, Qty 5

0

16

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

17

Toro 32144-53

SCREW-SHWH, THREAD FORMING

$3.49

$

In Stock, Qty 10

0

18

Toro 75-9031-03

Panel-Control (only on: 38170, 38172)

$14.99

$

Usually ships in 3-6 days

0

18

Toro 75-9030-03

Panel-Control (only on: 38182)

$

$

Not available

19

Toro 66-7460

BULB-PRIMER

$6.49

$

In Stock, Qty 20+

0

20

Toro 40-5940

SWITCH

$15.99

$

In Stock, only 1 left!

0

21

Toro 49-1490

NUT

$3.99

$

In Stock, only 2 left!

0

22

Toro 32144-89

SCREW-THREAD FORMING

$1.99

$

In Stock, Qty 6

0

24

Toro 44-2750

BODY-PRIMER

$8.99

$

In Stock, Qty 20+

0

25

Toro 44-3173

HOSE-PRIMER

$4.99

$

In Stock, only 1 left!

0

26

Toro 99-9331

Decal-Powerlite Rec.3.25 HP (only on: 38172)
(Superseded to 106-4723)

$45.99

$

Usually ships in 3-6 days

0

26

Toro 99-9332

Decal-Powerlite Rec. Ele 3.25 HP (only on: 38182)
(Superseded to 106-4724)

$14.99

$

Usually ships in 3-6 days

0

26

Toro 100-3436

Decal-Powerlite Rec. (only on: 38170)

$

$

Not available

27

Toro 3250-32

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

28

Toro 75-8800

Shroud-Upper
(Superseded to 105-2994)

$164.99

$

In Stock, only 2 left!

0

29

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Toro 75-8660

HOUSING

$174.99

$

Usually ships in 3-6 days

0

31

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

32

Toro 75-8650

RETAINER-CHUTE

$54.99

$

Usually ships in 3-6 days

0

33

Toro 46-8094

SCREW-PLASTIC
(Superseded to 137-3101)

$1.49

$

In Stock, Qty 7

0

34

Toro 75-9160

DETENT-CHUTE

$6.99

$

In Stock, Qty 8

0

35

Toro 75-9170

SPRING-COMPRESSION

$0.99

$

In Stock, Qty 20+

0

36

Toro 75-8670

HANDLE-CHUTE

$46.99

$

Usually ships in 3-6 days

0

37

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

38

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

39

Toro 32115-15

PUSHNUT-RETAINER, BOLT

$1.49

$

In Stock, Qty 20+

0

40

Toro 75-8770

DEFLECTOR-CHUTE

$31.99

$

Usually ships in 3-6 days

0
