38180 (CCR 2000) - Toro Snow Thrower (SN: 010000001 - 019999999) (1991) RECOIL STARTER ASSEMBLY (ENGINE MODEL NO. 47PL0-4, 47PK9-4, 47PH7-4) Parts Diagram

Snow Thrower

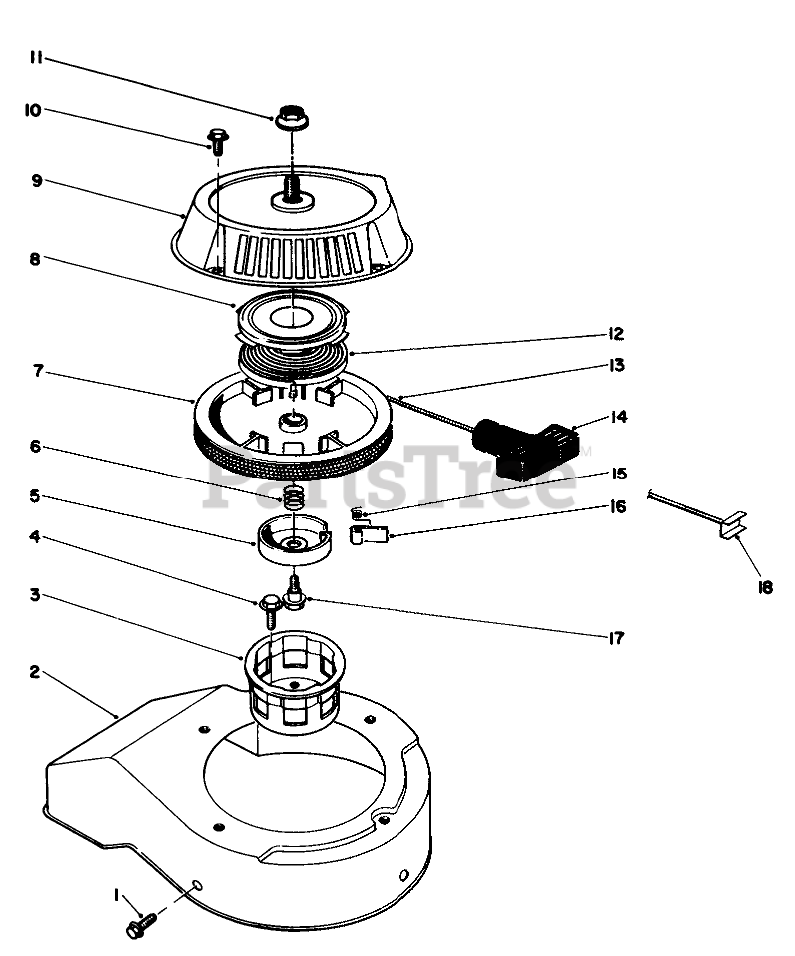

RECOIL STARTER ASSEMBLY (ENGINE MODEL NO. 47PL0-4, 47PK9-4, 47PH7-4) Parts Diagram

  • Title

1

Toro 53-1349

Bolt

$

$

Currently unavailable

2

Toro 81-0310

BLOWER SHROUD

$

$

Not available

3

Toro 81-1290

CUP - STARTER

$25.99

$

Usually ships in 3-6 days

0

4

Toro 82-1300

WASHER-FLAT HD, TREATED

$

$

Not available

5

Toro 81-1250

RETAINER

$24.99

$

In Stock, only 1 left!

0

6

Toro 81-1240

SPRING

$

$

Not available

7

Toro 81-1210

REEL

$54.99

$

In Stock, only 2 left!

0

8

Retainer-Recoil Spring

$

$

Not available

9

Toro 81-0290

RECOIL CASE

$

$

Not available

10

Toro 81-0390

MOUNTING SCREW

$2.99

$

Usually ships in 3-6 days

0

11

Toro 81-0300

NUT (F/W & PPP)

$

$

Not available

12

Spring-Recoil

$

$

Not available

13

Toro 81-2870

Rope
(Superseded to 613773)

$34.99

$

Usually ships in 3-6 days

0

14

Toro 81-1630

HANDLE-RECOIL

$21.99

$

Usually ships in 3-6 days

0

15

Toro 81-1220

SPRING

$

$

Not available

16

Toro 81-1230

DOG

$

$

Not available

17

Toro 81-1260

BOLT

$

$

Not available

18

Toro 81-5760

Insert Handle

$

$

Not available

Toro 81-0280

Starter Assembly (Incl. Ref. No. 5-9, & 12-17)

$

$

Not available

Toro 81-2300

Recoil Spring & Retainer Assembly (Incl. Ref. #8 & 12)

$43.99

$

Usually ships in 3-6 days

0
