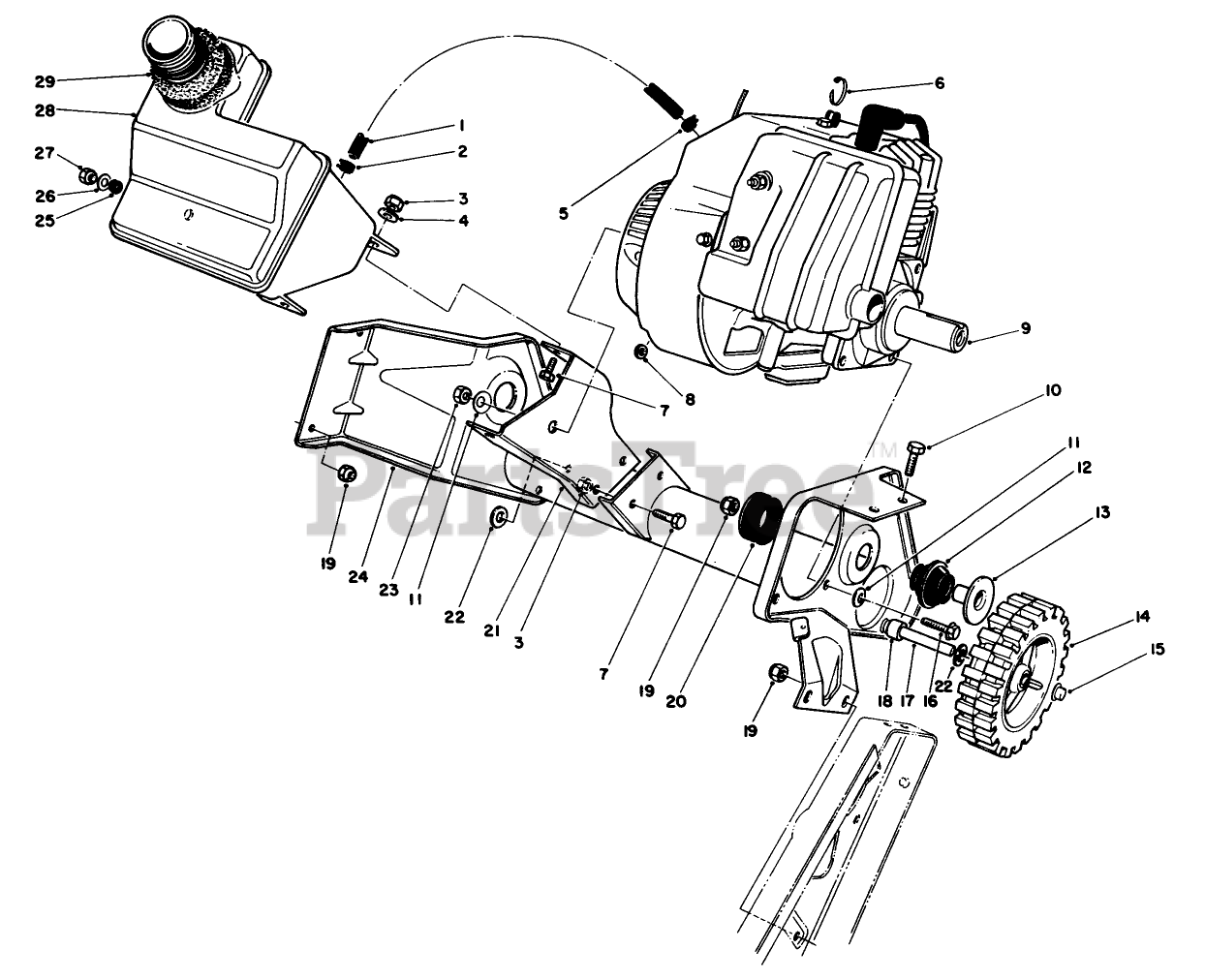

38180 (CCR 2000) - Toro Snow Thrower (SN: 008000001 - 008999999) (1988) ENGINE & MAIN FRAME ASSEMBLY Parts Diagram

Snow Thrower

ENGINE & MAIN FRAME ASSEMBLY Parts Diagram

  • Title
1

Toro 49-2480

GasLine
(Superseded to 49-2481)

$7.99

$

In Stock, Qty 11

0

2

Toro 2412-86

Clamp
(Superseded to 2412-98)

$1.49

$

In Stock, Qty 20+

0

3

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

4

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 2412-80

CLAMP-HOSE

$5.49

$

In Stock, only 3 left!

0

6

Toro 250-4

TIE-CABLE

$0.99

$

Usually ships in 3-6 days

0

7

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro 55-9620

SPACER-PLATE, PIVOT

$1.49

$

Usually ships in 3-6 days

0

9

Toro 62-6720

Engine Assembly
(Superseded to 95-7912)

$1073.99

$

Usually ships in 3-6 days

0

10

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 20+

0

12

Toro 55-9460

MOUNT-REBOUND

$

$

Not available

13

Toro 55-9470

SPACER TUBE

$

$

Not available

14

Toro 63-3660

WHEEL
(Superseded to 114-9292)

$109.99

$

In Stock, only 2 left!

0

15

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

16

$9.49

$

In Stock, only 3 left!

0

17

$

$

Not available

18

Toro 55-9630

WHEEL SPACER

$

$

Not available

19

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 55-9450

LOAD MOUNT

$

$

Not available

21

Toro 55-9070

Support-Recoil
(Superseded to 94-9918-03)

$20.99

$

Usually ships in 3-6 days

0

22

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 81-0300

NUT (F/W & PPP)

$

$

Not available

24

Toro 63-3650

Frame Assembly

$

$

Not available

25

Toro 237-89

GROMMET-RUBBER

$3.49

$

In Stock, only 4 left!

0

26

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

27

Toro 32152-8

NUT-LOCK, CONE

$3.49

$

In Stock, only 1 left!

0

28

Toro 12-4669

Tank-Fuel (Incl. Ref. #25)
(Superseded to 105-8953)

$65.99

$

In Stock, Qty 7

0

29

Toro 55-9310

SEAL-FOAM

$

$

Not available
