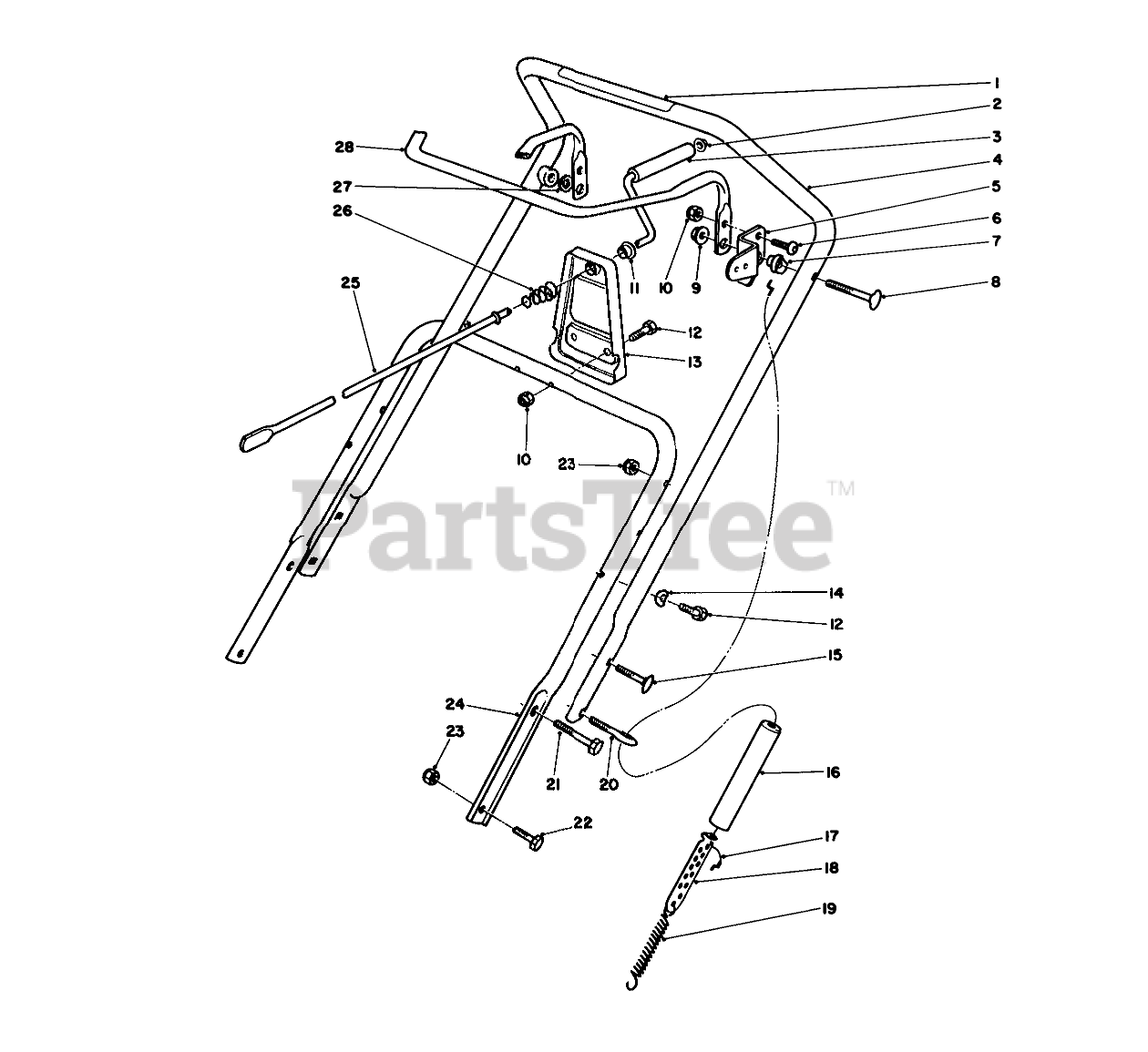

38180 (CCR 2000) - Toro Snow Thrower (SN: 007000001 - 007999999) (1987) HANDLE ASSEMBLY Parts Diagram

Snow Thrower

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 55-9640

Decal-Rotor Drive
(Superseded to 104-2775)

$4.49

$

Usually ships in 3-6 days

0

Toro 60-9470

ROTOR DRIVE DECAL

Note: Not illustrated

$

$

Not available

2

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

3

Toro 40-8230

GRIP-CONTROL, CHUTE

$16.99

$

Usually ships in 3-6 days

0

4

Toro 12-2929

Upper Handle Assembly (Incl. Ref. #1) (Model 38180)
(Superseded to 95-2669)

$147.99

$

Usually ships in 3-6 days

0

Toro 12-4639

Upper Handle Assembly (Incl. Ref. #1) (Model 38180C)

Note: Not illustrated

$

$

Not available

5

Toro 55-9100

Arm-Clutch Cable
(Superseded to 55-9100-03)

$21.99

$

Usually ships in 3-6 days

0

6

Toro 3274-31

SCREW-HSBH

$1.49

$

In Stock, only 3 left!

0

7

Toro 55-9340

SPACER-BAR, CONTROL

$4.99

$

Usually ships in 3-6 days

0

8

Toro 17-9420

SCREW-HANDLE

$3.99

$

Usually ships in 3-6 days

0

9

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 1 left!

0

10

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

11

Toro 256-249

Bushing
(Superseded to 5979)

$3.49

$

In Stock, Qty 9

0

12

Toro 321-13

SCREW-HH

$4.49

$

In Stock, Qty 10

0

13

Toro 55-9090

Support-Crank
(Superseded to 55-9090-03)

$

$

Not available

14

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 14

0

15

Toro 17-9424

SCREW
(Superseded to 6-6330)

$

$

Not available

16

Toro 55-9390

COVER-SPRING

$9.99

$

In Stock, only 3 left!

0

17

Toro 55-9320

CLUTCH CABLE

$

$

Not available

18

Toro 55-9380

ADJUSTER-CABLE

$9.49

$

In Stock, only 2 left!

0

19

Toro 55-9270

SPRING-EXTENSION

$6.99

$

In Stock, only 4 left!

0

20

Toro 55-9420

BOLT-EYE

$11.99

$

In Stock, only 2 left!

0

21

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

22

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

23

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

24

Toro 55-9120

LOWER HANDLE

$

$

Not available

25

Toro 55-9140

ROD-CRANK, CHUTE

$

$

Not available

26

Toro 55-9440

SPRING-COMPRESSION

$

$

Not available

27

Toro 55-9670

WASHER

$2.49

$

Usually ships in 3-6 days

0

28

Toro 55-9130

Bar-Control
(Superseded to 55-9130-03)

$

$

Not available
