38180 (CCR 2000) - Toro Snow Thrower (SN: 000007974 - 000008194) (1990) HOUSING ASSEMBLY Parts Diagram

Snow Thrower

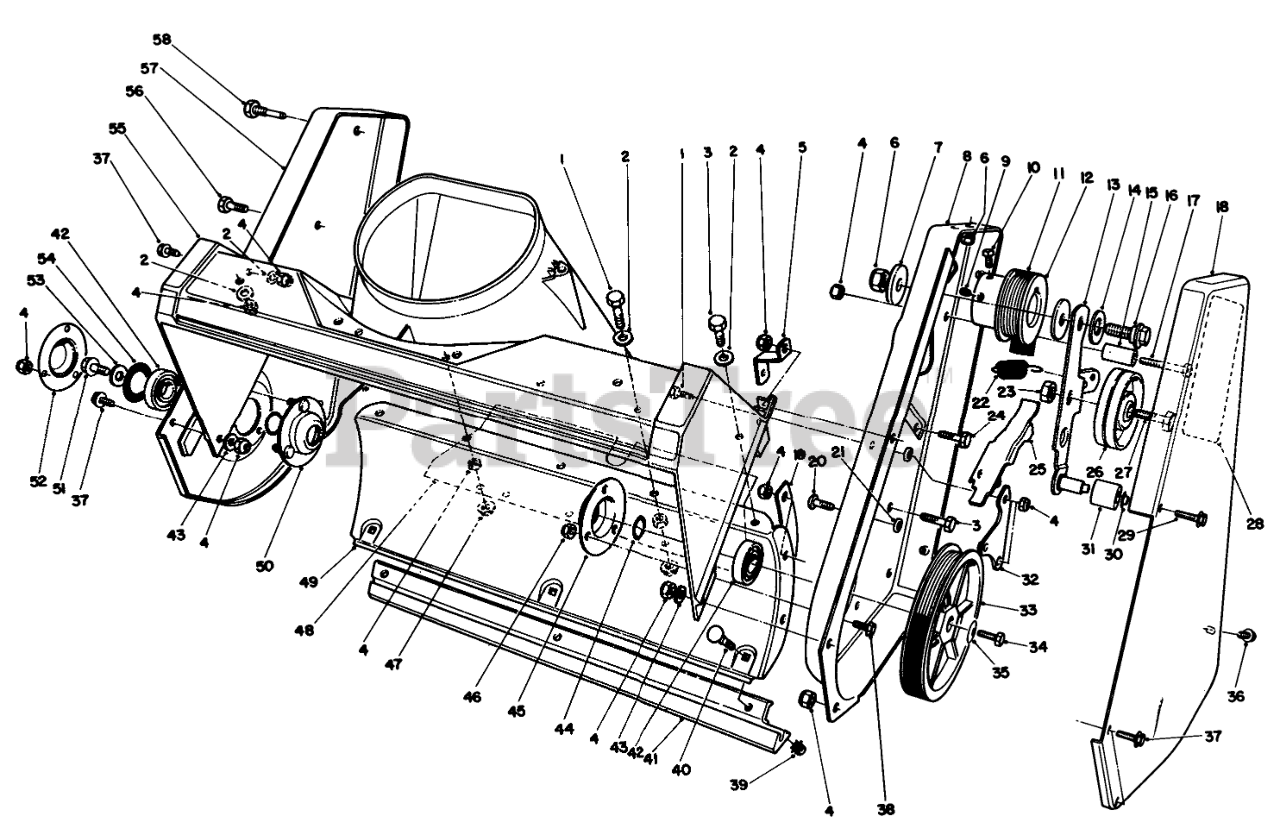

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

2

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

5

Toro 55-9430

BRACKET-HOUSING

$7.99

$

Usually ships in 3-6 days

0

6

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 6

0

8

Toro 55-8850

Sideplate-L.H.
(Superseded to 55-8851-03)

$109.99

$

Usually ships in 3-6 days

0

9

Toro 3245-41

SCREW-HSH

$2.99

$

In Stock, only 3 left!

0

10

Toro 3241-7

SCREW-SQH

$3.99

$

In Stock, only 2 left!

0

11

Toro 55-9300

BELT - DRIVE

$25.99

$

In Stock, only 4 left!

0

12

Toro 55-9180

ENGINE PULLEY

$

$

Not available

13

Toro 12-8279

Idler Arm Assembly (Incl. Ref. #29 & 30)

$

$

Not available

14

Toro 25-5640

WASHER

$1.99

$

Usually ships in 3-6 days

0

15

Toro 55-9530

SLEEVE-GUIDE, BELT

$9.49

$

In Stock, Qty 5

0

16

Toro 27-0410

SCREW-SHOULDER

$2.99

$

In Stock, Qty 5

0

17

Toro 321-13

SCREW-HH

$4.49

$

In Stock, Qty 10

0

18

Toro 55-9010

Cover-Drive
(Superseded to 16-9449)

$

$

Not available

19

Toro 56-2610

BRACKET-HOUSING, LOWER

$21.99

$

In Stock, Qty 5

0

20

Toro 3274-31

SCREW-HSBH

$1.49

$

In Stock, only 3 left!

0

21

Toro 55-9620

SPACER-PLATE, PIVOT

$1.49

$

Usually ships in 3-6 days

0

22

Toro 55-9280

SPRING-EXTENSION

$6.99

$

In Stock, Qty 8

0

23

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

24

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

25

Toro 55-9550

BRAKE-ARM

$

$

Not available

26

Toro 55-9290

PULLEY-IDLER

$25.99

$

Usually ships in 3-6 days

0

27

Toro 323-29

SCREW-HH

$0.99

$

In Stock, Qty 6

0

28

Toro 60-9480

DECAL

$6.49

$

Usually ships in 3-6 days

0

29

Toro 36-3860

SCREW-HWH, TAP

$2.49

$

In Stock, Qty 15

0

30

Toro 32112-11

NUT-PUSH

$1.49

$

In Stock, only 3 left!

0

31

Toro 55-9520

ROLLER-BRAKE

$2.99

$

In Stock, Qty 16

0

32

Toro 55-9570

PIVOT PLATE ASM

$19.99

$

Usually ships in 3-6 days

0

33

Toro 60-9320

ROTOR PULLEY ASY

$

$

Not available

34

Toro 321-30

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

35

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

36

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

37

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 14

0

38

Toro 32105-8

SCREW-SHH

$2.49

$

In Stock, only 1 left!

0

39

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

40

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

41

Toro 55-8760

SCRAPER

$33.99

$

In Stock, Qty 20+

0

42

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 18

0

43

Toro 3256-67

WASHER-FLAT

$0.99

$

In Stock, Qty 9

0

44

Toro 52-7280

WASHER-THRUST

$5.49

$

In Stock, Qty 20+

0

45

Toro 38-8620

FLANGE-BEARING

$

$

Not available

46

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

47

Toro 32128-10

NUT-LOCK, HHF

$0.99

$

In Stock, Qty 20+

0

48

Toro 55-9512

COVER-BOTTOM

$21.99

$

In Stock, only 1 left!

0

49

Toro 55-9220

Housing-Lower
(Superseded to 119-1551)

$86.99

$

In Stock, Qty 16

0

50

Toro 52-9110

FLANGE-BEARING

$24.99

$

In Stock, only 4 left!

0

51

Toro 3234-25

SCREW-HHF

$8.49

$

Usually ships in 3-6 days

0

52

Toro 52-7290

Trough
(Superseded to 52-7290-03)

$23.99

$

Usually ships in 3-6 days

0

53

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

54

Toro 52-7270

WASHER-RUBBER

$4.49

$

In Stock, only 2 left!

0

55

Toro 55-8700

HOUSING

$

$

Not available

56

Toro 322-43

SCREW-HH

$1.49

$

In Stock, only 3 left!

0

57

Toro 55-8840

Sideplate-RH
(Superseded to 55-8840-03)

$

$

Not available

58

Toro 38-8211

PIN-ROTOR

$6.99

$

Usually ships in 3-6 days

0
