38180 C (CCR 2000) - Toro Snow Thrower (SN: 007000001 - 007999999) (1987) CONTROL PANEL & SHROUDING ASSEMBLY Parts Diagram

Snow Thrower

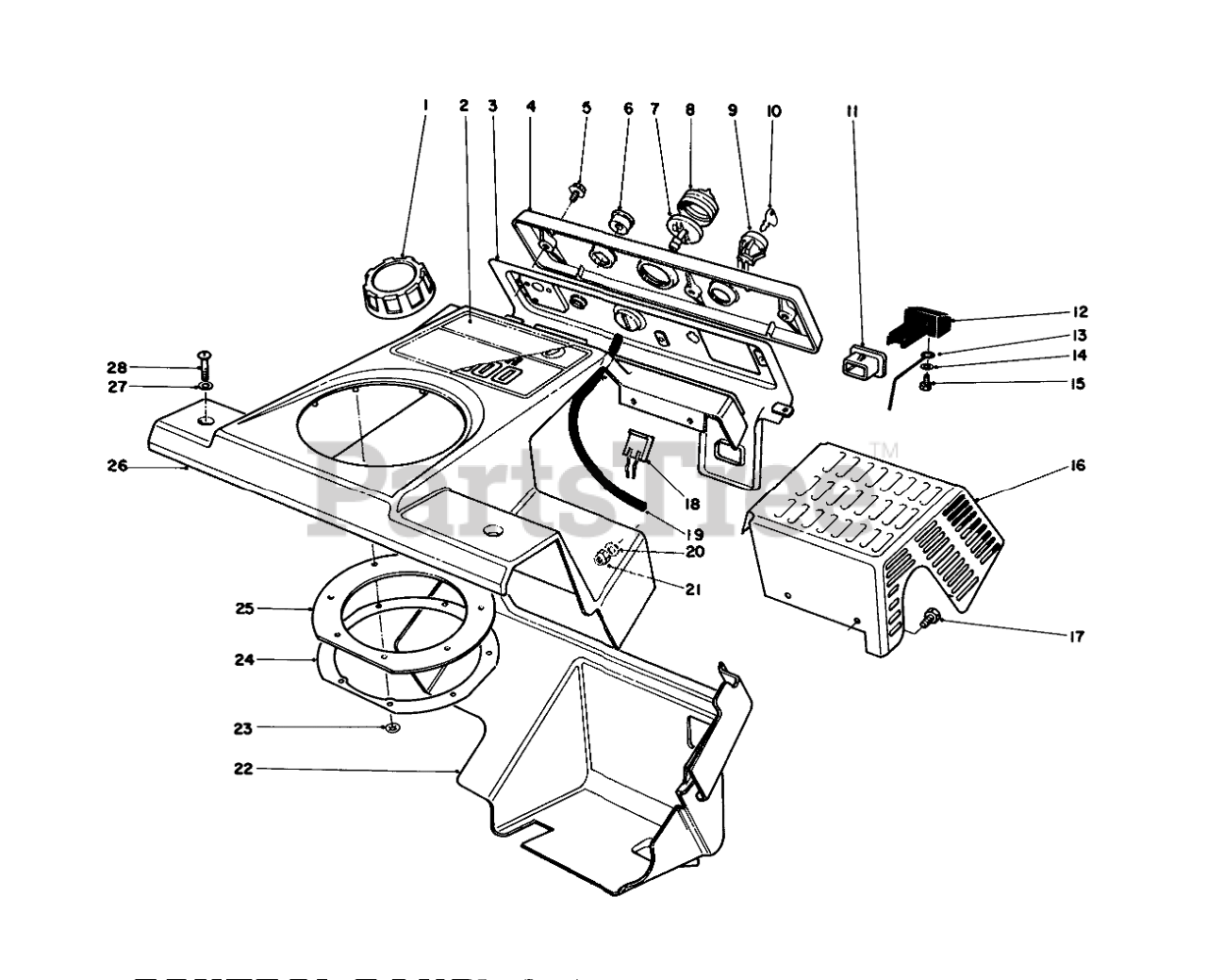

CONTROL PANEL & SHROUDING ASSEMBLY Parts Diagram

  • Title
1

Toro 55-3573

CAP-FUEL ASM
(Superseded to 104-4133)

$16.99

$

Usually ships in 3-6 days

0

2

Toro 55-9480

Decal-CCR-2000
(Superseded to 72-9970)

$

$

Not available

3

Toro 12-4659

Control Panel Assembly (Incl. Ref. #68 & 11)

$

$

Not available

4

Toro 55-9350

CONTROL NAMEPLATE
(Superseded to 104-2771)

$

$

Not available

Toro 60-9490

CONT NAMEPLATE-INTL

Note: Not illustrated

$

$

Not available

5

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

6

Toro 55-9410

GUIDE-ROPE, STARTER

$16.99

$

Usually ships in 3-6 days

0

7

Toro 44-2750

BODY-PRIMER

$8.99

$

In Stock, Qty 20+

0

8

Toro 44-3100

Bulb Primer
(Superseded to 66-7460)

$6.49

$

In Stock, Qty 20+

0

9

Toro 40-5940

SWITCH

$15.99

$

In Stock, only 1 left!

0

10

Toro 33-2010

Key
(Superseded to 62-7770)

$4.99

$

In Stock, only 1 left!

0

11

Toro 55-8820

FITTING

$9.99

$

In Stock, only 3 left!

0

12

Toro 55-8810

CONTROL-CHOKE

$14.99

$

In Stock, only 3 left!

0

Toro 55-8811

CHOKE CONTROL

Note: Not illustrated

$

$

Not available

13

Toro 55-9160

Linkage-Choke
(Superseded to 94-2797)

$29.99

$

In Stock, Qty 20+

0

14

Toro 38-5710

Washer
(Superseded to 3256-49)

$0.99

$

In Stock, Qty 8

0

15

Toro 32104-130

#8 X .625" PHILPS PAN H

$1.99

$

Usually ships in 3-6 days

0

16

Toro 55-9210

Wa-Shield
(Superseded to 55-9210-03)

$

$

Not available

17

Toro 32105-8

SCREW-SHH

$2.49

$

In Stock, only 1 left!

0

18

Toro 218-532

CONNECTOR-BODY

$15.99

$

Usually ships in 3-6 days

0

19

Toro 44-3171

PRIMER HOSE

$10.99

$

In Stock, only 3 left!

0

20

Toro 55-9660

WASHER

$

$

Not available

21

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 17

0

22

Toro 55-8790

Shroud-Lower
(Superseded to 55-8791)

$

$

Not available

23

Toro 32112-12

Pushnut
(Superseded to 3290-474)

$0.99

$

In Stock, Qty 9

0

24

Toro 55-9540

Retainer-Chute Seal
(Superseded to 55-9540-03)

$21.99

$

Usually ships in 3-6 days

0

25

Toro 55-9260

SEAL-CHUTE
(Superseded to 105-3543)

$15.99

$

In Stock, only 1 left!

0

26

Toro 12-4649

Upper Shroud Assembly (Incl. Ref. #2 & 23-25)
(Superseded to 94-2796)

$

$

Not available

27

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro 3250-32

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0
