38178 - Toro CCR Powerlite Snow Thrower (SN: 099000001 - 099999999) (1999) MOTOR & SWITCH HOUSING ASSEMBLY (230 VOLT)(MODEL NO. 38178) Parts Diagram

CCR Powerlite Snow Thrower

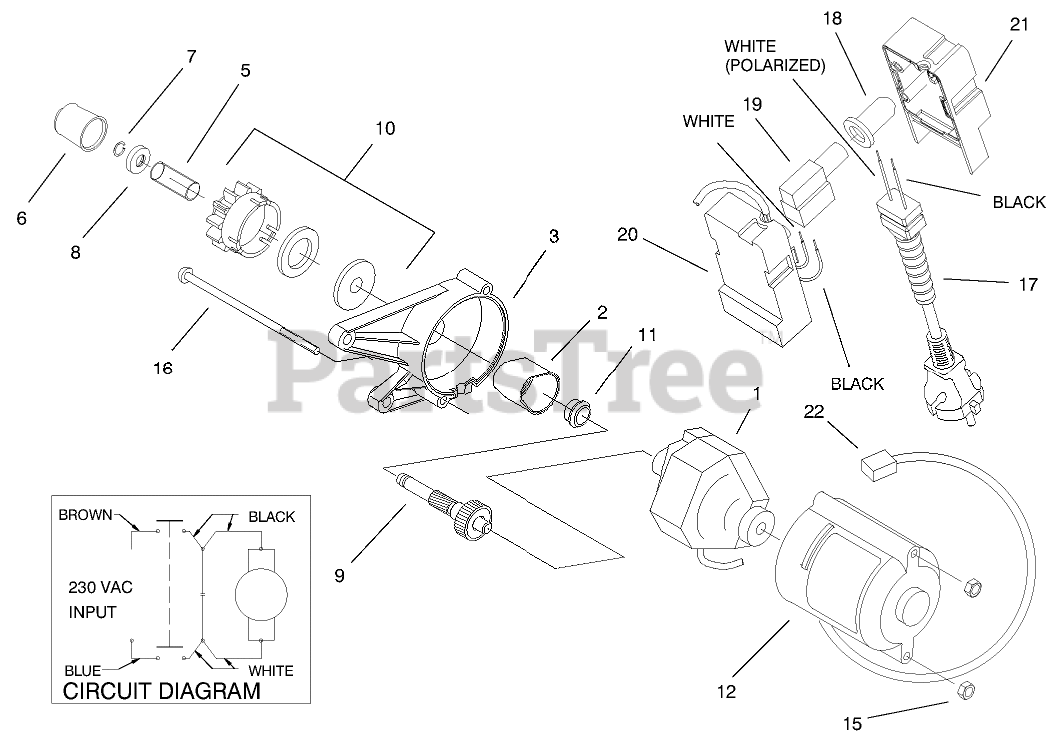

MOTOR & SWITCH HOUSING ASSEMBLY (230 VOLT)(MODEL NO. 38178) Parts Diagram

  • Title

1

Toro 99-1917

MOTOR-STARTER
(Superseded to 105-2957)

$

$

Not available

2

Toro 70-7850

COVER-GEAR

$11.99

$

Usually ships in 3-6 days

0

3

Toro 70-7810

Housing-Starter
(Superseded to 100-3443)

$27.99

$

In Stock, Qty 9

0

5

Toro 61-4690

SPRING

$

$

Not available

6

Toro 70-7890

CAP-PINION

$2.99

$

In Stock, only 1 left!

0

7

Toro 61-4680

RING-LOCK

$1.99

$

In Stock, Qty 20+

0

8

Toro 61-4670

PINION STOP

$14.99

$

In Stock, only 4 left!

0

9

Toro 92-6003

Asm-shaft & Gear
(Superseded to 105-8831)

$116.99

$

Usually ships in 3-6 days

0

10

Toro 84-5240

PINION ASM

$

$

Not available

11

Toro 70-7900

BUSHING

$3.49

$

In Stock, only 1 left!

0

12

Toro 70-7820

HOUSING COVER

$

$

Not available

15

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Toro 32144-101

SCREW

$1.99

$

In Stock, only 4 left!

0

17

Toro 98-2259

PLUG - POWER

$

$

Not available

18

Toro 61-4810

BOOT-SWITCH

$

$

Not available

19

Toro 61-4820

SWITCH-STARTER

$18.99

$

In Stock, only 3 left!

0

20

Toro 98-2253

BASE - SWITCH HOUSING

$

$

Not available

21

Toro 98-2254

Cap-Switch Hsg
(Superseded to 100-3442)

$12.99

$

Usually ships in 3-6 days

0

22

Toro 250-7

TIE-CABLE

$7.49

$

In Stock, only 1 left!

0
