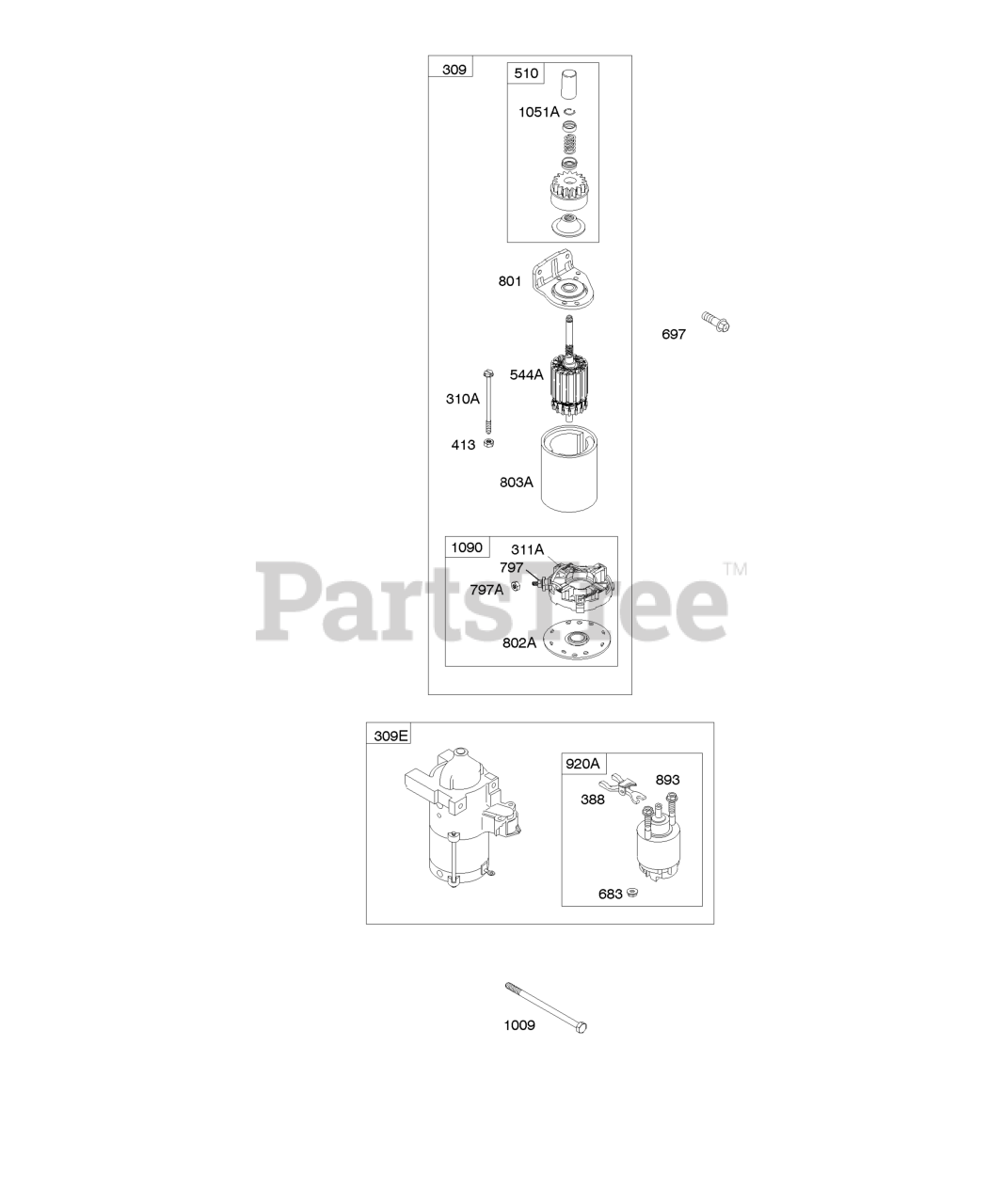

381777-0115-E1 - Briggs & Stratton Vertical Engine Electric Starters Parts Diagram

Vertical Engine

Electric Starters Parts Diagram

  • Title

309

Briggs & Stratton 691564

Motor-Starter

$184.99

$

In Stock, Qty 7

0

310A

Briggs & Stratton 690323

BOLT

Note: (Starter Motor)

$4.49

$

In Stock, Qty 7

0

311A

Briggs & Stratton 497608

Brush Set

$27.99

$

In Stock, only 3 left!

0

388

Briggs & Stratton 820799

Lever-Pinion Drive

$30.99

$

Usually ships in 2-12 days

0

413

Briggs & Stratton 693587

Nut

Note: (Starter Motor)

$4.99

$

Usually ships in 2-12 days

0

510

Briggs & Stratton 496881

Drive-Starter

$61.99

$

Usually ships in 2-12 days

0

544A

Briggs & Stratton 693548

Armature-Starter

$116.99

$

Usually ships in 2-12 days

0

683

Briggs & Stratton 820813

Nut

Note: (Starter Solenoid)

$4.99

$

Usually ships in 2-12 days

0

697

Briggs & Stratton 692062

Screw

Note: (Drive Cap)

$3.49

$

In Stock, Qty 20+

0

797

Briggs & Stratton 693167

NUT

Note: (Brush Retainer) (Starter Terminal)

$4.49

$

Usually ships in 2-12 days

0

797A

Briggs & Stratton 691029

NUT

Note: (Brush Retainer) (Starter Terminal)

$5.49

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 808778

Cap-Drive

$28.99

$

Usually ships in 2-12 days

0

802A

Briggs & Stratton 691286

CAP, End

$26.99

$

Usually ships in 2-12 days

0

803A

Briggs & Stratton 693547

Housing-Starter

$55.99

$

Usually ships in 2-12 days

0

893

Briggs & Stratton 820805

Nut

Note: (Starter Solenoid)

$4.99

$

Usually ships in 2-12 days

0

920A

Briggs & Stratton 825418

Solenoid-Starter

$

$

Not available

1009

Briggs & Stratton 806474

Screw

Note: (Starter Motor)

$5.49

$

Usually ships in 2-12 days

0

1051A

Briggs & Stratton 691124

Ring-Retaining

$7.99

$

Usually ships in 2-12 days

0

1090

Briggs & Stratton 691293

RETAINER, Brush

$29.99

$

In Stock, Qty 6

0
