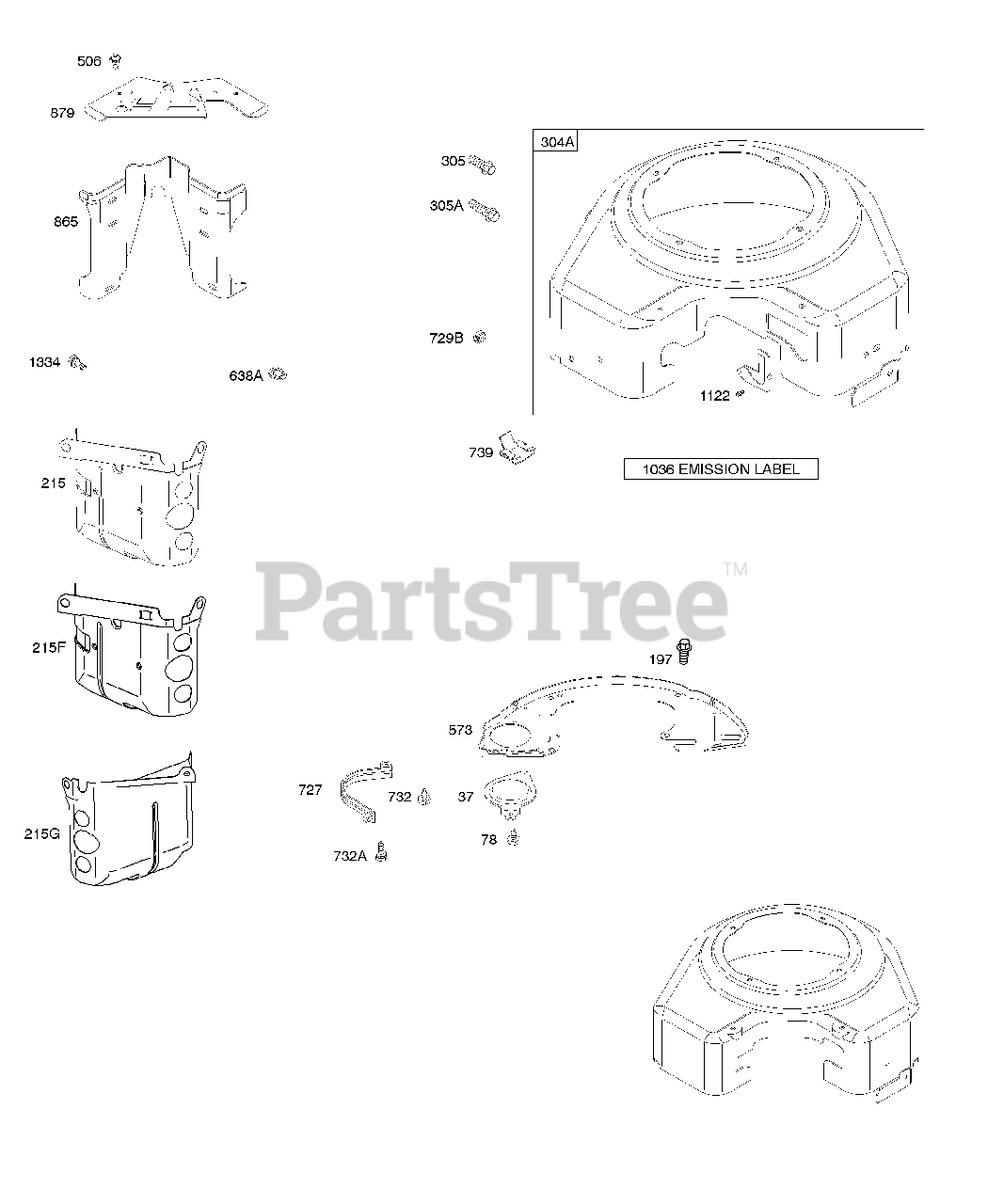

381777-0112-E1 - Briggs & Stratton Vertical Engine Blower Housing, Air Guides Parts Diagram

Vertical Engine

Blower Housing, Air Guides Parts Diagram

  • Title

37

Briggs & Stratton 841309

Guard-Flywheel

$7.99

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 690688

Screw

Note: (Flywheel Guard)

$3.49

$

Usually ships in 2-12 days

0

197

Briggs & Stratton 807163

Screw

Note: (Back Plate)

$3.99

$

In Stock, only 2 left!

0

215

Briggs & Stratton 841232

Guide-Air
(Superseded to 841183)

Note: (Cylinder #1)

$40.99

$

Usually ships in 2-12 days

0

215F

Briggs & Stratton 841182

Guide-Air

Note: (Cylinder #2) Used After Code Date 03103100

$35.99

$

Usually ships in 2-12 days

0

215G

Briggs & Stratton 806546

Guide-Air
(Superseded to 841182)

Note: (Cylinder #2) Used Before Code Date 03110100

$35.99

$

Usually ships in 2-12 days

0

304A

Briggs & Stratton 808651

Housing-Blower

Note: (Black)

$172.99

$

Usually ships in 2-12 days

0

304A

Briggs & Stratton 808658

Housing-Blower
(Superseded to 808651)

Note: (Red)

$172.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 692056

Screw

Note: (Blower Housing) (M8x14mm Long)

$5.99

$

In Stock, Qty 5

0

305A

Briggs & Stratton 692062

Screw

Note: (Blower Housing) (M8X18mm Long)

$3.49

$

In Stock, Qty 20+

0

506

Briggs & Stratton 690677

SCREW

Note: (Carburetor Cover)

$3.99

$

In Stock, only 2 left!

0

573

Briggs & Stratton 841310

Plate-Back

$24.99

$

Usually ships in 2-12 days

0

638A

Briggs & Stratton 691551

Washer

Note: (Cylinder Head Cover) Used Before Code Date 03110100

$4.99

$

In Stock, only 1 left!

0

727

Briggs & Stratton 841313

Cover-Starter Drive

$16.99

$

Usually ships in 2-12 days

0

729B

Briggs & Stratton 690586

Clip-Wire

$3.99

$

In Stock, only 3 left!

0

732

Briggs & Stratton 690688

Screw

Note: (Starter Drive Cover)

$3.49

$

Usually ships in 2-12 days

0

739

Briggs & Stratton 690451

Clip-Debris

$2.99

$

Usually ships in 2-12 days

0

865

Briggs & Stratton 841312

Cover-Air Guide
(Superseded to 843768)

$39.99

$

Usually ships in 2-12 days

0

879

Briggs & Stratton 842829

Cover-Carburetor

$10.99

$

Usually ships in 2-12 days

0

1036

Label-Emissions

Note: (Available From A Briggs & Stratton Authorized Dealer)

$

$

Not available

1122

Briggs & Stratton 93410

Screw

Note: (Blower Housing Adapter)

$7.99

$

In Stock, only 1 left!

0

1334

Briggs & Stratton 841233

SCREW

Note: (Air Guide)

$3.49

$

In Stock, Qty 20+

0
