38176 - Toro CCR Powerlite Snow Thrower (SN: 089000001 - 089999999) (1998) ENGINE & WHEEL ASSEMBLY Parts Diagram

CCR Powerlite Snow Thrower

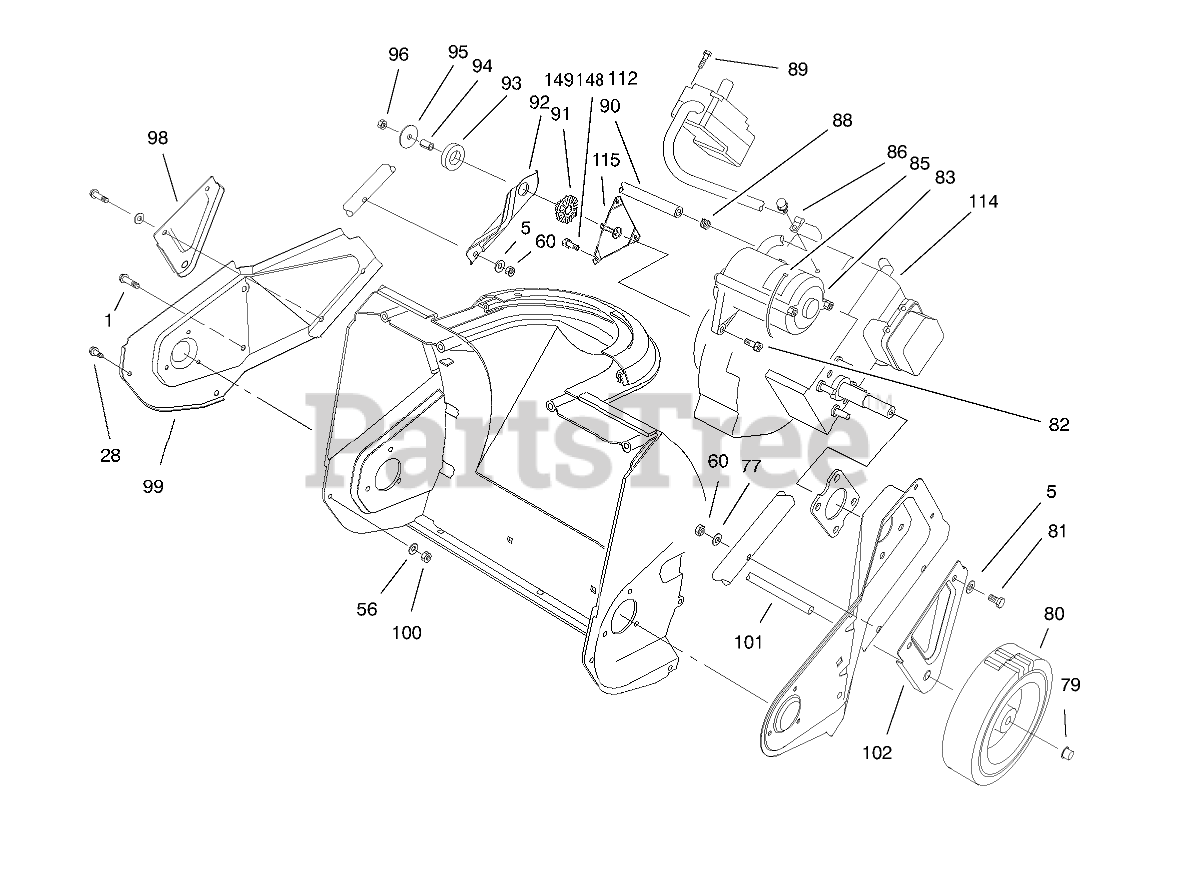

ENGINE & WHEEL ASSEMBLY Parts Diagram

  • Title
1

Toro 46-8094

SCREW-PLASTIC
(Superseded to 137-3101)

$1.49

$

In Stock, Qty 20+

0

5

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

$1.49

$

In Stock, only 3 left!

0

56

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

60

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

77

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 13

0

79

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

80

Toro 23-3250

WHEEL

$20.99

$

In Stock, Qty 5

0

81

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

82

Toro 80-0700

SCREW-HH, TORX

$2.99

$

In Stock, only 2 left!

0

83

Toro 77-0402

ASM-Switch Housing
(Superseded to 105-2953)

$

$

Not available

85

Toro 250-7

TIE-CABLE

$7.49

$

In Stock, only 1 left!

0

86

Toro 2412-91

CLAMP

$3.99

$

In Stock, only 2 left!

0

88

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

89

Toro 32144-27

SCREW-PLASTITE

$7.49

$

Usually ships in 3-6 days

0

90

Toro 49-2483

LINE-GAS

$

$

Not available

91

Toro 75-9100

BUSHING-ISOLATOR

$11.99

$

Usually ships in 3-6 days

0

92

Toro 75-8980

Support-Engine
(Superseded to 75-8980-03)

$

$

Not available

93

Toro 95-1903

RING-ISOLATOR

$3.49

$

Usually ships in 3-6 days

0

94

Toro 80-0650

SPACER-TUBULAR

$5.49

$

Usually ships in 3-6 days

0

95

Toro 3256-58

WASHER-FLAT
(Superseded to 3256-55)

$5.49

$

In Stock, Qty 11

0

96

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0

98

Toro 75-8900

Bracket-Wheel
(Superseded to 75-8900-03)

$

$

Not available

99

Toro 75-8820

Sideplate-RH
(Superseded to 75-8820-03)

$73.99

$

In Stock, only 1 left!

0

100

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

101

$

$

Not available

102

Toro 75-8910

Bracket-Wheel
(Superseded to 75-8910-03)

$11.99

$

Usually ships in 3-6 days

0

112

Toro 94-2789

SCREW

$

$

Not available

114

Engine-Briggs and Stratton 084232-0121-e1

$

$

Not available

115

Toro 92-6012

BRACKET AND STUD ASM

$12.99

$

Usually ships in 3-6 days

0

148

Toro 92-6031

SCREW

$

$

Not available

149

Toro 3255-10

WASHER-LOCK / EXT

$

$

Not available
