38176 - Toro CCR Powerlite Snow Thrower (SN: 089000001 - 089999999) (1998) CARBURATOR NO. 640086 Parts Diagram

CCR Powerlite Snow Thrower

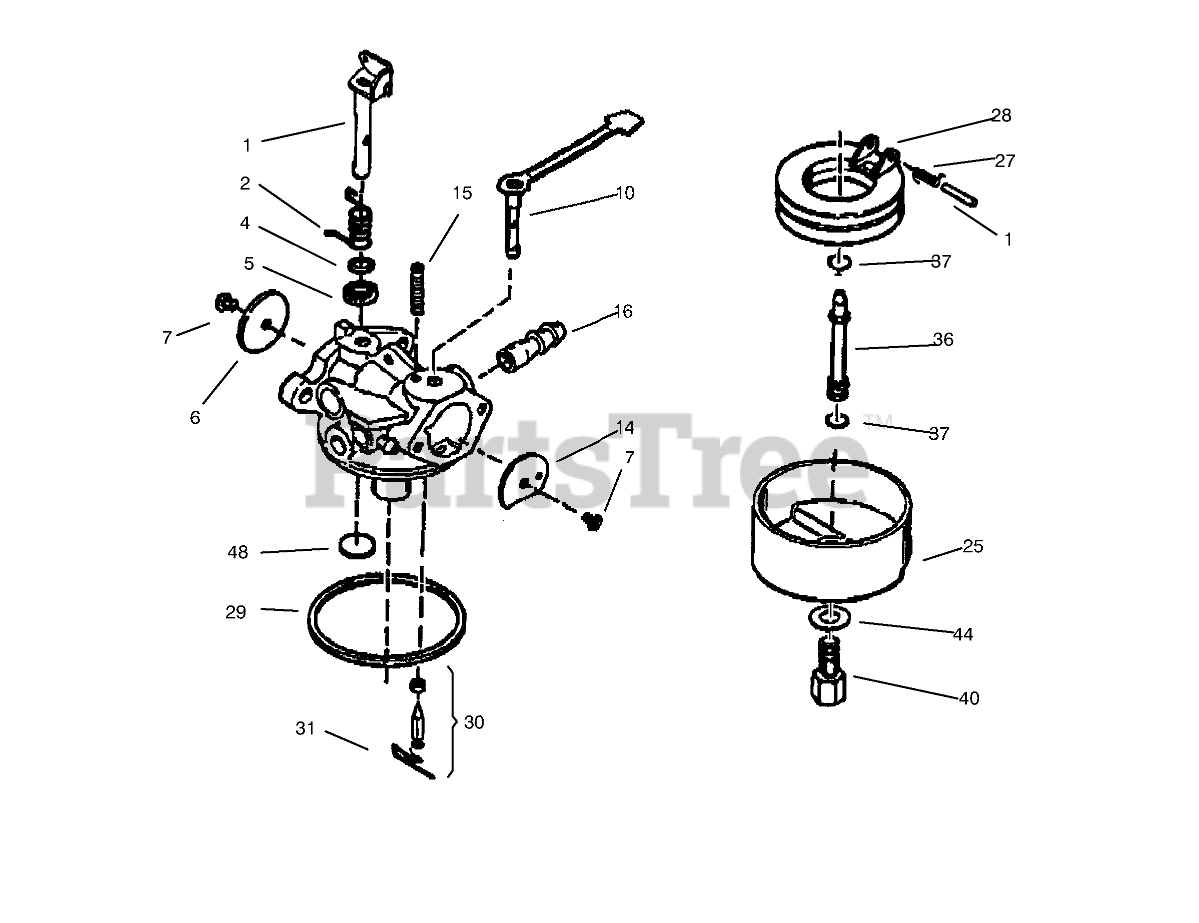

CARBURATOR NO. 640086 Parts Diagram

  • Title

1

Tecumseh 632166A

Throttle Shaft and Lever ASM

$5.49

$

Usually ships in 3-12 days

0

2

Tecumseh 632169

Spring-Trottle, Return

$1.99

$

Usually ships in 3-12 days

0

4

Tecumseh 631184

Washer-Seal, Dust

$1.99

$

In Stock, Qty 16

0

5

Tecumseh 631183

Seal-Dust

$1.99

$

In Stock, Qty 7

0

6

Tecumseh 631621

Shutter-Throttle

$1.99

$

Usually ships in 3-12 days

0

7

Tecumseh 650506

Screw-Shutter

$1.49

$

In Stock, Qty 14

0

10

Tecumseh 632553

Choke Shaft and Lever ASM

$

$

Not available

14

Tecumseh 631815

Shutter-choke

$1.99

$

In Stock, only 3 left!

0

15

Tecumseh 630735

Spring-Positioning, Choke

$1.99

$

In Stock, only 4 left!

0

16

Tecumseh 632164

Fitting-Fuel

$3.99

$

In Stock, only 1 left!

0

25

Tecumseh 631700

Bowl Float

$7.49

$

In Stock, Qty 5

0

26

Tecumseh 632386

Spring-Float, Dampening

$1.49

$

Usually ships in 3-12 days

0

27

Tecumseh 631024

Shaft-Float

$1.99

$

In Stock, Qty 10

0

28

Tecumseh 632019

Float
(Superseded to 632019A)

$7.49

$

In Stock, Qty 7

0

29

Tecumseh 631028

O Ring-Bowl, Float
(Superseded to 631028A)

$2.49

$

In Stock, Qty 14

0

30

Tecumseh 631021

Inlet Needle, Seat & Clip (Incl. ref. #31)
(Superseded to 631021B)

$6.99

$

In Stock, Qty 10

0

31

Tecumseh 631022

Clip-Spring

$1.99

$

In Stock, only 4 left!

0

36

Tecumseh 640080

Tube-Nozzle, Main

$6.99

$

In Stock, only 2 left!

0

37

Tecumseh 632547

O-Ring

$4.49

$

In Stock, Qty 20+

0

40

Tecumseh 640087

Nut-Bowl, High Speed

$7.49

$

In Stock, only 1 left!

0

44

Tecumseh 27110

Washer-Bowl Nut
(Superseded to 27110A)

$2.49

$

In Stock, Qty 6

0

48

Tecumseh 631027

Plug-Welch, Atmospheric Vent

$1.99

$

In Stock, only 4 left!

0
