38176 - Toro CCR Powerlite Snow Thrower (SN: 079000001 - 079999999) (1997) STARTER MOTOR ASSEMBLY & SWITCH HOUSING Parts Diagram

CCR Powerlite Snow Thrower

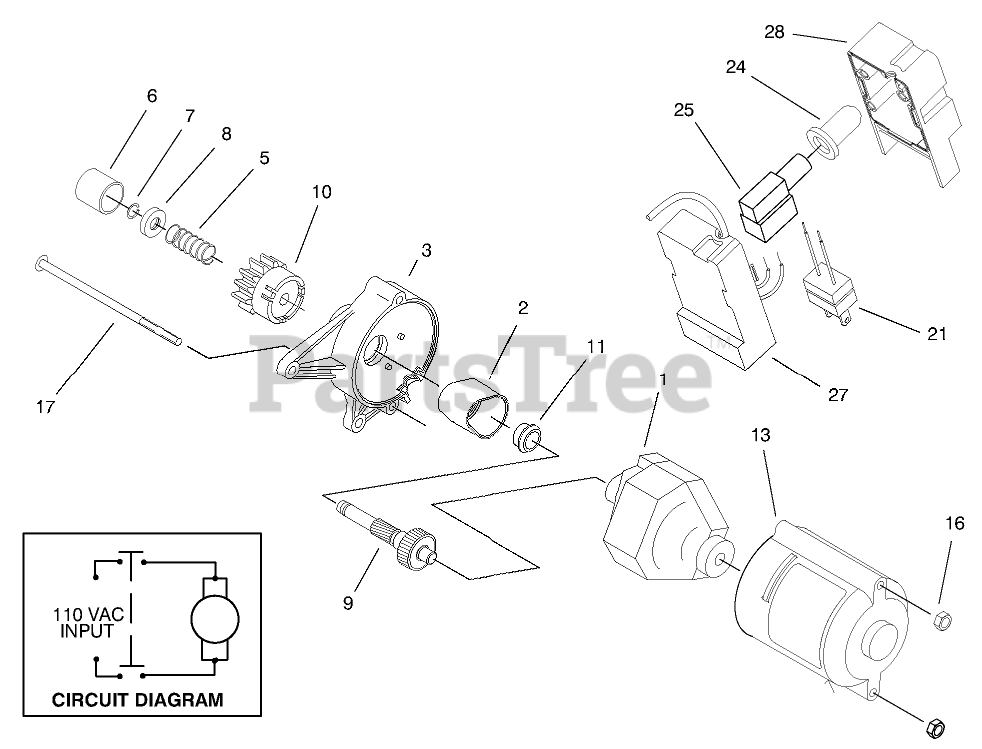

STARTER MOTOR ASSEMBLY & SWITCH HOUSING Parts Diagram

  • Title

1

Toro 70-7802

STARTER MOTOR ASM

$

$

Not available

2

Toro 70-7850

COVER-GEAR

$11.99

$

Usually ships in 3-6 days

0

3

Toro 70-7810

Housing-Starter
(Superseded to 100-3443)

$27.99

$

In Stock, Qty 8

0

5

Toro 61-4690

SPRING

$

$

Not available

6

Toro 70-7890

CAP-PINION

$2.99

$

In Stock, only 1 left!

0

7

Toro 61-4680

RING-LOCK

$1.99

$

In Stock, Qty 20+

0

8

Toro 61-4670

PINION STOP

$14.99

$

In Stock, only 4 left!

0

9

Toro 92-6003

Asm-shaft & Gear
(Superseded to 105-8831)

$116.99

$

Usually ships in 3-6 days

0

10

Toro 84-5240

PINION ASM

$

$

Not available

11

Toro 70-7900

BUSHING

$3.49

$

In Stock, only 1 left!

0

13

Toro 70-7820

HOUSING COVER

$

$

Not available

16

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 32144-101

SCREW

$1.99

$

In Stock, only 4 left!

0

21

Toro 94-9933

PLUG-POWER

$7.99

$

In Stock, only 1 left!

0

24

Toro 36-8350

BOOT-SWITCH

$10.99

$

In Stock, Qty 6

0

25

Toro 36-8340

SWITCH-STARTER

$29.99

$

In Stock, only 4 left!

0

27

Toro 80-3730

OBS BASE X
(Superseded to 98-2253)

$

$

Not available

28

Toro 80-3740

Cap-Switch Housing
(Superseded to 100-3442)

$12.99

$

Usually ships in 3-6 days

0
