38176 - Toro CCR Powerlite Snow Thrower (SN: 079000001 - 079999999) (1997) CHUTE ASSEMBLY Parts Diagram

CCR Powerlite Snow Thrower

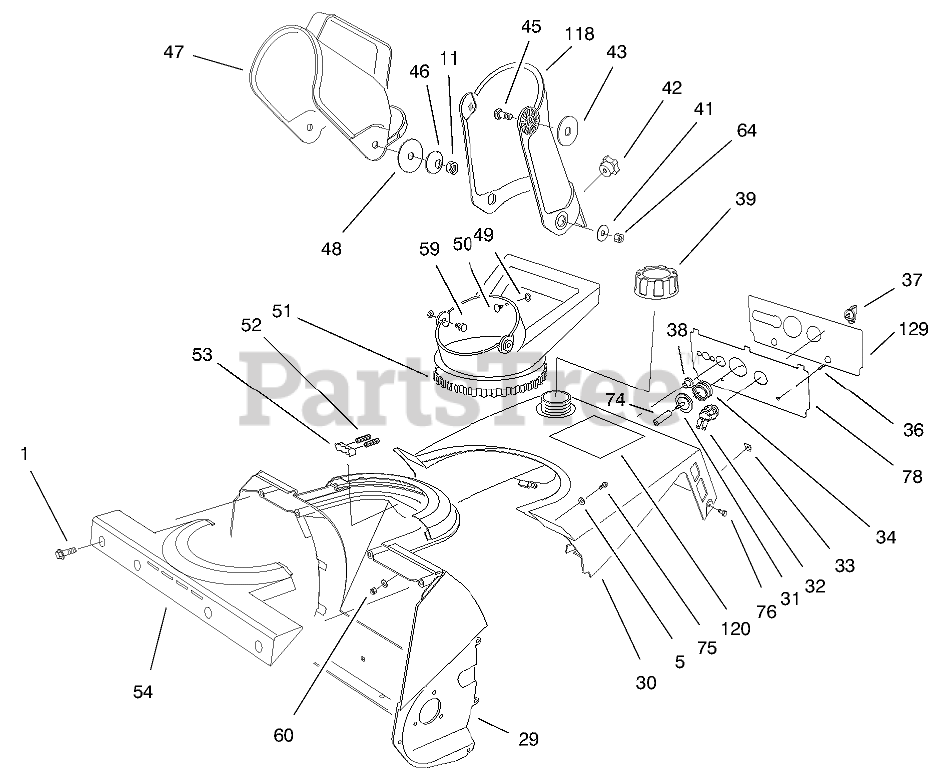

CHUTE ASSEMBLY Parts Diagram

  • Title
1

Toro 46-8094

SCREW-PLASTIC
(Superseded to 137-3101)

$1.49

$

In Stock, Qty 7

0

5

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 14

0

29

Toro 75-8660

HOUSING

$174.99

$

Usually ships in 3-6 days

0

30

Toro 75-8800

Shroud-Upper
(Superseded to 105-2994)

$164.99

$

In Stock, only 2 left!

0

31

Toro 44-2750

BODY-PRIMER

$8.99

$

In Stock, Qty 20+

0

32

Toro 40-5940

SWITCH

$15.99

$

In Stock, only 1 left!

0

33

$3.99

$

In Stock, only 2 left!

0

34

Toro 66-7460

BULB-PRIMER

$6.49

$

In Stock, Qty 20+

0

36

Toro 32144-53

SCREW-SHWH, THREAD FORMING

$3.49

$

In Stock, Qty 10

0

37

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

38

Toro 23-7470

GUIDE-ROPE, STARTER

$20.99

$

Usually ships in 3-6 days

0

39

Toro 55-3573

CAP-FUEL ASM
(Superseded to 104-4133)

$14.99

$

In Stock, only 1 left!

0

41

Toro 3256-81

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

42

Toro 233-67

KNOB-CHUTE

$8.99

$

In Stock, Qty 8

0

43

Toro 80-0640

Washer-Rubber
(Superseded to 95-1905)

$2.99

$

In Stock, Qty 8

0

45

Toro 3230-2

BOLT-CARR

$1.49

$

Usually ships in 3-6 days

0

46

Toro 3290-340

WASHER-BELLEVILLE

$7.99

$

In Stock, Qty 10

0

47

Toro 75-8770

DEFLECTOR-CHUTE

$31.99

$

Usually ships in 3-6 days

0

48

Toro 3256-68

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

49

Toro 32115-15

PUSHNUT-RETAINER, BOLT

$1.49

$

In Stock, Qty 20+

0

50

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

51

Toro 75-8670

HANDLE-CHUTE

$46.99

$

Usually ships in 3-6 days

0

52

Toro 75-9170

SPRING-COMPRESSION

$0.99

$

In Stock, Qty 20+

0

53

Toro 75-9160

DETENT-CHUTE

$6.99

$

In Stock, Qty 8

0

54

Toro 75-8650

RETAINER-CHUTE

$54.99

$

Usually ships in 3-6 days

0

59

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

60

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

64

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

74

Toro 44-3173

HOSE-PRIMER

$4.99

$

In Stock, only 1 left!

0

75

Toro 3250-32

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

76

Toro 32144-89

SCREW-THREAD FORMING

$1.99

$

In Stock, Qty 6

0

78

Toro 75-9030

Panel-Control
(Superseded to 75-9030-03)

$

$

Not available

118

Toro 75-8762

CHUTE
(Superseded to 115-5661)

$

$

Not available

120

Toro 80-0690

DECAL - POWERLITE EL.

$18.99

$

Usually ships in 3-6 days

0

129

Toro 94-2564

DECAL - CONTROL PANEL

$

$

Not available
