38176 - Toro CCR Powerlite Snow Thrower (SN: 020000001 - 029999999) (1992) PULLEY & BELT COVER ASSEMBLY Parts Diagram

CCR Powerlite Snow Thrower

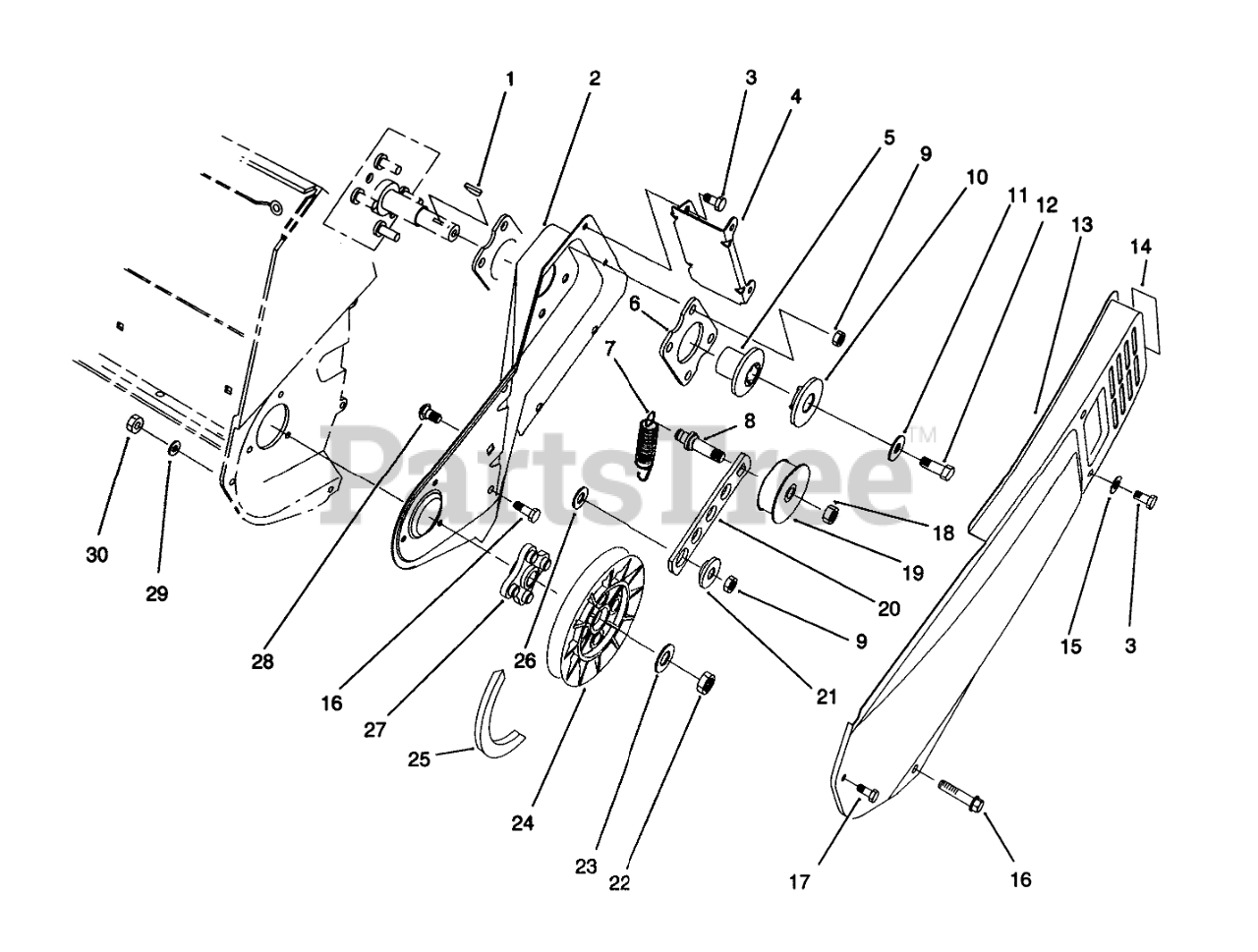

PULLEY & BELT COVER ASSEMBLY Parts Diagram

  • Title
1

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, Qty 10

0

2

Toro 75-8810

Sideplate-LH
(Superseded to 75-8810-03)

$

$

Not available

3

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

4

Toro 75-8870

Bracket-Cover
(Superseded to 75-8870-03)

$7.49

$

Usually ships in 3-6 days

0

5

Toro 71-5050

Hub-HALF SHEAVE

$54.99

$

Usually ships in 3-6 days

0

6

Toro 71-5290

Plate Engine
(Superseded to 71-5290-03)

$6.99

$

In Stock, only 1 left!

0

7

Toro 75-9020

SPRING-EXTENSION

$7.99

$

In Stock, only 4 left!

0

8

Toro 75-8720

PIN-IDLER

$10.99

$

In Stock, only 2 left!

0

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

10

Toro 71-5060

CAP-HALF SHEAVE

$13.99

$

Usually ships in 3-6 days

0

11

Toro 3256-71

WASHER-FLAT

$1.49

$

In Stock, Qty 7

0

12

Toro 3235-6

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

13

Toro 75-8830

Cover-Belt
(Superseded to 75-8830-03)

$70.99

$

In Stock, only 2 left!

0

14

Toro 84-5250

Decal-Hot
(Superseded to 94-2561)

$

$

Not available

15

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 46-8094

SCREW-PLASTIC
(Superseded to 137-3101)

$1.49

$

In Stock, Qty 7

0

17

$1.49

$

In Stock, only 3 left!

0

18

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 18

0

19

Toro 71-5260

PULLEY-IDLER

$28.99

$

In Stock, Qty 5

0

20

Toro 75-9050

ARM-IDLER

$

$

Not available

21

Toro 75-8700

BUSHING-IDLER

$3.49

$

In Stock, Qty 7

0

22

Toro 3296-38

NUT-LOCK, NI

$2.99

$

In Stock, only 4 left!

0

23

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

24

Toro 75-8750

PULLEY-DRIVEN

$

$

Not available

25

Toro 75-9010

V-BELT

$19.99

$

In Stock, Qty 10

0

26

Toro 25-5640

WASHER

$1.99

$

Usually ships in 3-6 days

0

27

$

$

Not available

28

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

29

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
