38176 - Toro CCR Powerlite Snow Thrower (SN: 020000001 - 029999999) (1992) ENGINE & WHEEL ASSEMBLY Parts Diagram

CCR Powerlite Snow Thrower

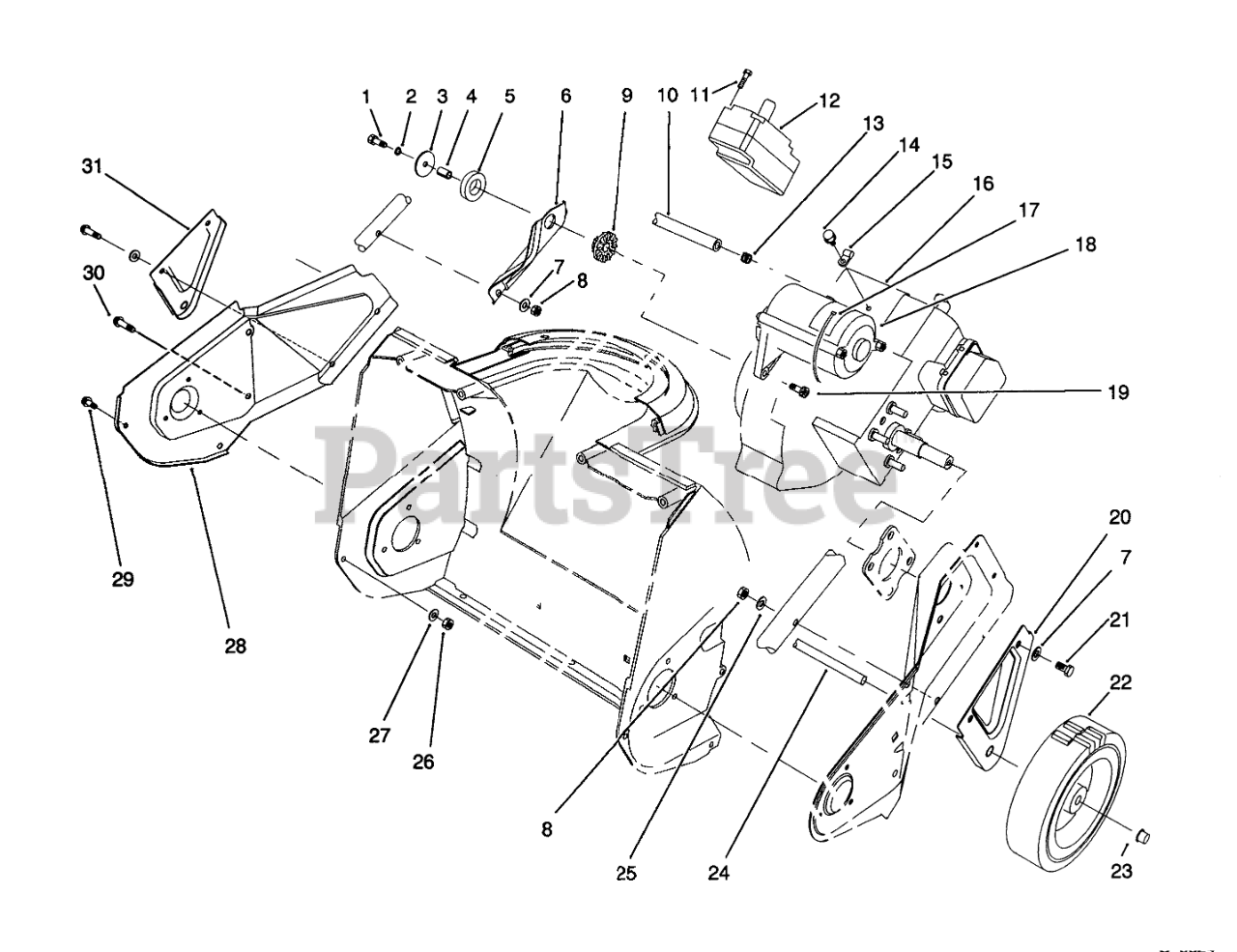

ENGINE & WHEEL ASSEMBLY Parts Diagram

  • Title
1

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

2

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

3

Toro 3256-58

WASHER-FLAT
(Superseded to 3256-55)

$5.49

$

In Stock, Qty 11

0

4

Toro 80-0650

SPACER-TUBULAR

$5.49

$

Usually ships in 3-6 days

0

5

Toro 80-0620

Ring-Isolator
(Superseded to 95-1903)

$3.49

$

Usually ships in 3-6 days

0

6

Toro 75-8980

Support-Engine
(Superseded to 75-8980-03)

$

$

Not available

7

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

9

Toro 75-9100

BUSHING-ISOLATOR

$11.99

$

Usually ships in 3-6 days

0

10

Toro 49-2483

LINE-GAS

$

$

Not available

11

Toro 32144-27

SCREW-PLASTITE

$7.49

$

Usually ships in 3-6 days

0

12

Motor Switch Housing Ass-y (Model No. 38176 Only)

$

$

Not available

13

Toro 2412-86

Clamp
(Superseded to 2412-98)

$1.49

$

In Stock, Qty 20+

0

14

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 15

0

15

Toro 2412-91

CLAMP

$3.99

$

In Stock, only 2 left!

0

16

Engine (HSK 600-1668P)(Model No. 38171)

$

$

Not available

16

Engine (HSK600-1669P)(Model No. 38176)

$

$

Not available

17

Toro 250-7

TIE-CABLE

$7.49

$

In Stock, only 1 left!

0

18

Toro 80-4700

Starter Motor Assembly
(Superseded to 105-2953)

$

$

Not available

19

Toro 3274-88

Screw-Thread Forming
(Superseded to 80-0700)

$2.99

$

In Stock, only 2 left!

0

20

Toro 75-8910

Bracket-Wheel
(Superseded to 75-8910-03)

$11.99

$

Usually ships in 3-6 days

0

21

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Toro 23-3250

WHEEL

$20.99

$

In Stock, Qty 5

0

23

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

24

$

$

Not available

25

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 13

0

26

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

27

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro 75-8820

Sideplate-RH
(Superseded to 75-8820-03)

$73.99

$

In Stock, only 1 left!

0

29

$1.49

$

In Stock, only 3 left!

0

30

Toro 46-8094

SCREW-PLASTIC
(Superseded to 137-3101)

$1.49

$

In Stock, Qty 20+

0

31

Toro 75-8900

Bracket-Wheel
(Superseded to 75-8900-03)

$

$

Not available
