38175 - Toro CCR Powerlite Snow Thrower (SN: 079000001 - 079999999) (1997) AUGER ASSEMBLY Parts Diagram

CCR Powerlite Snow Thrower

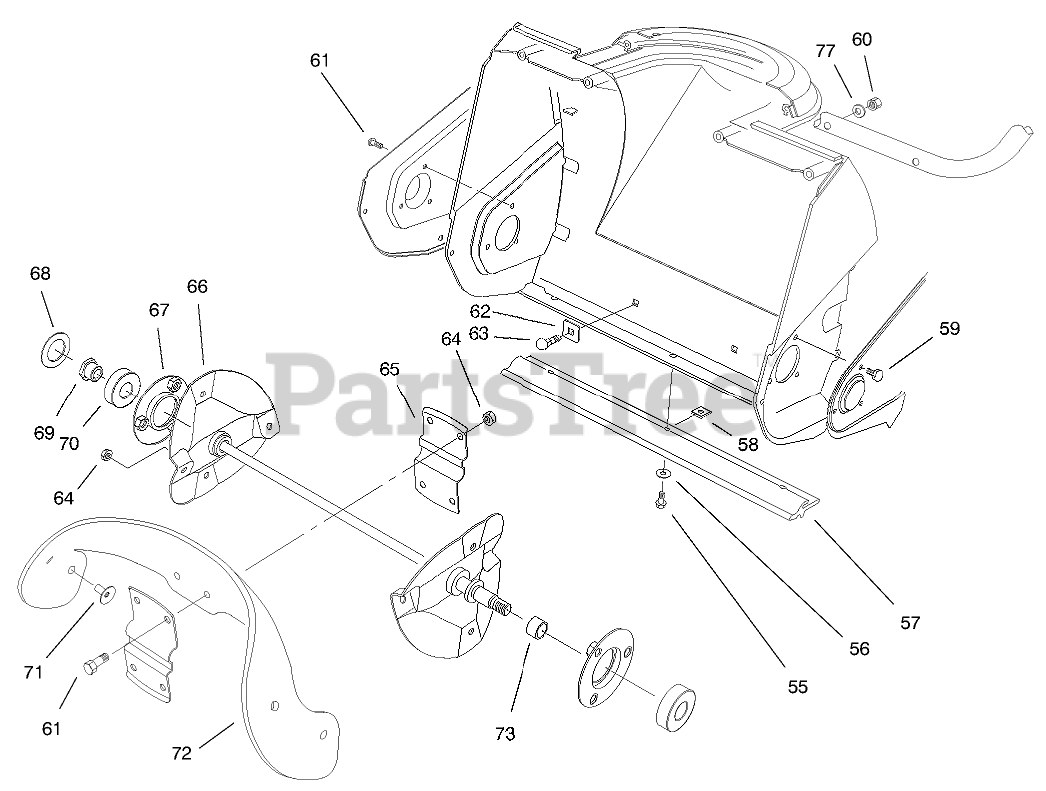

AUGER ASSEMBLY Parts Diagram

  • Title

55

Toro 32144-34

SCREW-HWHTF

$4.99

$

In Stock, Qty 7

0

56

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

57

Toro 75-8780

SCRAPER

$23.99

$

In Stock, only 1 left!

0

58

Toro 32115-19

NUT-CLIP, U

$2.99

$

Usually ships in 3-6 days

0

59

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

60

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

61

Toro 3234-33

SCREW-HHF

$0.99

$

In Stock, Qty 10

0

62

Toro 75-9040

WASHER-SQUARE

$1.49

$

In Stock, Qty 10

0

63

Toro 3229-5

SCREW-CARR

$1.49

$

In Stock, Qty 5

0

64

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

65

Toro 75-8880

Support-Rotor
(Superseded to 75-8880-03)

$23.99

$

Usually ships in 3-6 days

0

66

Toro 75-8840

Rotor
(Superseded to 75-8840-03)

$173.99

$

Usually ships in 3-6 days

0

67

Toro 75-9080

FLANGE BEARING ASM
(Superseded to 120-9825)

$12.99

$

In Stock, only 1 left!

0

68

Toro 75-9180

WASHER-RUBBER

$6.49

$

In Stock, only 2 left!

0

69

Toro 75-8690

NUT

$

$

Not available

70

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 18

0

71

Toro 84-1970

SCREW
(Superseded to 136-7183)

$1.99

$

In Stock, Qty 7

0

72

Toro 84-1980

BLADE-ROTOR

$37.99

$

Usually ships in 3-6 days

0

73

Toro 75-8710

SPACER

$1.99

$

In Stock, only 2 left!

0

77

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 14

0
