38175 - Toro CCR Powerlite Snow Thrower (SN: 039000001 - 039999999) (1993) CHUTE ASSEMBLY Parts Diagram

CCR Powerlite Snow Thrower

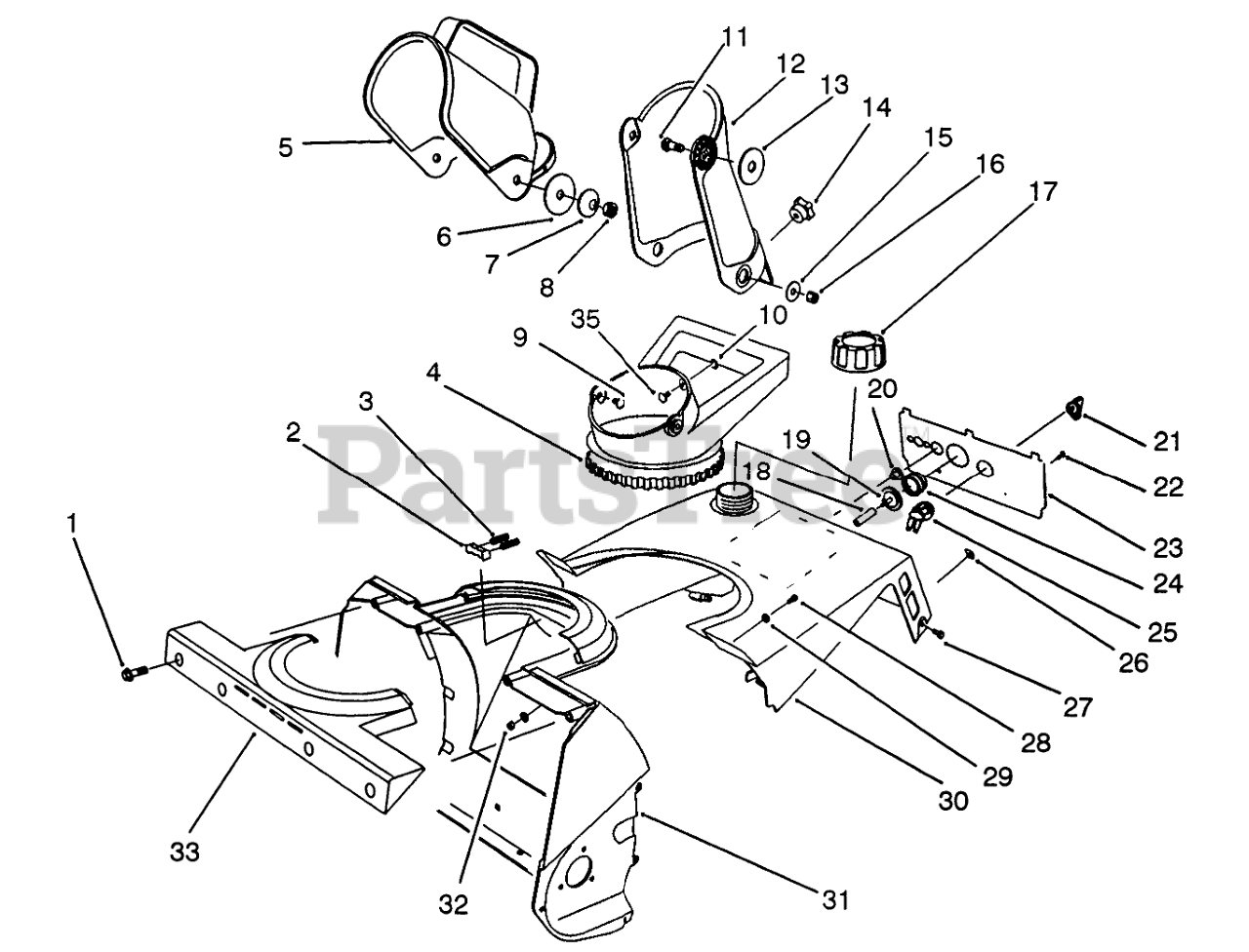

CHUTE ASSEMBLY Parts Diagram

  • Title
1

Toro 46-8094

SCREW-PLASTIC
(Superseded to 137-3101)

$1.49

$

In Stock, Qty 20+

0

2

Toro 75-9160

DETENT-CHUTE

$6.99

$

In Stock, Qty 6

0

3

Toro 75-9170

SPRING-COMPRESSION

$0.99

$

In Stock, Qty 20+

0

4

Toro 75-8670

HANDLE-CHUTE

$54.99

$

Usually ships in 3-6 days

0

5

Toro 75-8770

DEFLECTOR-CHUTE

$36.99

$

Usually ships in 3-6 days

0

6

Toro 3256-68

WASHER-FLAT

$2.99

$

In Stock, Qty 20+

0

7

Toro 3290-340

WASHER-BELLEVILLE

$7.99

$

In Stock, Qty 10

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 32115-15

PUSHNUT-RETAINER, BOLT

$1.49

$

In Stock, Qty 20+

0

11

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 14

0

12

Toro 75-8760

Chute
(Superseded to 115-5659)

$59.99

$

Usually ships in 3-6 days

0

13

Toro 80-0640

Washer-Rubber
(Superseded to 95-1905)

$2.99

$

In Stock, Qty 8

0

14

Toro 233-67

KNOB-CHUTE

$8.99

$

In Stock, Qty 8

0

15

Toro 3256-81

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 55-3573

CAP-FUEL ASM
(Superseded to 104-4133)

$16.99

$

In Stock, Qty 17

0

18

Toro 44-3173

HOSE-PRIMER

$5.49

$

In Stock, Qty 20+

0

19

Toro 44-2750

BODY-PRIMER

$8.99

$

In Stock, Qty 20+

0

20

Toro 23-7470

GUIDE-ROPE, STARTER

$23.99

$

Usually ships in 3-6 days

0

21

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 20+

0

22

Toro 32144-53

SCREW-SHWH, THREAD FORMING

$3.99

$

In Stock, Qty 10

0

23

Toro 75-9140

CNTRL PNL/SILK SCRN

$

$

Not available

Toro 75-9150

Panel-Control (Model No. 38175 Only)

Note: Not illustrated

$

$

Not available

24

Toro 66-7460

BULB-PRIMER

$6.49

$

In Stock, Qty 20+

0

25

Toro 40-5940

SWITCH

$15.99

$

In Stock, Qty 18

0

26

$4.49

$

In Stock, only 2 left!

0

27

Toro 32144-89

SCREW-THREAD FORMING

$1.99

$

In Stock, Qty 6

0

28

Toro 283250-32

Screw-Pan Hd.

$

$

Currently unavailable

29

Toro 293256-1

Washer-Flat

$

$

Currently unavailable

30

Toro 3075-8800

Shroud-Upper (Model 38170)

$

$

Currently unavailable

Toro 75-8801

Shroud-Upper (Model 38175)
(Superseded to 16-9009)

Note: Not illustrated

$

$

Not available

31

Toro 75-8660

HOUSING

$214.99

$

Usually ships in 3-6 days

0

32

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

33

Toro 75-8650

RETAINER-CHUTE

$63.99

$

Usually ships in 3-6 days

0

35

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0
