38173 - Toro CCR Powerlite Snow Thrower (SN: 250000001 - 250999999) (2005) ENGINE, SIDE PLATE AND WHEEL ASSEMBLY Parts Diagram

CCR Powerlite Snow Thrower

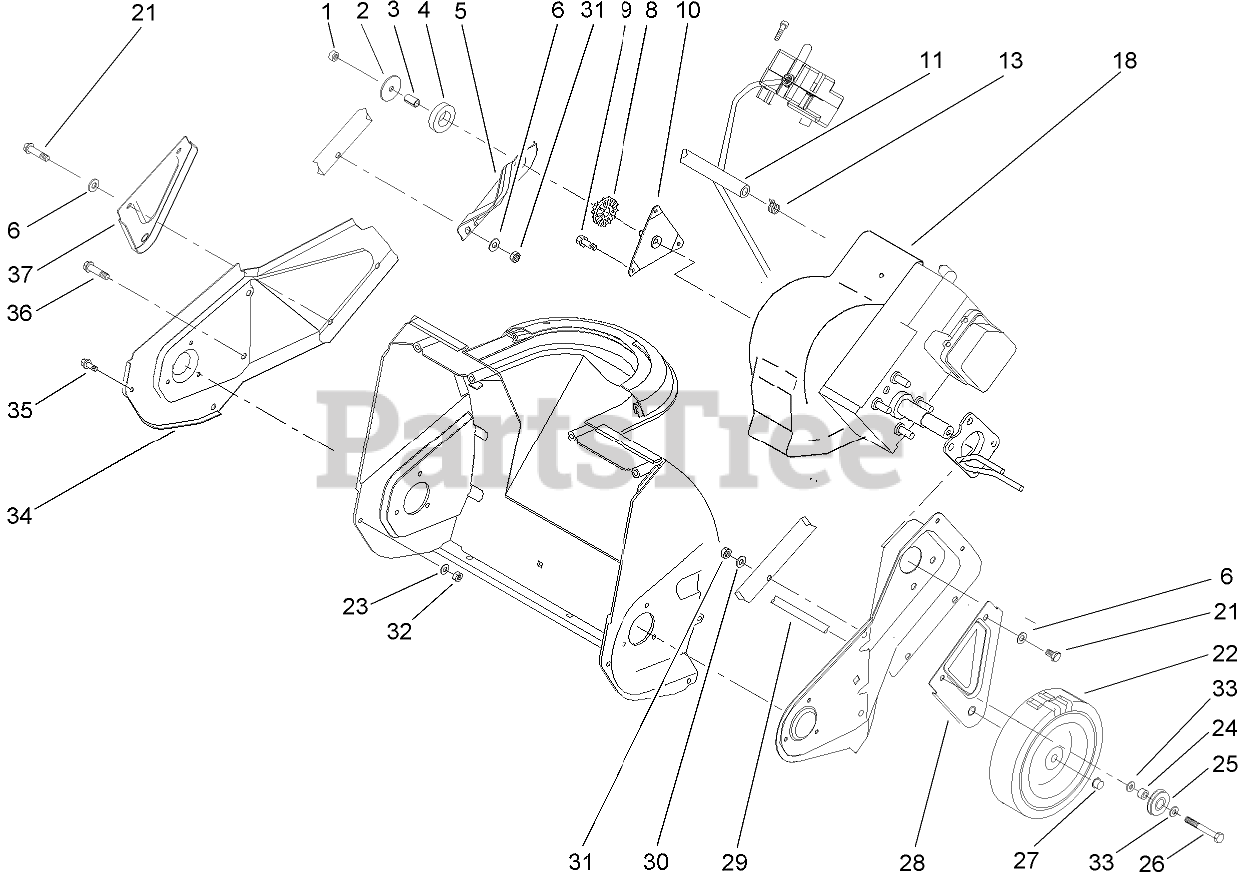

ENGINE, SIDE PLATE AND WHEEL ASSEMBLY Parts Diagram

  • Title
1

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

2

Toro 3256-58

WASHER-FLAT
(Superseded to 3256-55)

$5.49

$

In Stock, only 1 left!

0

3

Toro 80-0650

SPACER-TUBULAR

$2.99

$

Usually ships in 3-6 days

0

4

Toro 95-1903

RING-ISOLATOR

$3.49

$

Usually ships in 3-6 days

0

5

Toro 75-8980-03

BRACKET-SUPPORT, ENGINE

$28.99

$

Usually ships in 3-6 days

0

6

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 75-9100

BUSHING-ISOLATOR

$10.99

$

Usually ships in 3-6 days

0

9

Toro 94-2789

SCREW

$1.49

$

Usually ships in 3-6 days

0

10

Toro 92-6012

BRACKET AND STUD ASM

$11.99

$

Usually ships in 3-6 days

0

11

Toro 49-2483

LINE-GAS

$

$

Not available

13

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

18

ENGINE-TECUMSEH, HSK635-1723C

Note: Not serviced separately

$

$

Not available

21

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Toro 23-3250

WHEEL

$18.99

$

In Stock, Qty 7

0

23

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 55-9370

SPACER-BLADE, ROTOR

$2.99

$

In Stock, Qty 20+

0

25

Toro 95-7949

CABLE-PULLEY

$14.99

$

Usually ships in 3-6 days

0

26

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

27

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

28

Toro 75-8910-03

BRACKET-WHEEL, LH

$10.99

$

Usually ships in 3-6 days

0

29

$

$

Not available

30

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 14

0

31

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

32

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

33

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

34

Toro 75-8820-03

PLATE-SIDE, RH

$62.99

$

In Stock, only 1 left!

0

35

$1.49

$

In Stock, only 3 left!

0

36

Toro 46-8094

SCREW-PLASTIC
(Superseded to 137-3101)

$1.49

$

In Stock, Qty 7

0

37

Toro 75-8900-03

BRACKET-WHEEL, RH

$

$

Not available
