38173 - Toro CCR Powerlite Snow Thrower (SN: 250000001 - 250999999) (2005) CARBURETOR ASSEMBLY NO. 640086 TECUMSEH HSK635 TYPE 1723C Parts Diagram

CCR Powerlite Snow Thrower

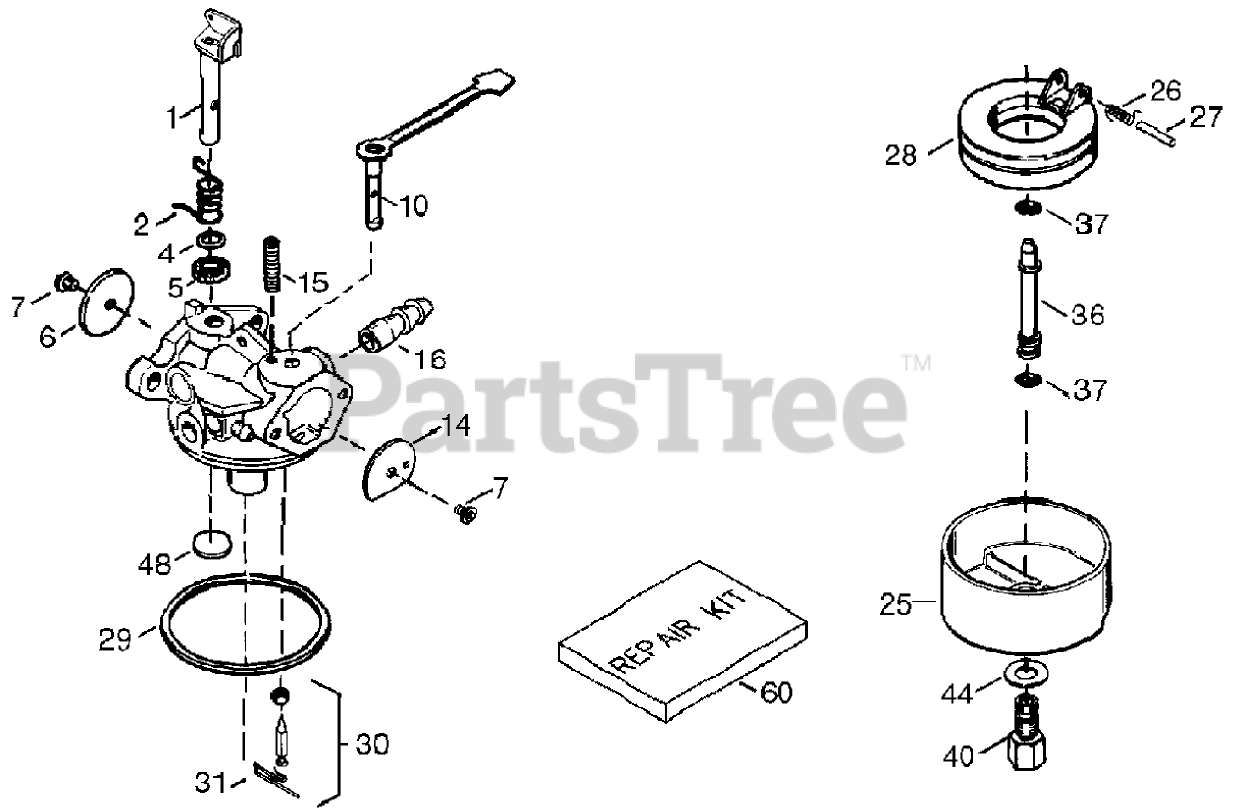

CARBURETOR ASSEMBLY NO. 640086 TECUMSEH HSK635 TYPE 1723C Parts Diagram

  • Title

Tecumseh 640086A

Carburetor (Incl. 184 of Engine Parts List)

$106.99

$

In Stock, only 1 left!

0

1

Tecumseh 632166A

Throttle Shaft and Lever ASM

$5.49

$

Usually ships in 3-12 days

0

2

Tecumseh 632169

Spring-Trottle, Return

$1.99

$

Usually ships in 3-12 days

0

4

Tecumseh 631184

Washer-Seal, Dust

$1.99

$

In Stock, Qty 17

0

5

Tecumseh 631183

Seal-Dust

$1.99

$

In Stock, Qty 12

0

6

Tecumseh 631616

Throttle-Shutter

$1.99

$

Usually ships in 3-12 days

0

7

Tecumseh 650506

Screw-Shutter

$1.49

$

In Stock, Qty 16

0

10

Tecumseh 632553

Choke Shaft and Lever ASM

$

$

Not available

14

Tecumseh 31837

Shutter-Choke

$1.99

$

In Stock, only 1 left!

0

15

Tecumseh 630735

Spring-Positioning, Choke

$1.99

$

In Stock, only 4 left!

0

16

Tecumseh 632164

Fitting-Fuel

$3.99

$

In Stock, only 1 left!

0

25

Tecumseh 631867

Bowl-Float (no drain)

$3.49

$

In Stock, Qty 12

0

26

Tecumseh 632386

Spring-Float, Dampening

$1.49

$

Usually ships in 3-12 days

0

27

Tecumseh 631024

Shaft-Float

$1.99

$

In Stock, Qty 11

0

28

Tecumseh 632019

Float
(Superseded to 632019A)

$7.49

$

In Stock, Qty 10

0

29

Tecumseh 631028

O Ring-Bowl, Float
(Superseded to 631028A)

$2.49

$

In Stock, Qty 9

0

30

Tecumseh 631021

Inlet Needle, Seat & Clip (Incl. 31)
(Superseded to 631021B)

$6.99

$

In Stock, Qty 19

0

31

Tecumseh 631022

Clip-Spring

$1.99

$

In Stock, only 4 left!

0

36

Tecumseh 640080

Tube-Nozzle, Main

$6.99

$

In Stock, only 2 left!

0

37

$4.49

$

In Stock, Qty 20+

0

40

Tecumseh 640301

Nut-Bowl, High Speed

$

$

Not available

44

Tecumseh 27110A

Washer-Nut, Bowl

$2.49

$

Usually ships in 3-12 days

0

48

Tecumseh 631027

Plug-Welch, Atmospheric Vent

$1.99

$

In Stock, Qty 5

0

60

Tecumseh 632760

Repair Kit
(Superseded to 632760B)

$27.99

$

In Stock, Qty 9

0
