38173 - Toro CCR Powerlite Snow Thrower (SN: 210000001 - 210999999) (2001) RECOIL STARTER ASSEMBLY NO. 590743 TECUMSEH MODEL NO. HSK635 TYPE 1723A Parts Diagram

CCR Powerlite Snow Thrower

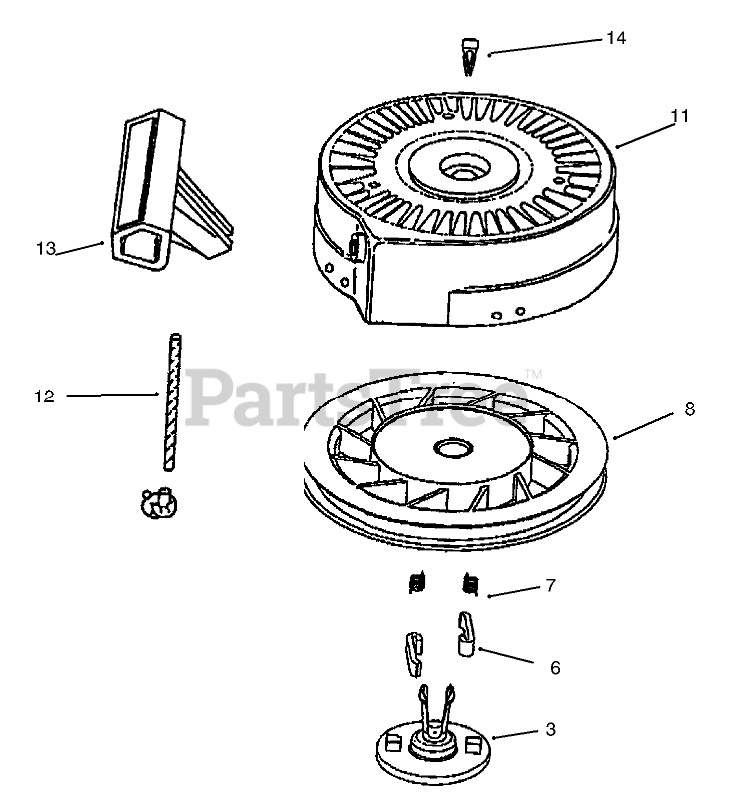

RECOIL STARTER ASSEMBLY NO. 590743 TECUMSEH MODEL NO. HSK635 TYPE 1723A Parts Diagram

  • Title
3

Tecumseh 590740

Retainer

Note: Original Tecumseh Part

$9.49

$

In Stock, Qty 12

0

6

Tecumseh 590616

Dog-Starter

Note: Original Tecumseh Part

$7.49

$

Usually ships in 3-12 days

0

7

Tecumseh 590617

Spring-Dog

Note: Original Tecumseh Part

$3.99

$

Usually ships in 3-12 days

0

8

Tecumseh 590645A

Pulley and Rewind Spring ASM

Note: Original Tecumseh Part

$

$

Not available

11

Tecumseh 590643

Starter Housing ASM
(Superseded to 590643A)

Note: Original Tecumseh Part

$38.99

$

In Stock, only 1 left!

0

12

Tecumseh 590535

Rope-Starter (98 cut to length)

Note: Original Tecumseh Part

$9.49

$

In Stock, Qty 13

0

13

Tecumseh 590701

Handle-Starter (STD)

Note: Original Tecumseh Part

$6.49

$

In Stock, only 2 left!

0

14

Tecumseh 590760

Clip-Spring

Note: Original Tecumseh Part

$4.99

$

In Stock, only 2 left!

0
