38173 - Toro CCR Powerlite Snow Thrower (SN: 200000001 - 200999999) (2000) HANDLE & LOWER SHROUD ASSEMBLY Parts Diagram

CCR Powerlite Snow Thrower

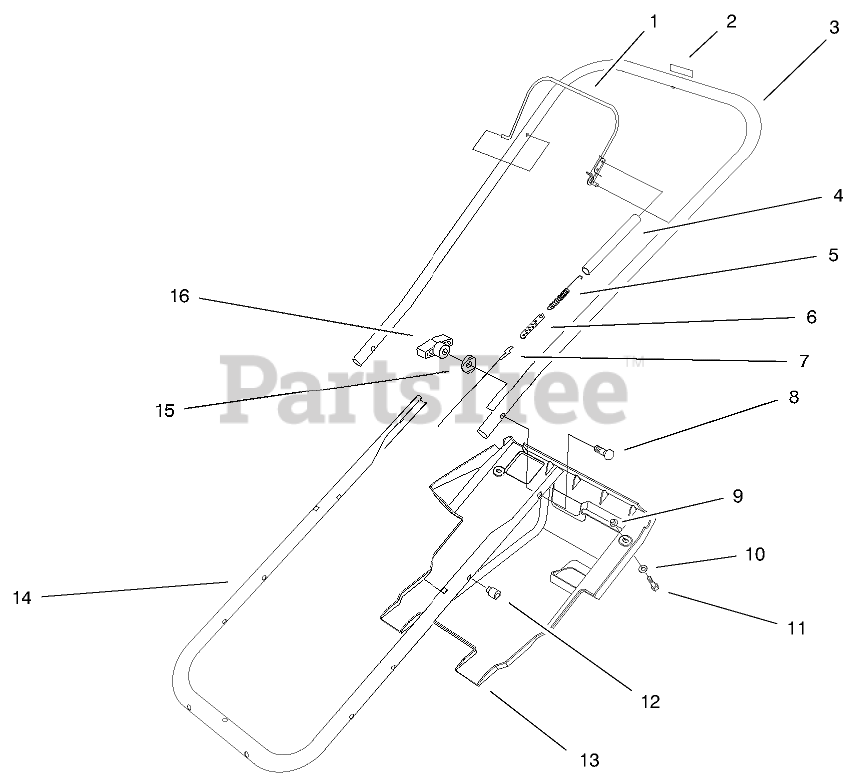

HANDLE & LOWER SHROUD ASSEMBLY Parts Diagram

  • Title

1

Toro 95-7943-03

BAIL ASM

$

$

Not available

2

Toro 94-2577

DECAL-DRIVE, ROTOR

$4.49

$

In Stock, only 1 left!

0

3

Toro 100-5453

UPPER HANDLE ASM

$

$

Not available

4

Toro 71-5530

COVER-SPRING

$4.99

$

In Stock, Qty 10

0

5

Toro 71-5480

SPRING-CLUTCH

$6.99

$

In Stock, Qty 11

0

6

Toro 71-5330

ADJUSTER-CABLE, CLUTCH
(Superseded to 136-7126)

$6.99

$

In Stock, Qty 16

0

7

Toro 94-9949

CABLE-CLUTCH
(Superseded to 115-5682)

$13.99

$

In Stock, Qty 18

0

8

Toro 17-9426

SCREW-HANDLE

$3.99

$

In Stock, Qty 8

0

9

Toro 605120

NUT-CLIP

$3.99

$

In Stock, Qty 9

0

10

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 32144-34

SCREW-HWHTF

$4.99

$

In Stock, Qty 7

0

12

Toro 32115-17

NUT-EXPANSION

$1.49

$

In Stock, Qty 15

0

13

Toro 75-8790

SHROUD

$

$

Not available

14

Toro 75-9060-03

TUBE-FRAME

$87.99

$

Usually ships in 3-6 days

0

15

Toro 75-9130

WASHER-CURVED
(Superseded to 107-3844)

$1.49

$

In Stock, Qty 20+

0

16

Toro 98-7134

KNOB-HANDLE

$2.99

$

In Stock, Qty 16

0
