38172 - Toro CCR Powerlite Snow Thrower (SN: 270000001 - 270999999) (2007) CHUTE AND UPPER SHROUD ASSEMBLY Parts Diagram

CCR Powerlite Snow Thrower

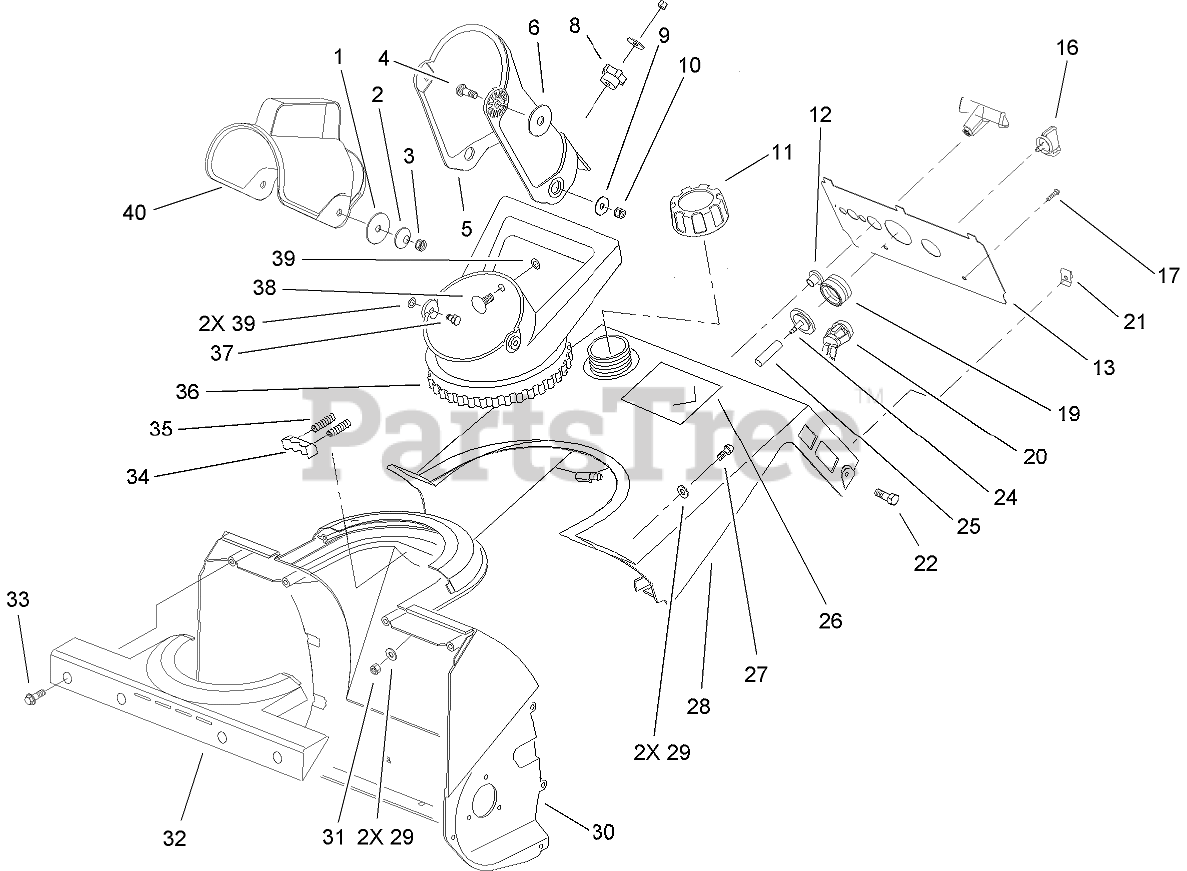

CHUTE AND UPPER SHROUD ASSEMBLY Parts Diagram

  • Title
1

Toro 3256-68

WASHER-FLAT

$2.99

$

In Stock, Qty 20+

0

2

Toro 3290-340

WASHER-BELLEVILLE

$7.99

$

In Stock, Qty 10

0

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 14

0

5

Toro 104-2764

CHUTE
(Superseded to 115-5659)

$59.99

$

Usually ships in 3-6 days

0

6

Toro 95-1905

WASHER-RUBBER

$2.99

$

In Stock, Qty 8

0

8

Toro 233-67

KNOB-CHUTE

$8.99

$

In Stock, Qty 7

0

9

Toro 3256-81

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Toro 104-4133

GAS CAP ASM

$16.99

$

In Stock, Qty 17

0

12

Toro 23-7470

GUIDE-ROPE, STARTER

$23.99

$

Usually ships in 3-6 days

0

13

Toro 104-4938

PANEL-CONTROL
(Superseded to 112-8100)

$31.99

$

Usually ships in 3-6 days

0

16

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 20+

0

17

Toro 32144-53

SCREW-SHWH, THREAD FORMING

$3.99

$

In Stock, Qty 10

0

19

Toro 66-7460

BULB-PRIMER

$6.49

$

In Stock, Qty 20+

0

20

Toro 40-5940

SWITCH

$15.99

$

In Stock, Qty 18

0

21

$4.49

$

In Stock, only 2 left!

0

22

Toro 32144-89

SCREW-THREAD FORMING

$1.99

$

In Stock, Qty 6

0

24

Toro 44-2750

BODY-PRIMER

$8.99

$

In Stock, Qty 20+

0

25

Toro 44-3173

HOSE-PRIMER

$5.49

$

In Stock, Qty 20+

0

26

Toro 108-5081

DECAL-SHROUD

$12.99

$

Usually ships in 3-6 days

0

27

Toro 3250-32

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

28

Toro 105-2994

SHROUD-TANK, GAS UPPER

$192.99

$

In Stock, only 1 left!

0

29

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Toro 75-8660

HOUSING

$214.99

$

Usually ships in 3-6 days

0

31

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

32

Toro 75-8650

RETAINER-CHUTE

$63.99

$

Usually ships in 3-6 days

0

33

Toro 46-8094

SCREW-PLASTIC
(Superseded to 137-3101)

$1.49

$

In Stock, Qty 20+

0

34

Toro 75-9160

DETENT-CHUTE

$6.99

$

In Stock, Qty 5

0

35

Toro 75-9170

SPRING-COMPRESSION

$0.99

$

In Stock, Qty 20+

0

36

Toro 75-8670

HANDLE-CHUTE

$54.99

$

Usually ships in 3-6 days

0

37

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

38

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

39

Toro 32115-15

PUSHNUT-RETAINER, BOLT

$1.49

$

In Stock, Qty 20+

0

40

Toro 75-8770

DEFLECTOR-CHUTE

$36.99

$

Usually ships in 3-6 days

0
