38171 - Toro CCR Powerlite Snow Thrower (SN: 039000001 - 039999999) (1993) HANDLE ASSEMBLY Parts Diagram

CCR Powerlite Snow Thrower

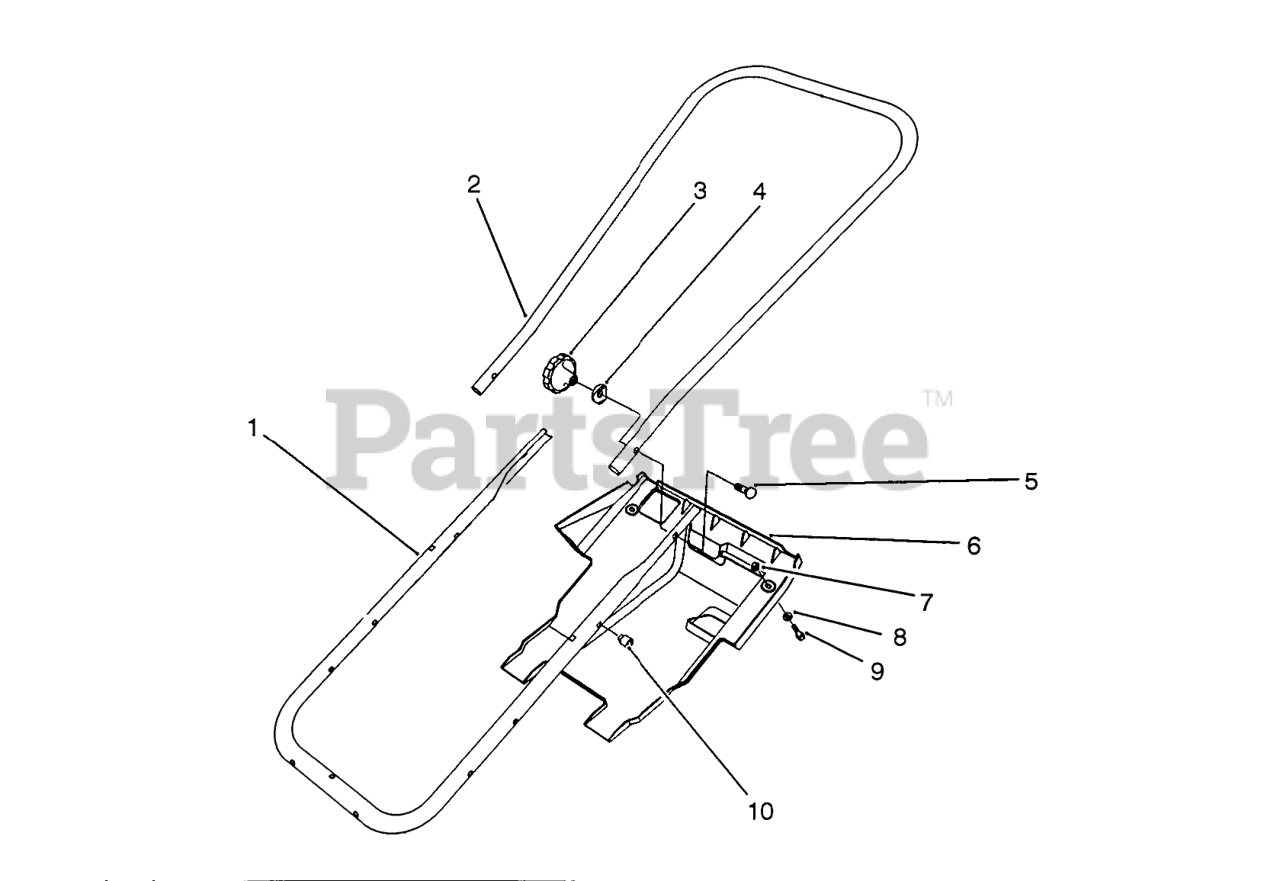

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 75-9060

Tube-Frame
(Superseded to 75-9060-03)

$87.99

$

Usually ships in 3-6 days

0

2

Toro 75-9070

Handle-Upper
(Superseded to 75-9070-03)

$78.99

$

Usually ships in 3-6 days

0

3

Toro 19-4050

KNOB

$17.99

$

In Stock, only 3 left!

0

4

Toro 75-9130

WASHER-CURVED
(Superseded to 107-3844)

$1.49

$

In Stock, Qty 20+

0

5

Toro 17-9426

SCREW-HANDLE

$3.99

$

In Stock, Qty 8

0

6

Toro 75-8790

SHROUD

$

$

Not available

7

Toro 3290-453

Nut-Push
(Superseded to 605120)

$3.99

$

In Stock, Qty 9

0

8

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 32144-34

SCREW-HWHTF

$4.99

$

In Stock, Qty 7

0

10

Toro 32115-17

NUT-EXPANSION

$1.49

$

In Stock, Qty 15

0

Toro 84-5490

Decal-Warning (Model No. 38196)
(Superseded to 61-4790)

Note: Not illustrated

$11.99

$

Usually ships in 3-6 days

0
