38171 - Toro CCR Powerlite Snow Thrower (SN: 020000001 - 029999999) (1992) AUGER ASSEMBLY Parts Diagram

CCR Powerlite Snow Thrower

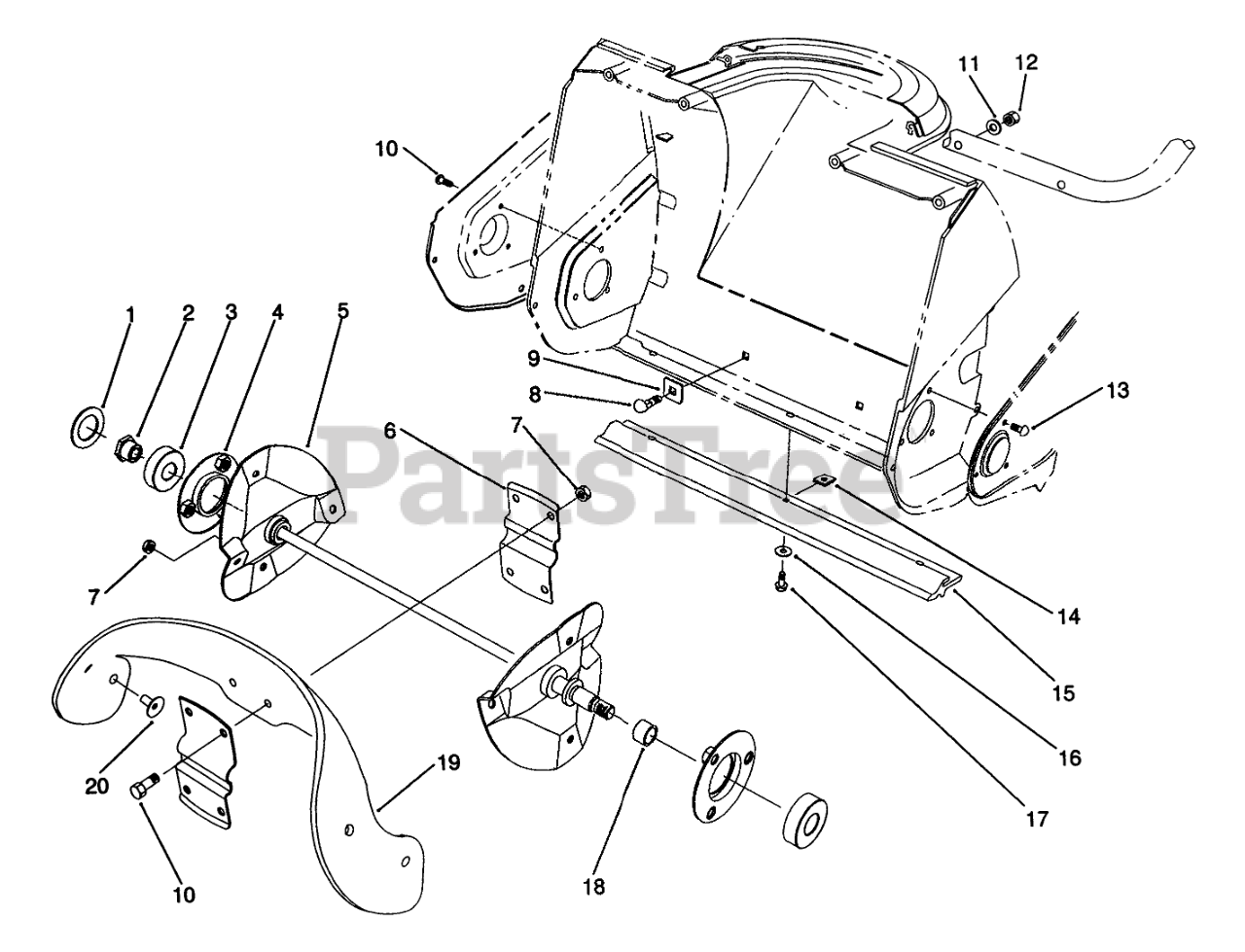

AUGER ASSEMBLY Parts Diagram

  • Title

1

Toro 75-9180

WASHER-RUBBER

$6.49

$

In Stock, only 2 left!

0

2

Toro 75-8690

NUT

$

$

Not available

3

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 18

0

4

Toro 75-9080

FLANGE BEARING ASM
(Superseded to 120-9825)

$12.99

$

In Stock, only 1 left!

0

5

Toro 75-8840

Rotor
(Superseded to 75-8840-03)

$173.99

$

Usually ships in 3-6 days

0

6

Toro 75-8880

Support-Rotor
(Superseded to 75-8880-03)

$23.99

$

Usually ships in 3-6 days

0

7

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 3229-5

SCREW-CARR

$1.49

$

In Stock, Qty 5

0

9

Toro 75-9040

WASHER-SQUARE

$1.49

$

In Stock, Qty 10

0

10

Toro 3234-33

SCREW-HHF

$0.99

$

In Stock, Qty 10

0

11

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 14

0

12

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

13

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro 32115-13

"U" TYPE SPEED NUT

$4.49

$

In Stock, only 2 left!

0

15

Toro 75-8780

SCRAPER

$23.99

$

In Stock, only 1 left!

0

16

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 32144-34

SCREW-HWHTF

$4.99

$

In Stock, Qty 7

0

18

Toro 75-8710

SPACER

$1.99

$

In Stock, only 2 left!

0

19

Toro 84-1980

BLADE-ROTOR

$37.99

$

Usually ships in 3-6 days

0

20

Toro 84-1970

SCREW
(Superseded to 136-7183)

$1.99

$

In Stock, Qty 7

0
