38170 - Toro CCR Powerlite Snow Thrower (SN: 200000001 - 200999999) (2000) MOTOR & SWITCH HOUSING ASSEMBLY (MODEL NO. 38182)(120 VOLT) Parts Diagram

CCR Powerlite Snow Thrower

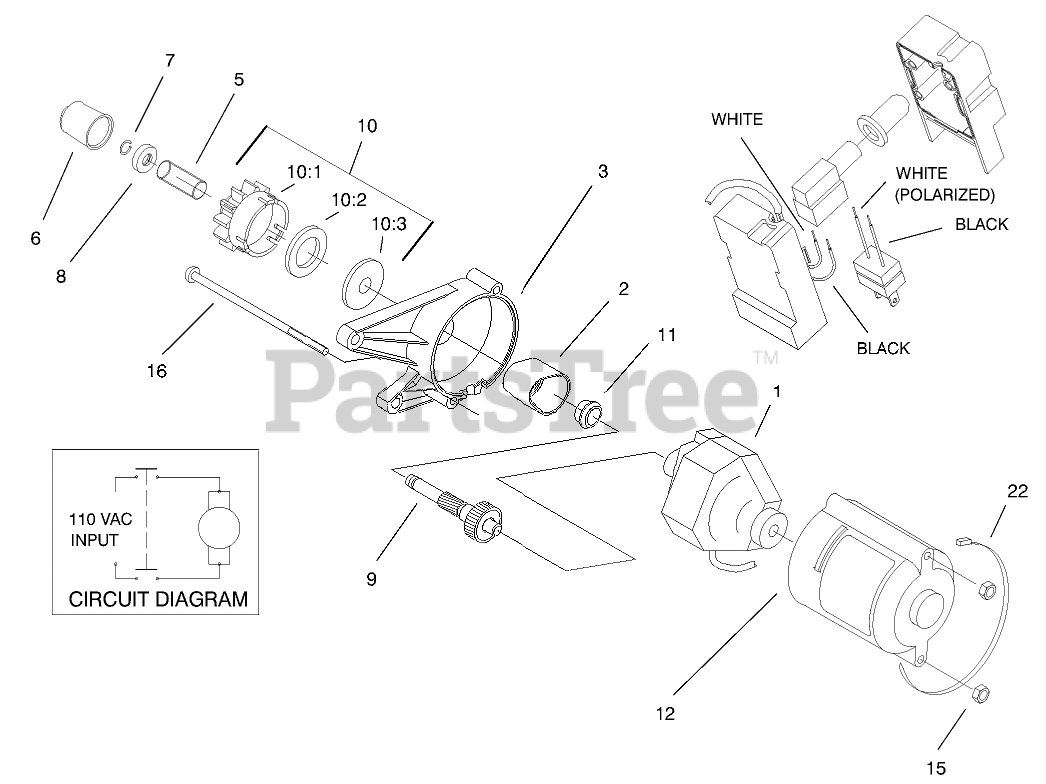

MOTOR & SWITCH HOUSING ASSEMBLY (MODEL NO. 38182)(120 VOLT) Parts Diagram

  • Title

1

Toro 70-7802

Starter Motor Assembly (only on: 38182)

$

$

Not available

2

Toro 70-7850

Cover-Gear (only on: 38182)

$10.99

$

Usually ships in 3-6 days

0

3

Toro 100-3443

Housing-Upper Starter (only on: 38182)

$22.99

$

In Stock, Qty 9

0

5

Toro 61-4690

Spring (only on: 38182)

$

$

Not available

6

Toro 70-7890

Pinion-Cap (only on: 38182)

$2.99

$

In Stock, only 1 left!

0

7

Toro 61-4680

Ring-Lock (only on: 38182)

$1.49

$

In Stock, Qty 20+

0

8

Toro 100-2902

Stop-Pinion (only on: 38182)

$6.99

$

In Stock, Qty 5

0

9

Toro 92-6003

Shaft/Gear ASM-Service (only on: 38182)
(Superseded to 105-8831)

$102.99

$

Usually ships in 3-6 days

0

10

Toro 84-5240

Pinion ASM (R & S)(only on: 38182)

$

$

Not available

10:1

Toro 70-7790

Nut (only on: 38182)

$

$

Not available

10:2

Toro 84-5230

Pinion (only on: 38182)

$19.99

$

In Stock, only 1 left!

0

10:3

Toro 84-5440

Ring-Rubber (only on: 38182)

$10.99

$

In Stock, only 4 left!

0

11

Toro 70-7900

Bushing (only on: 38182)

$3.49

$

In Stock, only 1 left!

0

12

Toro 100-3444

Housing-Lower Starter (only on: 38182)

$35.99

$

Usually ships in 3-6 days

0

15

Toro 3296-2

Nut-Lock Ni (only on: 38182)

$2.49

$

In Stock, Qty 20+

0

16

Toro 32144-101

Screw-Mach (only on: 38182)

$1.49

$

In Stock, only 4 left!

0

22

Toro 250-7

Tie-Cable (only on: 38182)

$6.49

$

In Stock, only 1 left!

0
