38170 - Toro CCR Powerlite Snow Thrower (SN: 200000001 - 200999999) (2000) ENGINE, SIDE PLATE, & WHEEL ASSEMBLY Parts Diagram

CCR Powerlite Snow Thrower

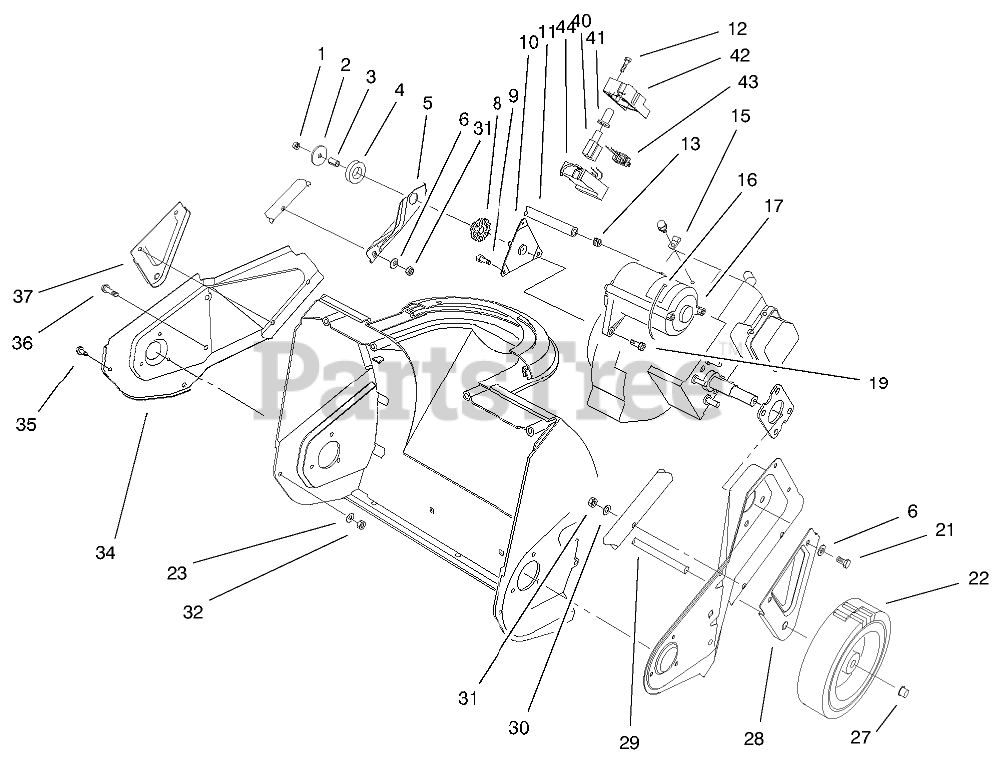

ENGINE, SIDE PLATE, & WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 4 left!

0

2

Toro 3256-58

WASHER-FLAT
(Superseded to 3256-55)

$5.49

$

In Stock, only 1 left!

0

3

Toro 80-0650

SPACER-TUBULAR

$2.99

$

Usually ships in 3-6 days

0

4

Toro 95-1903

RING-ISOLATOR

$3.49

$

Usually ships in 3-6 days

0

5

Toro 75-8980-03

BRACKET-SUPPORT, ENGINE

$28.99

$

Usually ships in 3-6 days

0

6

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 75-9100

BUSHING-ISOLATOR

$10.99

$

Usually ships in 3-6 days

0

9

Toro 94-2789

SCREW

$1.49

$

Usually ships in 3-6 days

0

10

Toro 92-6012

BRACKET AND STUD ASM

$11.99

$

Usually ships in 3-6 days

0

11

Toro 49-2483

LINE-GAS

$

$

Not available

12

Toro 32144-27

Screw-Plastite (only on: 38182)

$6.49

$

In Stock, only 3 left!

0

13

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

15

Toro 2412-91

Clamp R (only on: 38182)

$3.99

$

In Stock, only 2 left!

0

16

Toro 250-7

Tie-Cable (only on: 38182)

$6.49

$

In Stock, only 1 left!

0

17

Toro 77-0402

Starter Motor ASM 120 Volt] (only on: 38182)
(Superseded to 105-2953)

$

$

Not available

19

Toro 80-0700

Screw-Mtg Torx (only on: 38182)

$2.49

$

In Stock, only 2 left!

0

21

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Toro 23-3250

WHEEL

$18.99

$

In Stock, Qty 7

0

23

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

28

Toro 75-8910-03

BRACKET-WHEEL, LH

$10.99

$

Usually ships in 3-6 days

0

29

Toro 27-0062

AXLE

$

$

Not available

30

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 14

0

31

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

32

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

34

Toro 75-8820-03

PLATE-SIDE, RH

$62.99

$

In Stock, only 1 left!

0

35

Toro 32105-23

SCREW

$1.49

$

In Stock, only 3 left!

0

36

Toro 46-8094

SCREW-PLASTIC
(Superseded to 137-3101)

$1.49

$

In Stock, Qty 7

0

37

Toro 75-8900-03

BRACKET-WHEEL, RH

$

$

Not available

40

Toro 36-8340

Switch-Starter (only on: 38182)

$25.99

$

In Stock, only 4 left!

0

41

Toro 36-8350

Boot-Switch (only on: 38182)

$8.99

$

In Stock, Qty 6

0

42

Toro 100-3442

Switch-Cap Housing (only on: 38182)

$10.99

$

Usually ships in 3-6 days

0

43

Toro 94-9933

Plug-Power (only on: 38182)

$6.99

$

In Stock, only 1 left!

0

44

Toro 100-3441

Switch-Base Housing (only on: 38182)

$11.99

$

Usually ships in 3-6 days

0

Toro 28-9170

Cord (only on: 38182)
(Superseded to 106-4741)

Note: Not illustrated

$

$

Not available
