38170 - Toro CCR Powerlite Snow Thrower (SN: 079000001 - 079999999) (1997) RECOIL STARTER NO. 590652 Parts Diagram

CCR Powerlite Snow Thrower

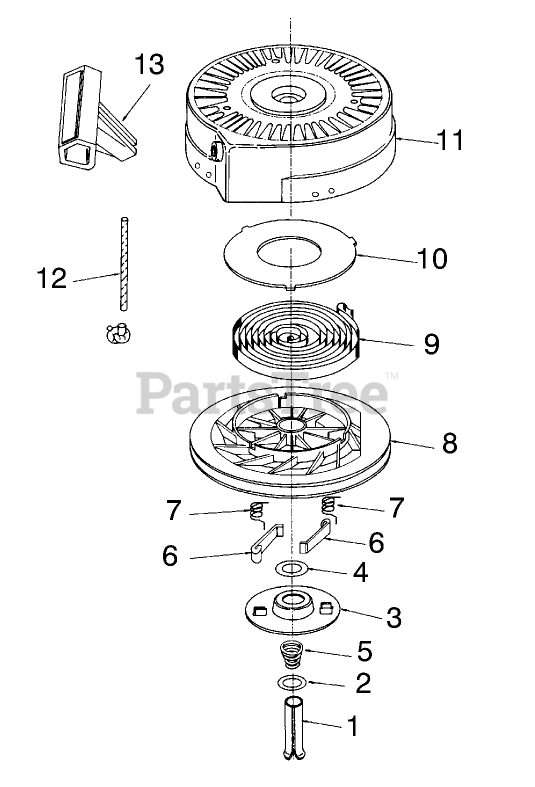

RECOIL STARTER NO. 590652 Parts Diagram

  • Title
1

Tecumseh 590599A

Pin-Spring (Incl. Ref. #4)

$5.49

$

In Stock, only 2 left!

0

2

$1.99

$

In Stock, only 4 left!

0

3

Tecumseh 590615

Retainer

$3.99

$

In Stock, only 2 left!

0

4

$1.99

$

In Stock, only 4 left!

0

5

Tecumseh 590598

Brake Spring

$3.99

$

Usually ships in 3-12 days

0

6

Tecumseh 590616

Dog-Starter

$7.49

$

Usually ships in 3-12 days

0

7

Tecumseh 590617

Spring-Dog

$3.99

$

Usually ships in 3-12 days

0

8

Tecumseh 590413A

Pulley Assembly (Incl. Ref. #9 & 10)

$29.99

$

In Stock, only 2 left!

0

9

Tecumseh 590619

Rewind Spring

$14.99

$

Usually ships in 3-12 days

0

10

Tecumseh 590620

Cover-Spring

$3.99

$

Usually ships in 3-12 days

0

11

Tecumseh 590643

Starter Housing ASM
(Superseded to 590643A)

$38.99

$

In Stock, only 1 left!

0

12

Tecumseh 590535

Rope-Starter (98 cut to length)

$9.49

$

In Stock, Qty 13

0

13

Tecumseh 590452

Handle-Starter
(Superseded to 590701)

$6.49

$

In Stock, only 2 left!

0
