38170 - Toro CCR Powerlite Snow Thrower (SN: 039000001 - 039999999) (1993) STARTER MOTOR ASSEMBLY (MODEL 38175 ONLY) Parts Diagram

CCR Powerlite Snow Thrower

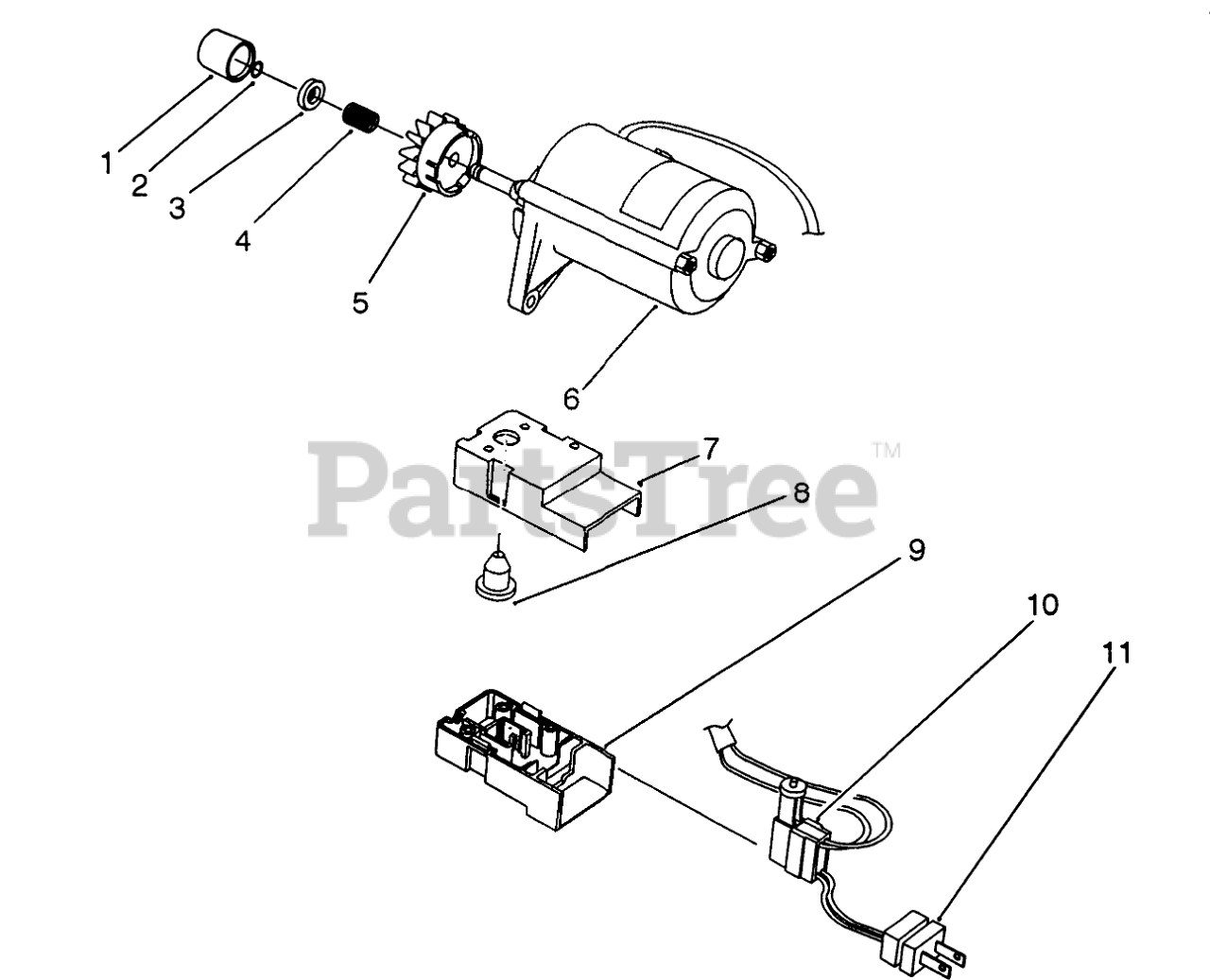

STARTER MOTOR ASSEMBLY (MODEL 38175 ONLY) Parts Diagram

  • Title

1

Toro 70-7890

CAP-PINION

$2.99

$

In Stock, only 1 left!

0

2

Toro 61-4680

RING-LOCK

$1.49

$

In Stock, Qty 20+

0

3

Toro 61-4670

PINION STOP

$13.99

$

In Stock, only 4 left!

0

4

Toro 61-4690

SPRING

$

$

Not available

5

Toro 84-5240

PINION ASM

$

$

Not available

6

Toro 77-0402

ASM-Switch Housing
(Superseded to 105-2953)

$

$

Not available

7

Toro 80-3740

Cap-Switch Housing
(Superseded to 100-3442)

$10.99

$

Usually ships in 3-6 days

0

8

Toro 36-8350

BOOT-SWITCH

$8.99

$

In Stock, Qty 6

0

9

Toro 80-3730

OBS BASE X
(Superseded to 98-2253)

$

$

Not available

10

Toro 36-8340

SWITCH-STARTER

$25.99

$

In Stock, only 4 left!

0

11

Toro 36-8370

Plug
(Superseded to 94-9933)

$6.99

$

In Stock, only 1 left!

0

Cord-7 Ft.

Note: Not illustrated

$

$

Not available

12

Toro 28-9170

CORD
(Superseded to 106-4741)

Note: Not illustrated

$

$

Not available
